2N - 2N IP Audio Kit
Available, delivery time: 2-3 days
Intercom Einbaukit, nur Audio, LAN, Line in/out, max. 16 Ruftasten, GPIO, SIP, PoE
read more
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270
Product information "2N - 2N IP Audio Kit"
Product availability information:
The item is ordered especially for you. The following is non-binding and subject to storage and delivery information from our suppliers:
- In stock: 1
- Expectation: 0
- Replacement time: 11 days
- Last update: 08.09.2025 - subject to prior sale
Zutrittskontrolle & Intercom - IP Türstationen - 2N - 2N IP Audio Kit
Intercom Einbaukit, nur Audio, LAN, Line in/out, max. 16 Ruftasten, GPIO, SIP, PoE
Manufacturer datasheet
Hauptmerkmale

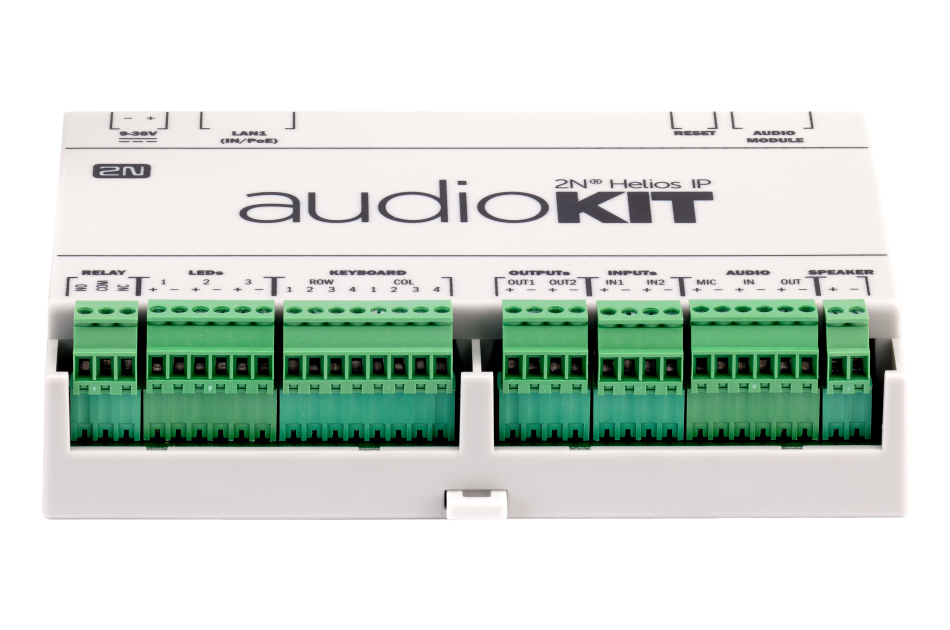

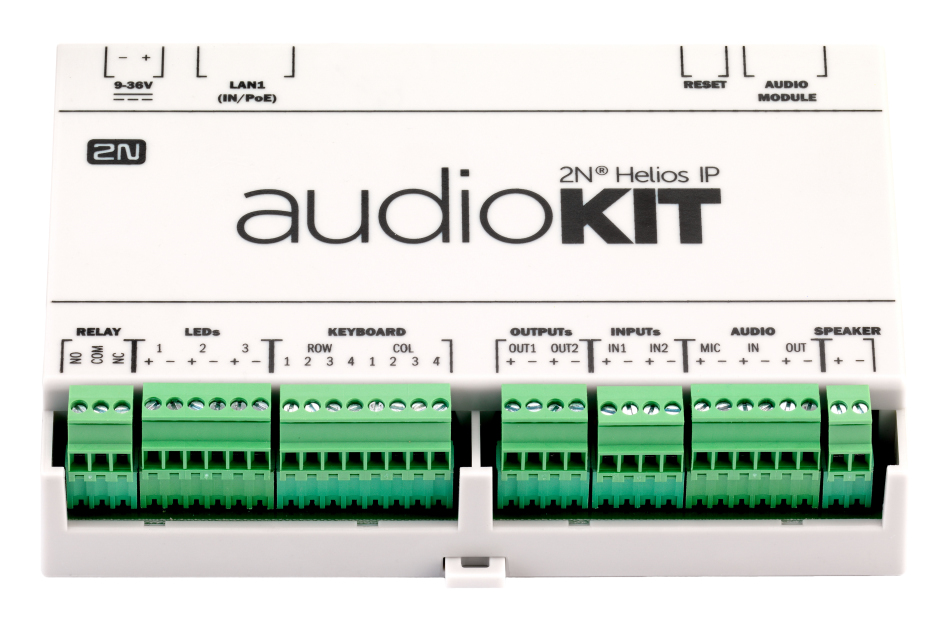

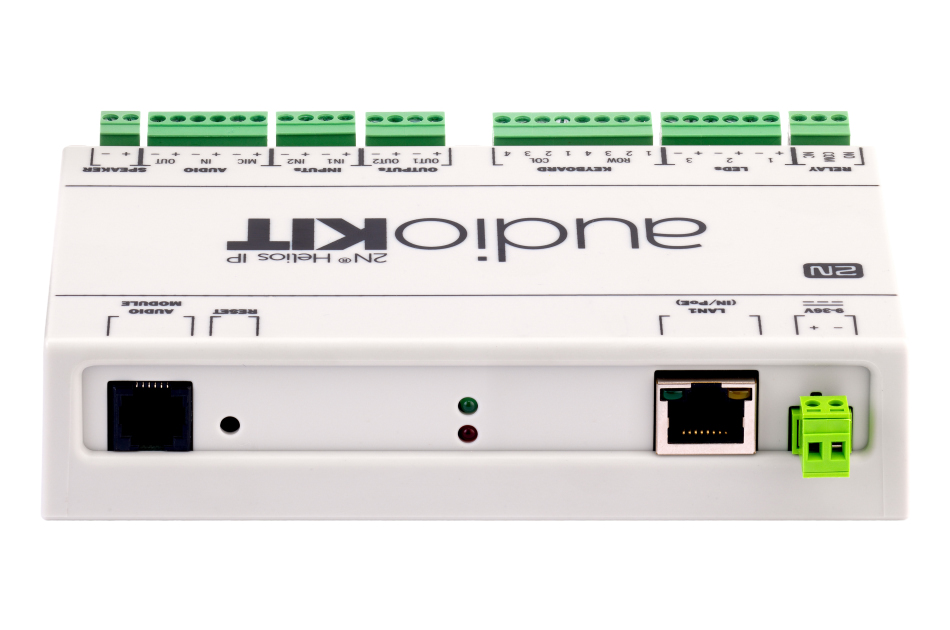

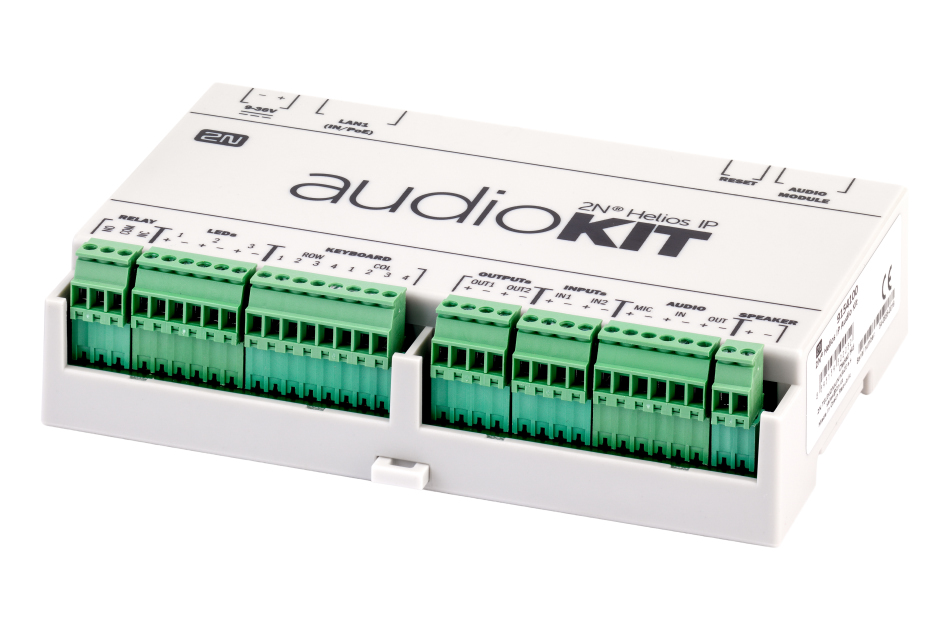

- Audio Intercom Modul mit IP-Technologie
- Zahlreiche Anschlussmöglichkeiten
- Dank SIP 2.0 kein Server erforderlich
- Audio Interface für Lautsprecher/Mikrofon/Line
- 16 Ruftasten oder 4x4 Matrix anschließbar
- Ein Relais und 2 Digitale Ausgänge
- Zwei Digitale Eingänge
- Ausgänge für LED Signalisierung
- Über HTTP-API-Befehle fernsteuerbar
- Stromversogung über 12V DC oder PoE

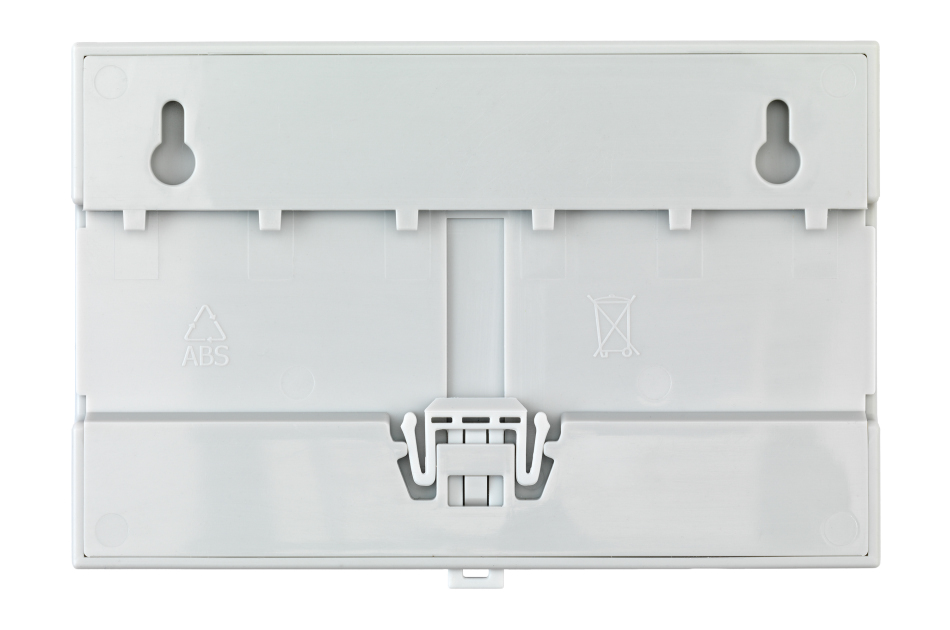

- Einfache Montage DIN-Schiene oder Wand
Specifications
| Display display | 3x output for LED |
| Audio compression | G.711 |
| Color (Housing) | weiß |
| Internal memory | no |
| Camera | no |
| Speaker | External (optional) |
| Microphone | External (Option) |
| Mounting type | Wall,DIN Rail |
| Numeric keypad | optional |
| Call buttons | 16x External (Option) |
| Outputs | 1x Relay |
| Protection | IP20 |
| Series | 2N IP Audio Kit |
| Power supply | 9-36 VDC,Poe |
| Temperature Range (Operating) | -40°C ~ +55°C |
| VoIP Signaling | SIP 2.0 |
| Manufacturers sheet | Download PDF-document |
Login
Specifications
| Display display | 3x output for LED |
| Audio compression | G.711 |
| Color (Housing) | weiß |
| Internal memory | no |
| Camera | no |
| Speaker | External (optional) |
| Microphone | External (Option) |
| Mounting type | Wall,DIN Rail |
| Numeric keypad | optional |
| Call buttons | 16x External (Option) |
| Outputs | 1x Relay |
| Protection | IP20 |
| Series | 2N IP Audio Kit |
| Power supply | 9-36 VDC,Poe |
| Temperature Range (Operating) | -40°C ~ +55°C |
| VoIP Signaling | SIP 2.0 |
| Manufacturers sheet | Download PDF-document |
