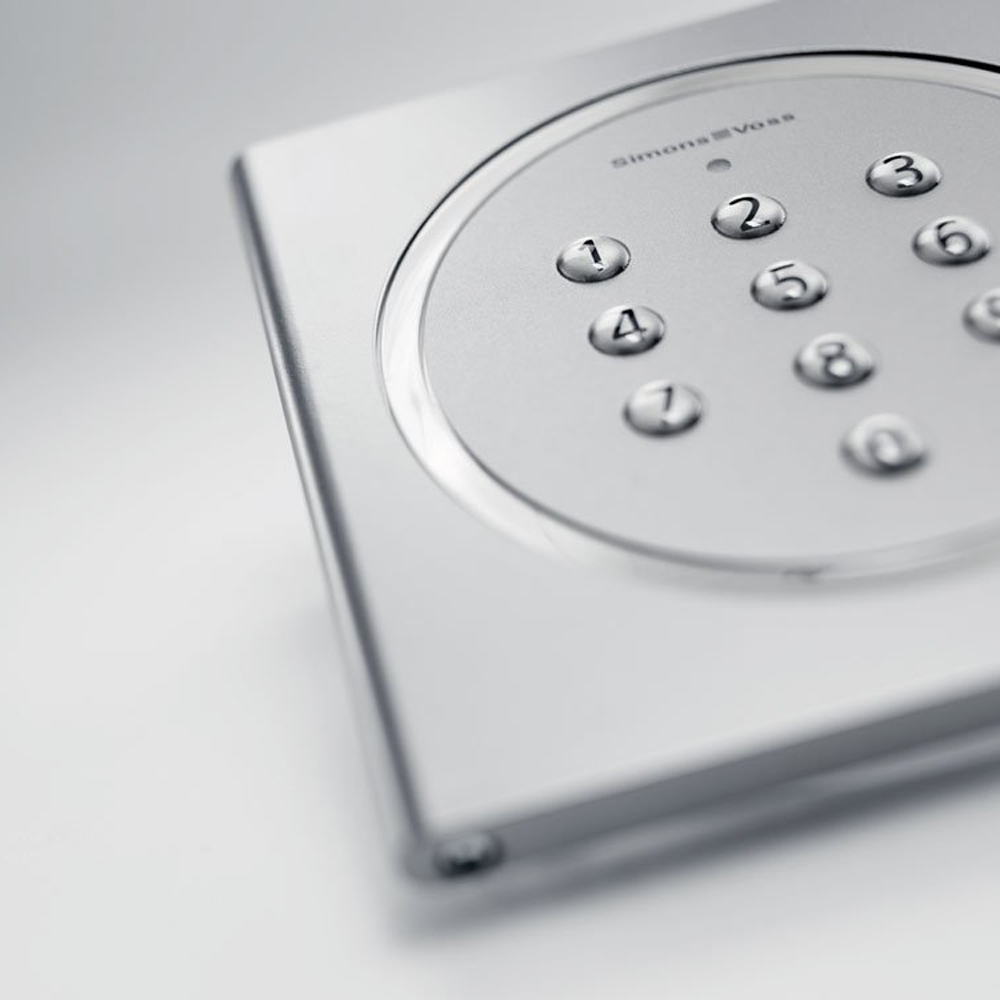

SimonsVoss - PinCode keypad MobileKey - MK.TRA.PINCODE
Delivery Time 2-3 days

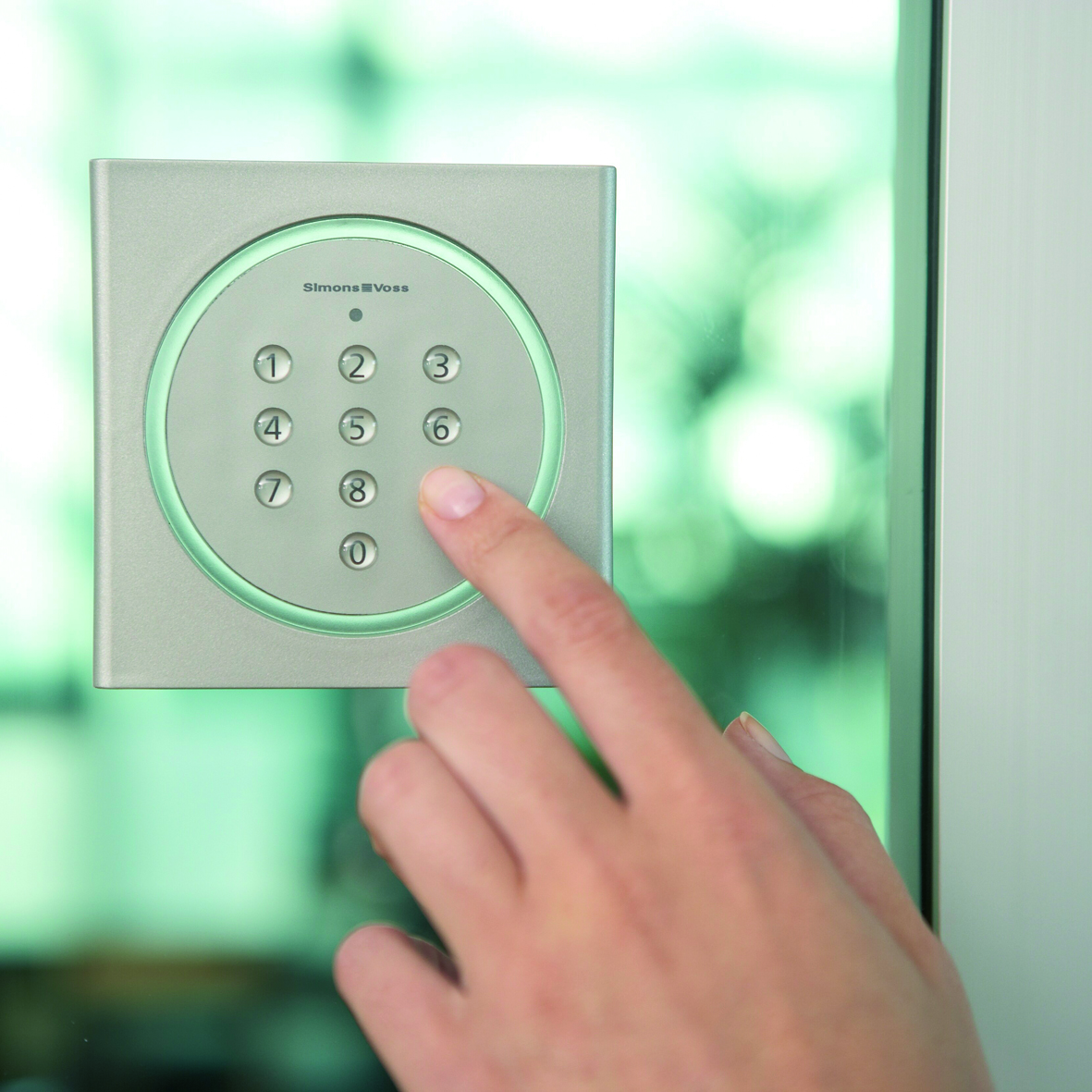

The keypad (offline version) opens your doors when you enter a 4 or 8 digit code, which you can freely define and change whenever you want.
read more
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270

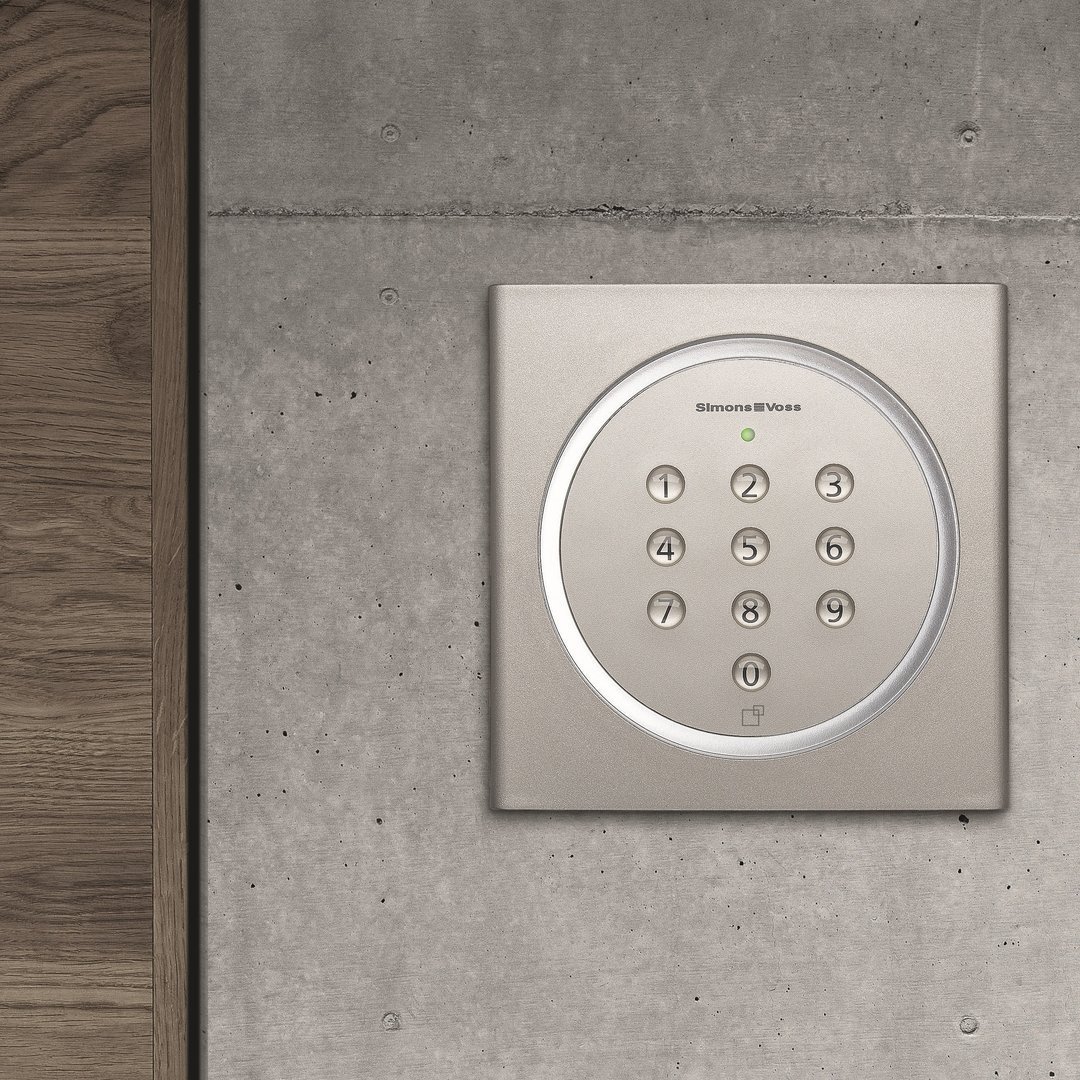

Open your doors with a 4- to 8-digit code. You can fit the ultra-slim SimonsVoss PIN code keypad MobileKey - MK.TRA.PINCODE indoors or outdoors without any cabling and even mount it on glass. Save time and costs when events such as seminars and evening meetings, for example, by issuing a special code for the entrance door.
Technical details:
- Product number: MK.TRA.PINCODE
- Silver-coloured ABS plastic housing

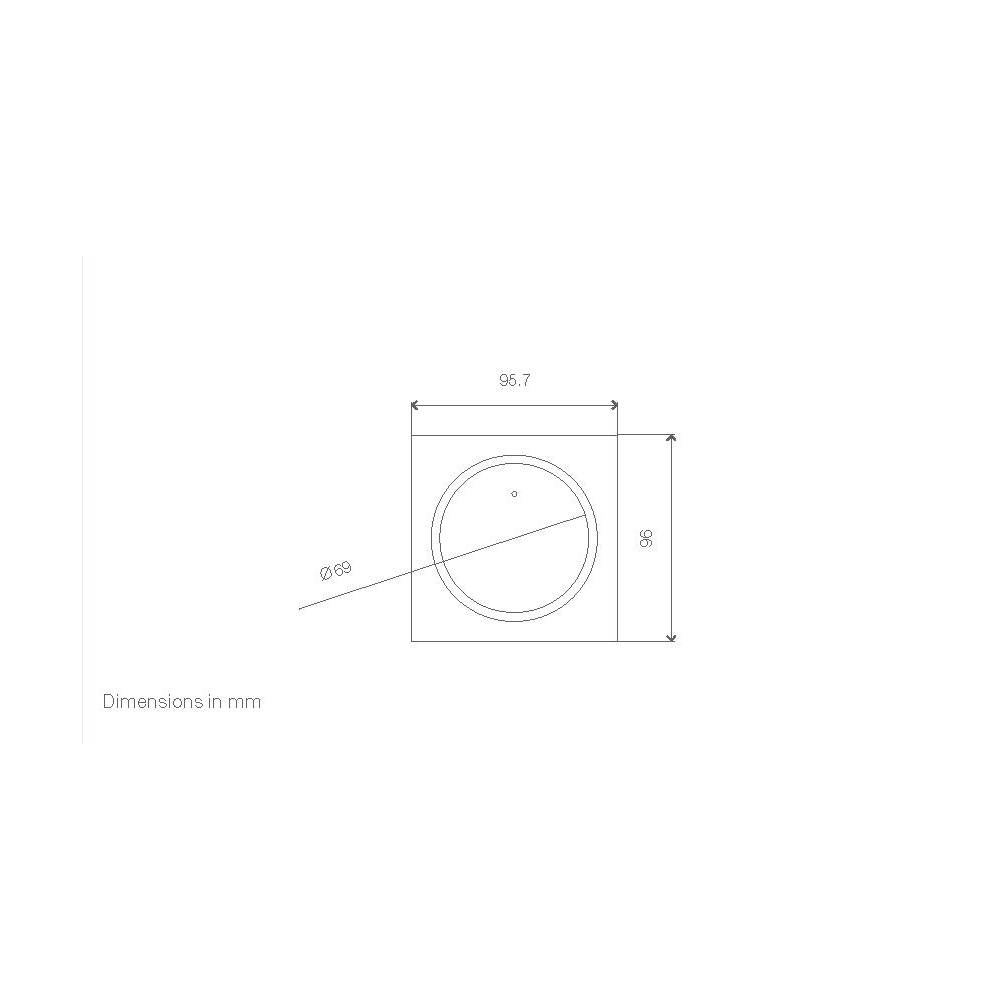

- Dimensions: 96 x 95.7 x 14 mm (H x W x D)
- Weight: about 100 g including batteries
- Type of protection: IP65
- Typical read range:
up to 40 cm to the locking cylinder/Smart Handle;
up to 120 cm to Smart Relay - Battery type: 2 x CR2032, 3 V, lithium
- Battery life: up to 100,000 activations
or up to ten years on stand-by - 2-level battery warning system
- Temperature range: -25 °C to +65 °C
- Manipulation alarm
- Number of keypad users:
3 different PINs - Number of keypad users:
3 different PINs - Cable-free surface mount
Important hints:
- MobileKey components (MK) can not be combined or programmed with System 3060 components
- Exception: Transponder 3064 - TRA2.G2 or MK.TRA2.G2 are compatible in both systems
- the maximum can be programmed in the locking plan:
- 20 locks (Locking cylinder MobileKey, SmartRelay MobileKey, ...)
- 100 users (transponder, PinCode keyboard MobileKey, ...)
Login
- Product number: MK.TRA.PINCODE
- for Basic version (offline)
- Silver-coloured ABS plastic housing
- Dimensions: 96 x 95.7 x 14 mm (H x W x D)
- Weight: about 100 g including batteries
- Type of protection: IP65
- Typical read range:
up to 40 cm to the locking cylinder/Smart Handle;
up to 120 cm to Smart Relay - Battery type: 2 x CR2032, 3 V, lithium
- Battery life: up to 100,000 activations
or up to ten years on stand-by - 2-level battery warning system
- Temperature range: -25 °C to +65 °C
- Manipulation alarm
- Number of keypad users:
3 different PINs - Number of keypad users:
3 different PINs - Cable-free surface mount
The following accessories are required for programming:
- MobileKey USB Programming Stick - MK.CD.STARTER.G2 for PC / Laptop
- Registration via Web-App on the MobileKey Cloud
