SimonsVoss - Switching transponder MobielKey - TRA2.G2.SCHALT
Delivery Time 2-3 days
Switching transponder with 2 connection wires to activate it via an isolated contact.
read more
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270
The SimonsVoss - Switching transponder - TRA2.G2.SCHALT serves as an electronic key in the System 3060 and MobileKey system. Equipped with a high-performance battery, the transponder can activate up to 400,000 locking and unlocking procedures. The digital “key” contacts the electronic locking cylinder wirelessly. It will only activate if the authorisation is valid. If lost, the transponder can be disabled instantly – a new one can be configured as required at the click of the mouse. Switching transponder with 2 connection wires to activate it via an isolated contact.
Technical details:
- product number: TRA2.G2.SCHALT
- Housing made of black polyamide

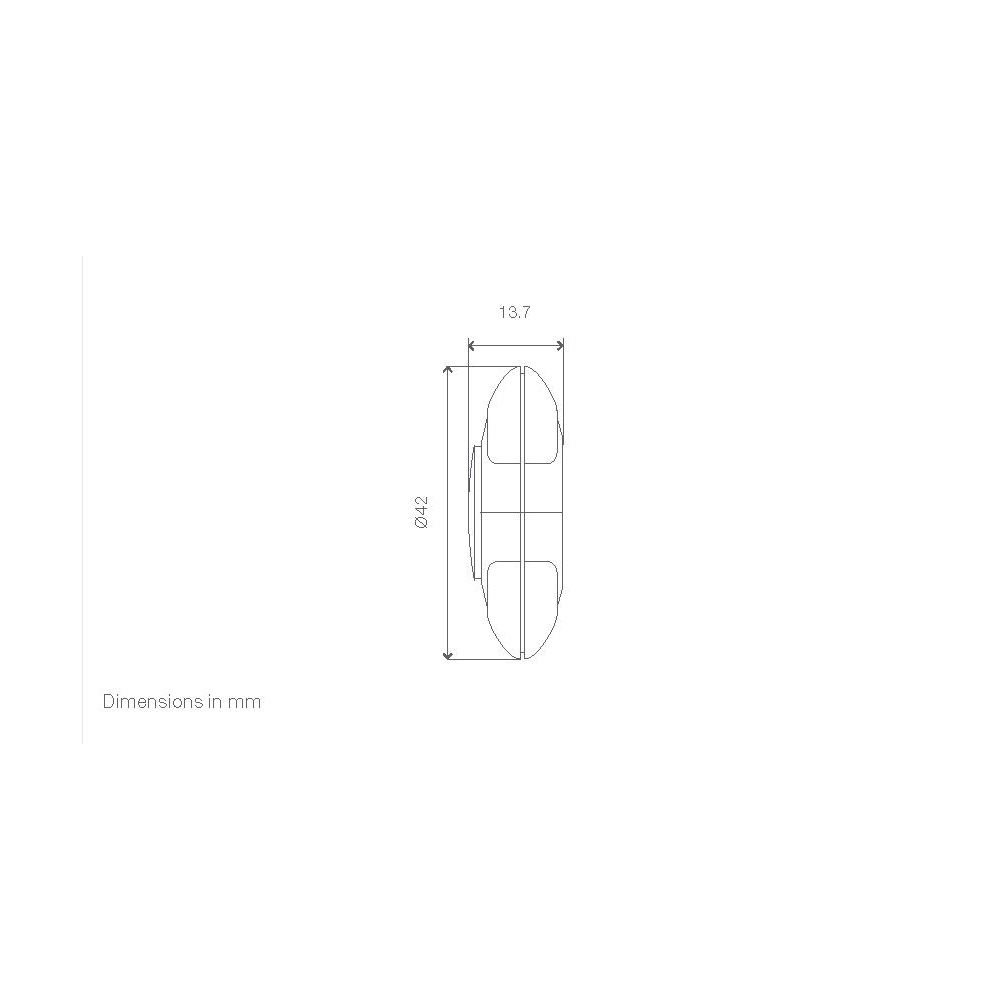

- Dimensions: 42 x 13.7 mm (Ø x H)
- Type of protection: IP65
- Typical read range:
up to 40 cm to the locking cylinder/Smart Handle;
up to 120 cm to Smart Relay - Battery type: 1 x CR2032, 3V, lithium
- Battery life: up to 400,000 activations or up to ten years on stand-by
- Temperature range: -25 °C to +65 °C
- Environmental class: III
- You can manage up to 20 locking cylinders and up to 100 transponders in MobileKey System
- Physical access list with up to 1,000 storable access events
Login
- product number: TRA2.G2.SCHALT
- Housing made of black polyamide
- Dimensions: 42 x 13.7 mm (Ø x H)
- Type of protection: IP65
- Typical read range:
up to 40 cm to the locking cylinder/Smart Handle;
up to 120 cm to Smart Relay - Battery type: 1 x CR2032, 3V, lithium
- Battery life: up to 400,000 activations or up to ten years on stand-by
- Temperature range: -25 °C to +65 °C
- Environmental class: III
- You can manage up to 20 locking cylinders and up to 100 transponders in MobileKey System
- Physical access list with up to 1,000 storable access events
Required components for programming MobileKey:
- MobileKey USB programming stick - MK.CD.STARTER.G2 for PC/Laptop
- Register Web-App MobileKey Cloud
Required components for programming System 3060 - Starter version:
- USB programming stick - CD.STARTER.G2 for PC/Laptop
- Software LSM Starter Edition 3.3
Required components for programming System 3060:
- programming device SMARTCD G2 (SMARTCD.G2)
- Software LSM Basic, Basic Online, Business or Professional
