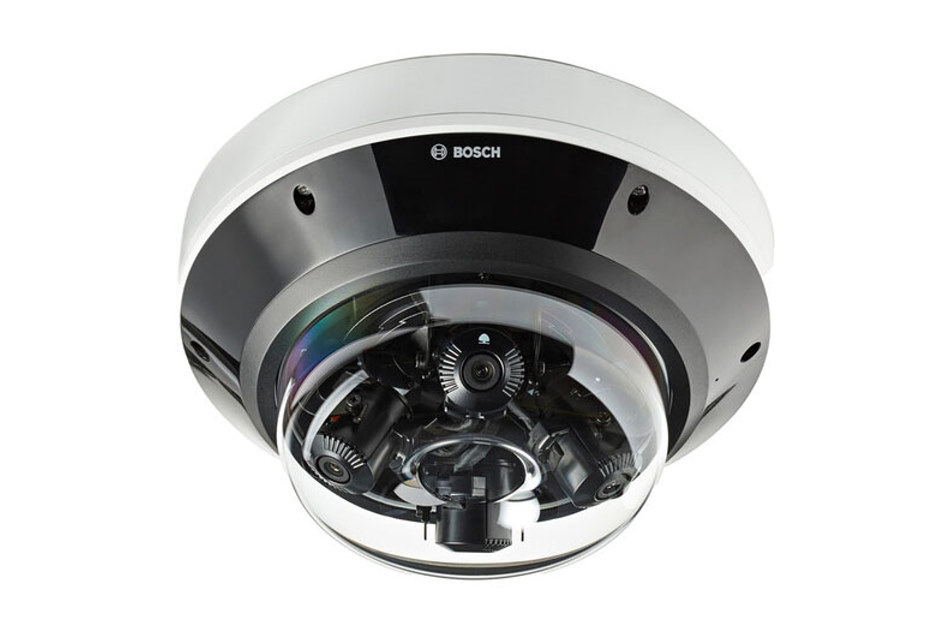

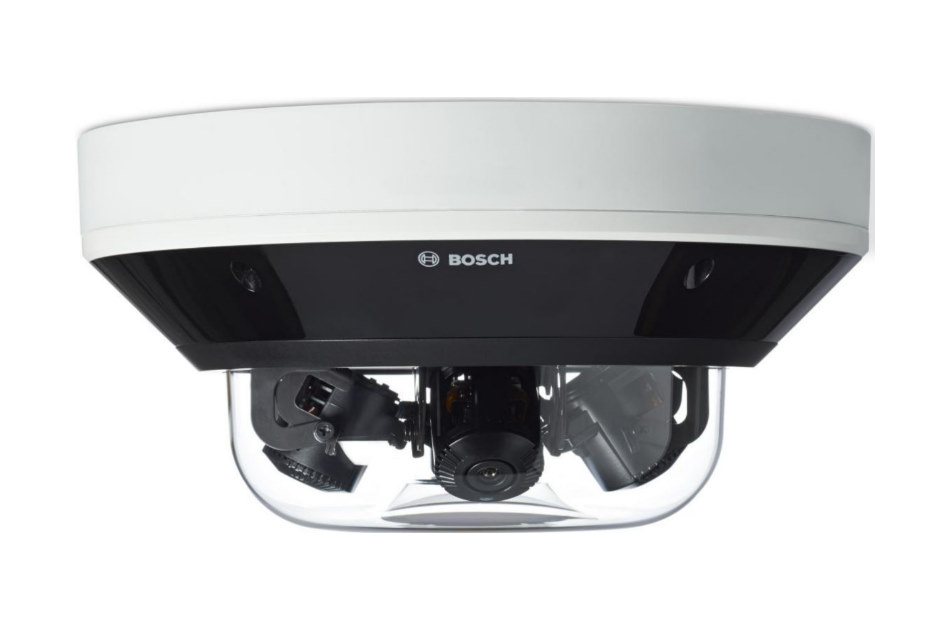

Bosch - NDM-7702-AL
Delivery Time - look at hints
Netzwerk Multisensor Kamera, 12 Megapixel, 30fps, 3,7-7,7mm IVA, Infrarot, Audio, IP66
read more
€2,386.49
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270
Product information "Bosch - NDM-7702-AL"
Netzwerk Multisensor Kamera, 12 Megapixel, 30fps, 3,7-7,7mm IVA, Infrarot, Audio, IP66
Manufacturer number: F.01U.389.264
Download manufacturer datasheet
Main features
- Netzwerk Multisensor-Kamera für den Außenbereich
- Auflösung bis 12 Megapixel (4x 3 Megapixel)
- Bis zu 2048x1536 Pixel (4:3)@30fps
- Bis zu 1920x1080 Pixel (16:9)@30fps
- Infrarot-Bleuchtung bis 30m
- Eine IP-Adresse für alle vier Imager
- Intelligent Video Analytics (IVA)
- Camera Trainer
- Objektklassifizierung Peron, PKW, LKW, Fahrrad
- Wide Dynamic Range 120dB
- Temperaturbereich -50C bis +55C
- Stromversorgung: 24VAC oder PoE
Spezifications
| Alarm inputs | 1 |
| Audio support | Yes |
| Resolution standard | 12 MP |
| Recording sensor | CMOS |
| Lighting | Infrared |
| Image resolution max. | 4x 2048x1536 |
| Image transfer rate max. | 30 fps |
| Horizontal angle of view | 85,1 - 38,7° |
| Focal length | 3,7 - 7,7 mm |
| Chip size | 1/2,7'' |
| Digital Noise Reduction (DNR) | Yes |
| Color (Housing) | weiß |
| Color (dome) | clear |
| Backlight compensation | Yes |
| Housing type | Outside |
| Housing material | Aluminium |
| Heating | Yes |
| Internal memory | microSD card slot |
| Camera Type | Multi-sensor camera |
| Photosensitivity | 0,091 Lux bei F1,9 |
| Mounting type | Ceiling |
| Lens Type | Varifocal (motorized) |
| ONVIF | ONVIF Profile S,ONVIF Profile G,ONVIF Profile T |
| Power over Ethernet | IEEE 802.3bt,IEEE 802.3at |
| Protection | IP66 |
| Series | Bosch Flexidome Multi 7000i |
| Control Interfaces | Ethernet |
| Power supply | 24VAC,Poe |
| System | True Day&Night |
| Day/night switching | Switchable IR Filter (ICR) |
| Temperature Range (Operating) | -50°C ~ +55°C |
| Vandalism-resistant | Yes |
| Video Compression | H.265,H.264,M-JPEG |
| Wide Dynamic Range (WDR) | WDR 120dB |
| Certifications | IK10,NEMA 4X |
Product availability information:
The item is ordered especially for you, so it is not possible for return, withdrawal or cancellation. The following is non-binding and subject to storage and delivery information from our suppliers:
In stock: 0, Expectation: 0, Replacement time: 3 weeks (Last update: 15.12.2025) - subject to prior sale
