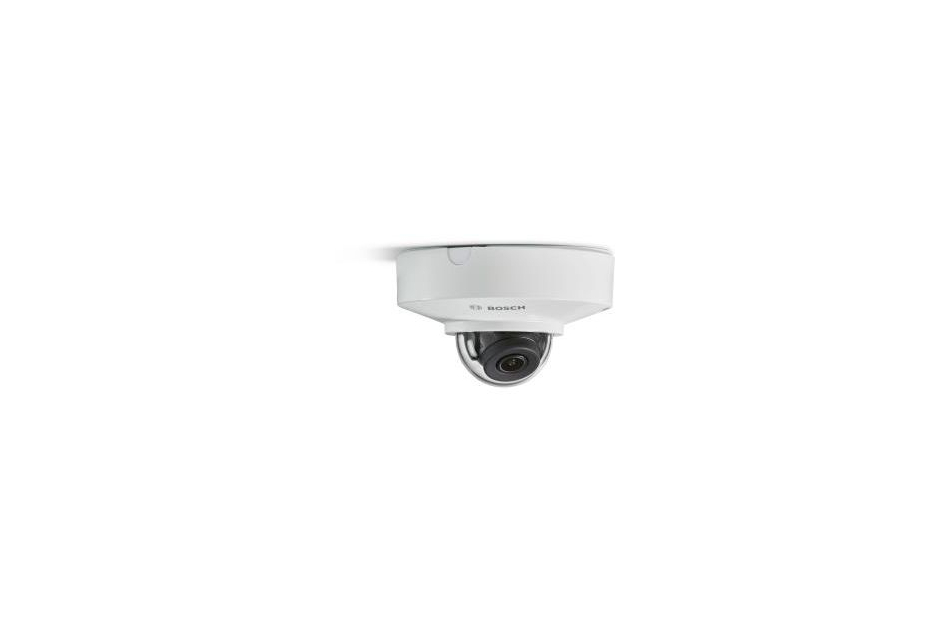

Bosch - NDV-3503-F02-P
Available, delivery time: 2-3 days
Netzwerk Fix Dome, Tag/Nacht, 3072x1728@30fps, 2,3mm, EVA H.265, Audio, IK08, Innen
read more
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270
Product information "Bosch - NDV-3503-F02-P"
Product availability information:
The item is ordered especially for you. The following is non-binding and subject to storage and delivery information from our suppliers:
- Discontinued line Availability remaining quantity: 4
- Expectation: 0
- Replacement time: -
- Last update: 22.09.2025 - subject to prior sale
SALE - Kameratechnik - Bosch - NDV-3503-F02-P
Netzwerk Fix Dome, Tag/Nacht, 3072x1728@30fps, 2,3mm, EVA H.265, Audio, IK08, Innen
Manufacturer datasheet
Hauptmerkmale
- Kompakter Netzwerk Dome für den Inneneinsatz
- 5 Megapixel Auflösung bis 3072x1728 Pixel
- Essential Video Analytics
- Videokompression: H.265, H.264, M-JPEG
- 2,3mm Objektiv mit 118° Bildwinkel
- Regions of Interest
- Wide Dynamic Range (WDR 120dB)
- Intelligente Dynamische Rauschunterdrückung (iDNR)
- Eingebautes Mikrofon, Audioerkennung
- Stromversorgung: 12VDC, PoE IEEE 802.3af
Specifications
| Alarm inputs | 1 |
| Audio support | Yes |
| Resolution standard | 5 MP |
| Recording sensor | CMOS |
| Lighting | no |
| Image resolution max. | 3072x1728 |
| Image transfer rate max. | 25 fps |
| Horizontal angle of view | 118° |
| Focal length | 2,3 mm |
| Chip size | 1/2,9'' |
| Digital Noise Reduction (DNR) | Yes |
| Color (Housing) | weiß |
| Color (dome) | clear |
| Backlight compensation | Yes |
| Housing type | Inside |
| Heating | Yes |
| Internal memory | microSDHC card,microSDXC card |
| Photosensitivity | 0,57 Lux bei F1,6 |
| Mounting type | Ceiling,Wall |
| Lens Type | Prime lens |
| ONVIF | ONVIF Profile S,ONVIF Profile G |
| Power over Ethernet | IEEE 802.3af |
| Protection | no information |
| Series | Bosch Flexidome IP micro 3000i |
| Control Interfaces | Ethernet |
| Power supply | 12VDC,Poe |
| System | True Day&Night |
| Day/night switching | Switchable IR Filter (ICR) |
| Temperature Range (Operating) | -20°C ~ +50°C |
| Vandalism-resistant | Yes |
| Video Compression | H.265,H.264,M-JPEG |
| Wide Dynamic Range (WDR) | WDR 120dB |
| Certifications | IK08 |
| Manufacturers sheet | Download PDF-document |
Login
Specifications
| Alarm inputs | 1 |
| Audio support | Yes |
| Resolution standard | 5 MP |
| Recording sensor | CMOS |
| Lighting | no |
| Image resolution max. | 3072x1728 |
| Image transfer rate max. | 25 fps |
| Horizontal angle of view | 118° |
| Focal length | 2,3 mm |
| Chip size | 1/2,9'' |
| Digital Noise Reduction (DNR) | Yes |
| Color (Housing) | weiß |
| Color (dome) | clear |
| Backlight compensation | Yes |
| Housing type | Inside |
| Heating | Yes |
| Internal memory | microSDHC card,microSDXC card |
| Photosensitivity | 0,57 Lux bei F1,6 |
| Mounting type | Ceiling,Wall |
| Lens Type | Prime lens |
| ONVIF | ONVIF Profile S,ONVIF Profile G |
| Power over Ethernet | IEEE 802.3af |
| Protection | no information |
| Series | Bosch Flexidome IP micro 3000i |
| Control Interfaces | Ethernet |
| Power supply | 12VDC,Poe |
| System | True Day&Night |
| Day/night switching | Switchable IR Filter (ICR) |
| Temperature Range (Operating) | -20°C ~ +50°C |
| Vandalism-resistant | Yes |
| Video Compression | H.265,H.264,M-JPEG |
| Wide Dynamic Range (WDR) | WDR 120dB |
| Certifications | IK08 |
| Manufacturers sheet | Download PDF-document |
