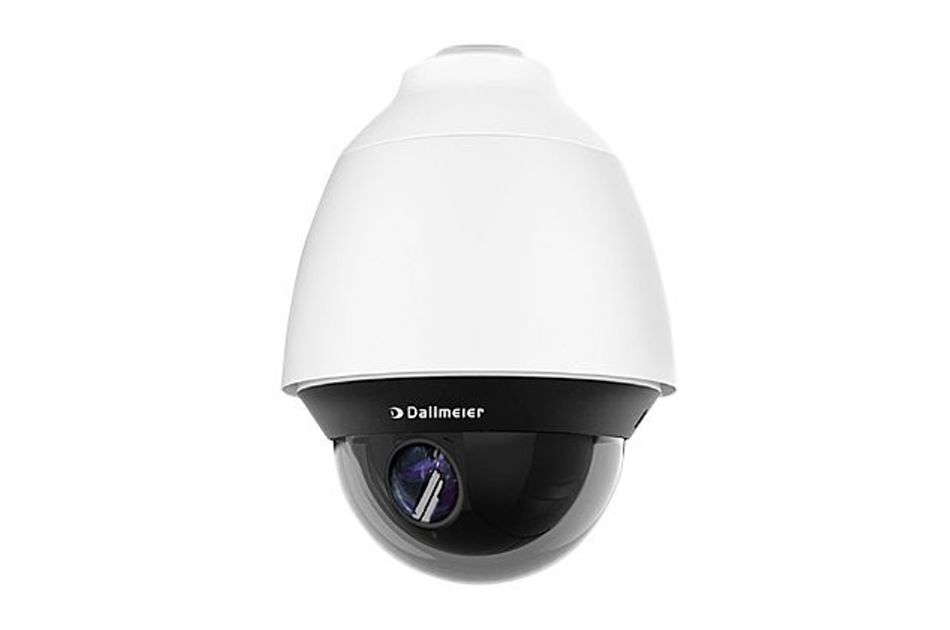

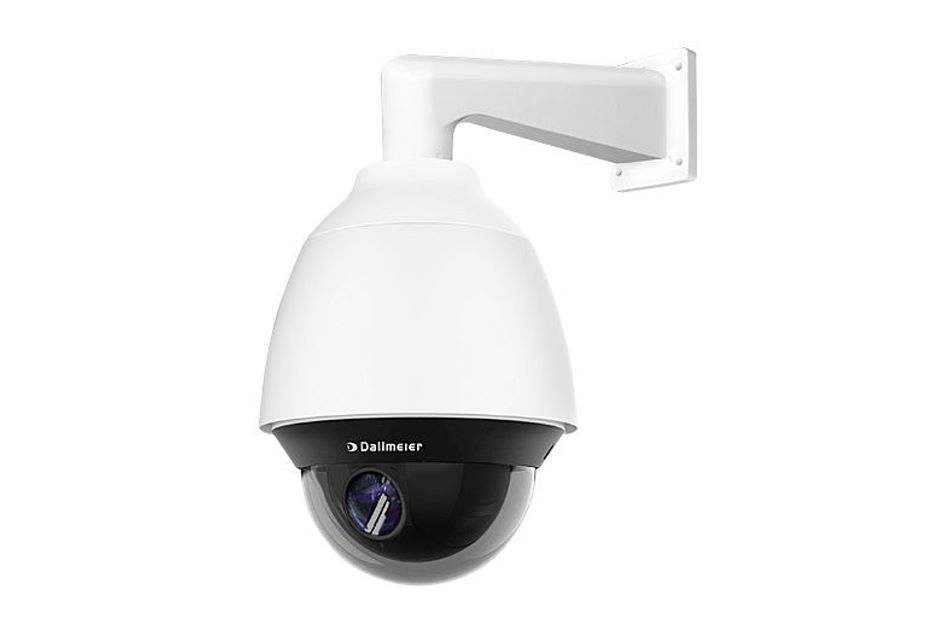

Dallmeier - DDZ5230DN Outdoor
Delivery Time - look at hints
High Definition PTZ-Netzwerkkamera, 2 MP, H.265, Tag/Nacht, WDR/HDR, PoE+, 30x optischer Zoom, Dome-Gehäuse, Outdoor-Variante
read more
€3,422.02
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270
Product information "Dallmeier - DDZ5230DN Outdoor"
High Definition PTZ-Netzwerkkamera, 2 MP, H.265, Tag/Nacht, WDR/HDR, PoE+, 30x optischer Zoom, Dome-Gehäuse, Outdoor-Variante
Manufacturer number: 9082
Download manufacturer datasheet
Main features
- 2 Megapixel High Definition PTZ-Kamera
- Bis zu 60 fps bei voller Auflösung, H.265
- Horizontales Blickfeld: 59,4°, Vertikales Blickfeld: 46,1°
- 30x optischer Zoom mit Autofokus
- Deep AI Objektklassifizierung, PTZ-Home-Position EdgeAnalytics AI Apps
- High-Speed Pan/Tilt/Zoom-Mechanismus
- Outdoor-Variante IP66
- NDAA / DSGVO konform
- Made in Germany
Spezifications
| Alarm inputs | 0 |
| Audio support | Yes |
| Resolution standard | 2 MP |
| Recording sensor | CMOS |
| Motion detector | Yes |
| Image transfer rate max. | 60 fps |
| Horizontal angle of view | 59,4° |
| Focal length | 4,5 - 135 mm |
| Chip size | 1/2,8'' |
| Digital Noise Reduction (DNR) | Yes |
| Turning range | 360 ° |
| Color (Housing) | weiß |
| Color (dome) | clear |
| Housing type | Inside |
| Housing material | Aluminium |
| Speed (manual control) | 90 °/sec |
| Speed (Target Approach) | 300 °/sec |
| Heating | Yes |
| Internal memory | microSDXC card |
| Photosensitivity | 0,05 Lux bei F1,8 |
| Low Speed Shutter | Yes |
| Mounting type | Ceiling,Wall |
| Lens Type | Zoom |
| ONVIF | ONVIF Profile S,ONVIF Profile T |
| Power over Ethernet | IEEE 802.3bt |
| Protection | IP66 |
| Series | Dallmeier PTZ |
| Control Interfaces | Ethernet |
| Power supply | 48VDC |
| System | Color |
| Day/night switching | Switchable IR Filter (ICR) |
| Temperature Range (Operating) | -40°C ~ +50°C |
| Video Compression | H.264,H.265,M-JPEG |
| Certifications | IK10 |
| Zoomfactor (optical) | 30 |
