Dallmeier - DOMERA® SDF6800DN
Delivery Time - look at hints
Ultra High Definition Kamera, 8 MP, H.265, Tag/Nacht, Deep AI/VCA, WDR, PoE, DOMERA® Einbaugehäuse, Blende schwarz IR durchlässig
read more
€1,589.48
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270

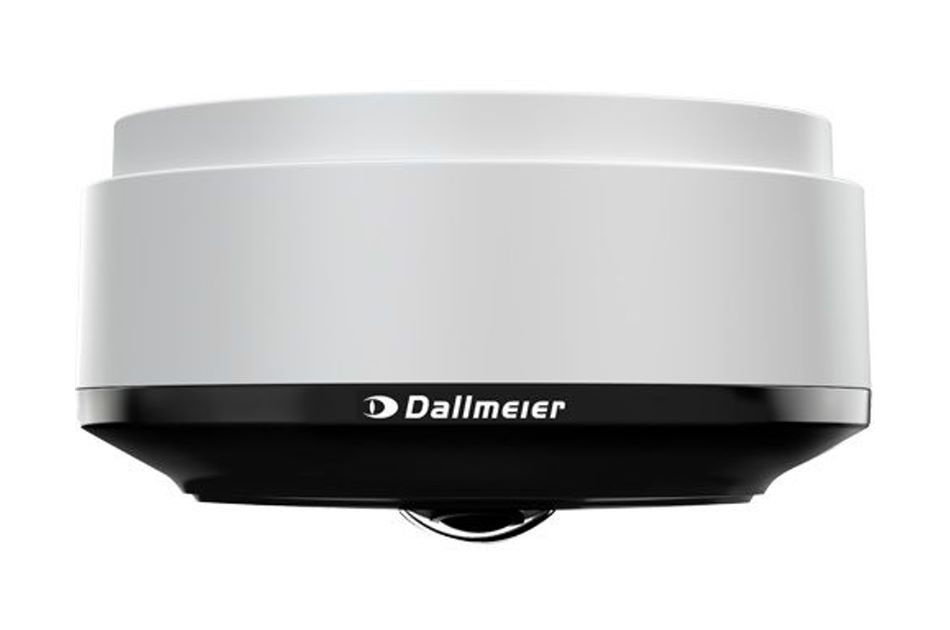

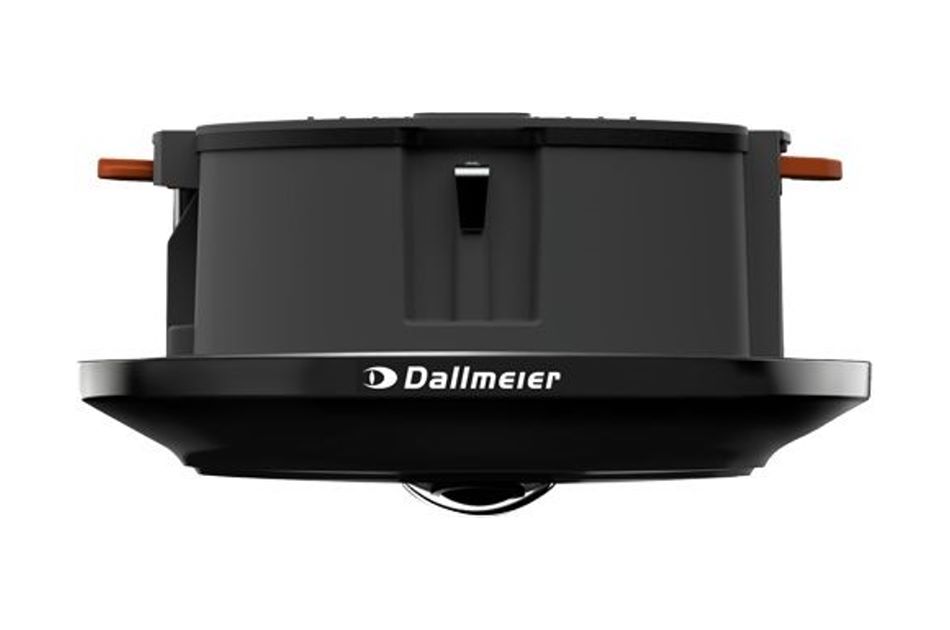

Product information "Dallmeier - DOMERA® SDF6800DN"
Ultra High Definition Kamera, 8 MP, H.265, Tag/Nacht, Deep AI/VCA, WDR, PoE, DOMERA® Einbaugehäuse, Blende schwarz IR durchlässig
Manufacturer number: 8355
Download manufacturer datasheet
Main features
- 12 Megapixel High Definition Fisheyekamera
- 30 fps bei 8MP Auflösung, H.265, 92 dB UWDR
- Horizontales Blickfeld: 360°, Vertikales Blickfeld: 90°
- Panoramasicht: 360°
- Deep AI Objektklassifizierung, EdgeAnalytics AI Apps
- Adaptive IR-Beleuchtung
- Modulare DOMERA Bauweise
- NDAA / DSGVO konform
- Made in Germany
Spezifications
| Alarm inputs | 0 |
| Audio support | Yes |
| Resolution standard | 12 MP |
| Recording sensor | CMOS |
| Lighting | optional |
| Motion detector | Yes |
| Image resolution max. | 2880x2880 |
| Image transfer rate max. | 30 fps |
| Horizontal angle of view | 360° |
| Focal length | 1,6 mm |
| Chip size | 1/1,7'' |
| Digital Noise Reduction (DNR) | Yes |
| Color (Housing) | schwarz |
| Color (dome) | clear |
| Housing type | Inside |
| Housing material | Plastic |
| Heating | Yes |
| Internal memory | microSDXC card |
| Camera Type | Fisheye Camera |
| Photosensitivity | 0,05 Lux bei F1,4 |
| Low Speed Shutter | Yes |
| Mounting type | Ceiling installation,Ceiling |
| Lens Type | Prime lens |
| ONVIF | ONVIF Profile M,ONVIF Profile S,ONVIF Profile T |
| Power over Ethernet | IEEE 802.3af |
| Protection | IP66 |
| Series | DOMERA |
| Control Interfaces | Ethernet |
| Power supply | 24-48VDC |
| System | Color |
| Day/night switching | Switchable IR Filter (ICR) |
| Temperature Range (Operating) | -40°C ~ +50°C |
| Video Compression | H.264,H.265,M-JPEG |
| Wide Dynamic Range (WDR) | WDR 92dB |
