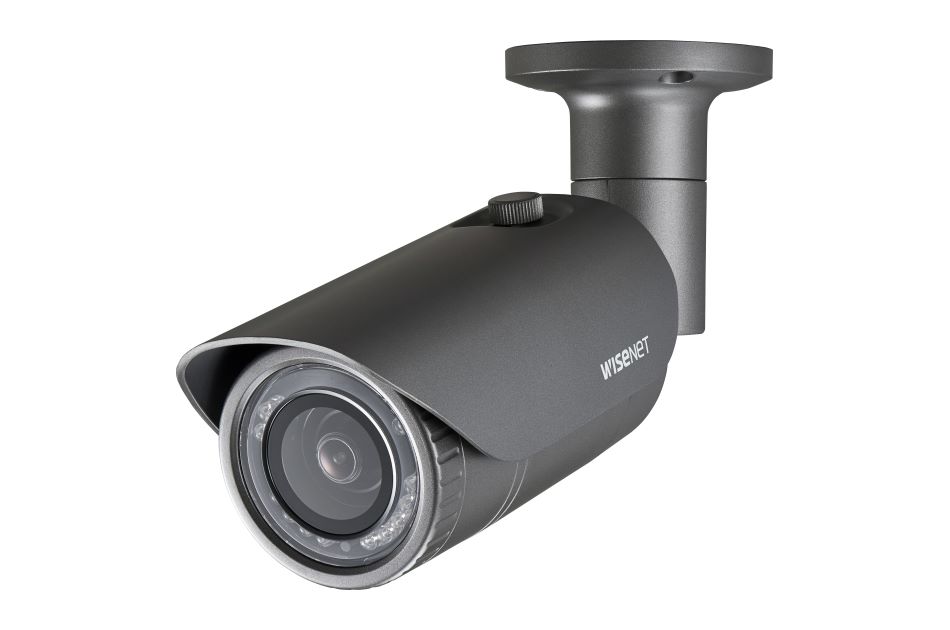

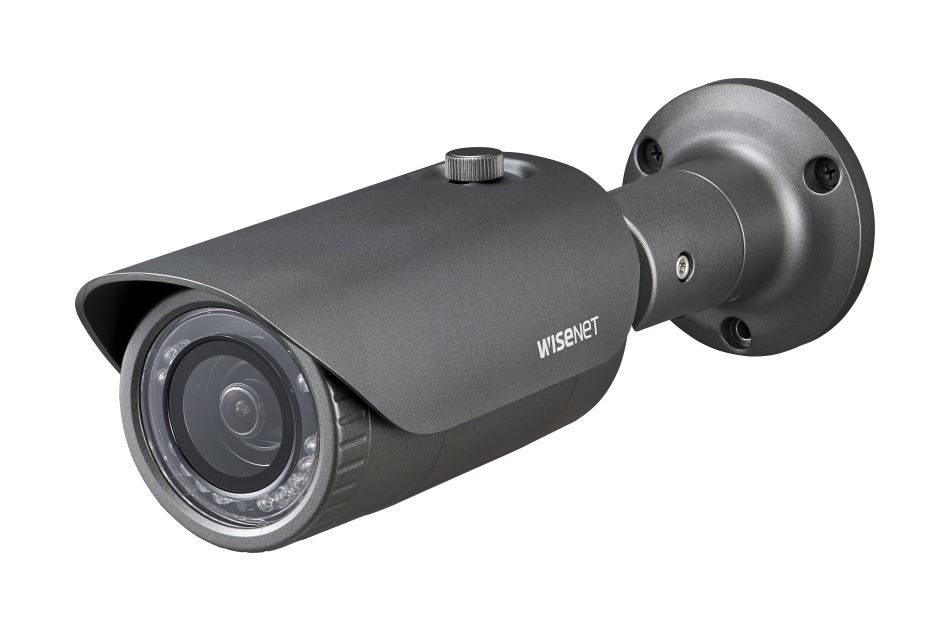

Hanwha Vision - HCO-7030RA
Delivery Time - look at hints
1/3'' AHD Kamera, Bullet, Tag/Nacht, 6mm, Infrarot, 2560x1440, BLC, IP66, IK10
read more
€208.01
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270
Product information "Hanwha Vision - HCO-7030RA"
1/3'' AHD Kamera, Bullet, Tag/Nacht, 6mm, Infrarot, 2560x1440, BLC, IP66, IK10
Manufacturer number: HCO-7030RA
Download manufacturer datasheet
Main features
- 1/3'' Analog HD über Koax (AHD) Bullet Kamera
- True Day/Night mit umschaltbarem IR Sperrfilter
- QHD Auflösung 2560x1440@25fps
- F2,0/6 mm Festbrennweite
- Lichtempfindlichkeit 0,27 Lux bei F2,0 (Farbe)
- Verzögerungsfreie Bildübertragung bis max. 500m
- Integrierte IR LED Beleuchtung, Reichweite bis 30m
- Steuerung über Koaxialkabel (ACP)
- Einfache Installation (Plug & Play)
- FBAS-Ausgang (nur für Installation)
- 12VDC Stromversorgung
- Schutzklasse IP66, IK10 Vandalismusschutz
Spezifications
| Alarm inputs | 0 |
| Number of alarm outputs | 0 |
| Recording sensor | CMOS |
| Lighting | Infrared |
| Motion detector | Yes |
| Image resolution max. | 2560x1440 |
| Horizontal angle of view | 49,01° |
| Focal length | 6 mm |
| Chip size | 1/3'' |
| Digital Noise Reduction (DNR) | Yes |
| Color (Housing) | anthrazit,Pantone Cool Gray 10C |
| Backlight compensation | Yes |
| Housing type | Outside |
| Housing material | Aluminium |
| Heating | Yes |
| Photosensitivity | 0,27 Lux bei F2,0 |
| Mounting type | Ceiling,Wall |
| Lens Type | Prime lens |
| Protection | IP66 |
| Series | Wisenet HD+ |
| Control Interfaces | ACP (AHD Coax Protocol),Pelco-C (Coaxitron) |
| Power supply | 12VDC |
| System | True Day&Night |
| Day/night switching | Switchable IR Filter (ICR) |
| Temperature Range (Operating) | -30°C ~ +55°C |
| Vandalism-resistant | Yes |
| Wide Dynamic Range (WDR) | D-WDR |
| Certifications | IK10 |
Login
Product availability information:
The item is ordered especially for you, so it is not possible for return, withdrawal or cancellation. The following is non-binding and subject to storage and delivery information from our suppliers:
Discontinued line - In stock: 0, Expectation: 0, Replacement time: 9 weeks (Last update: 30.10.2025) - subject to prior sale
