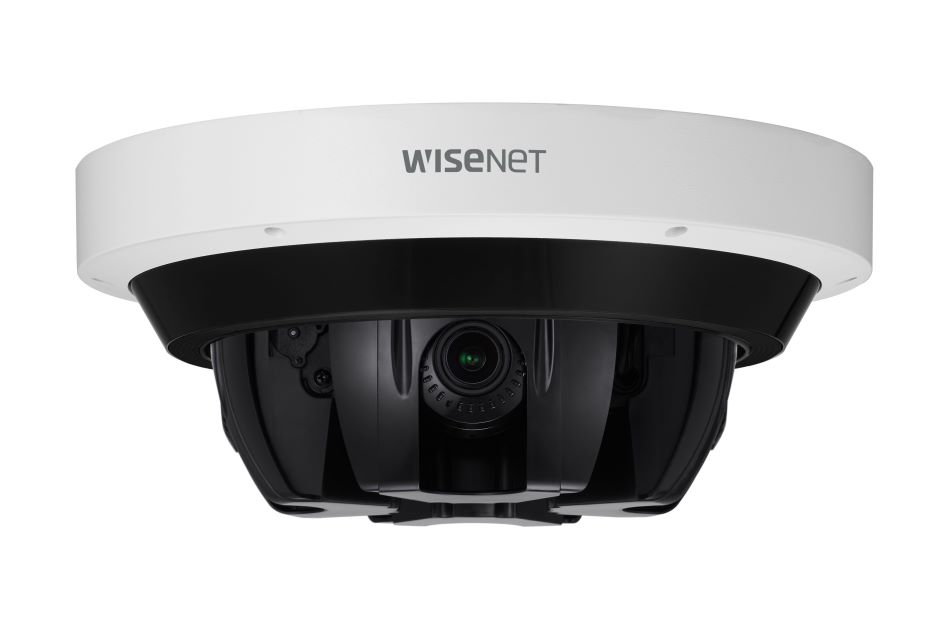

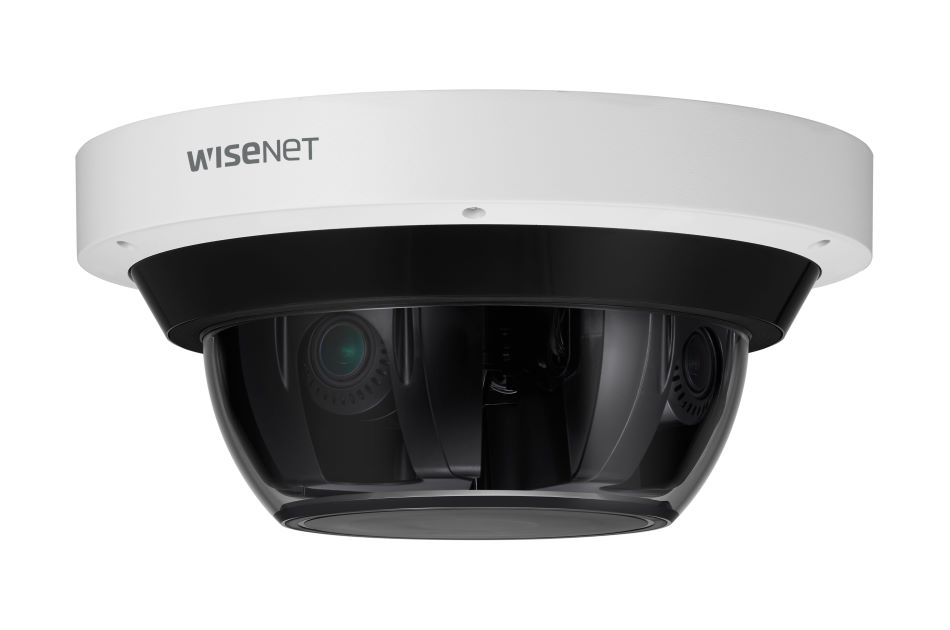

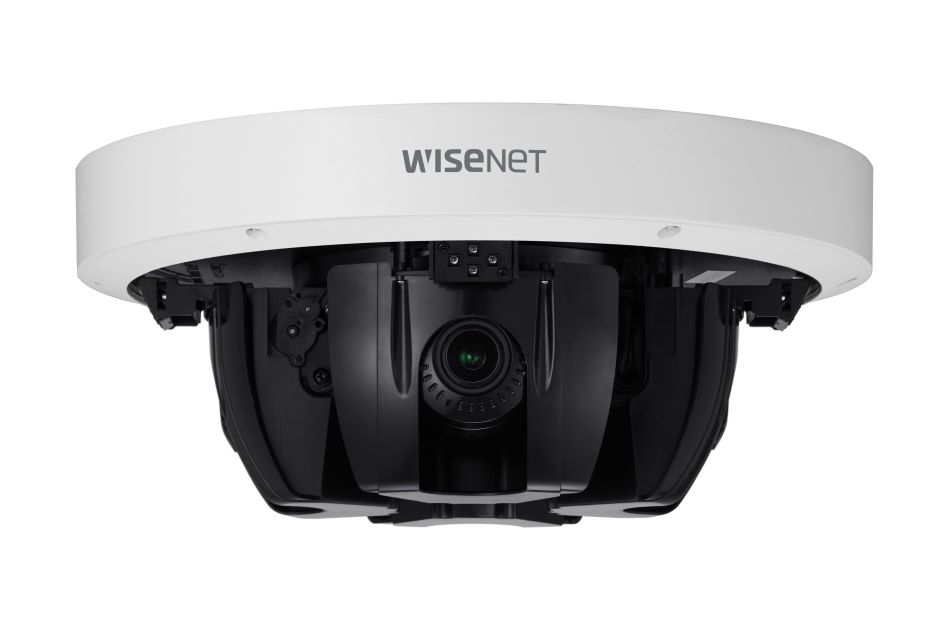

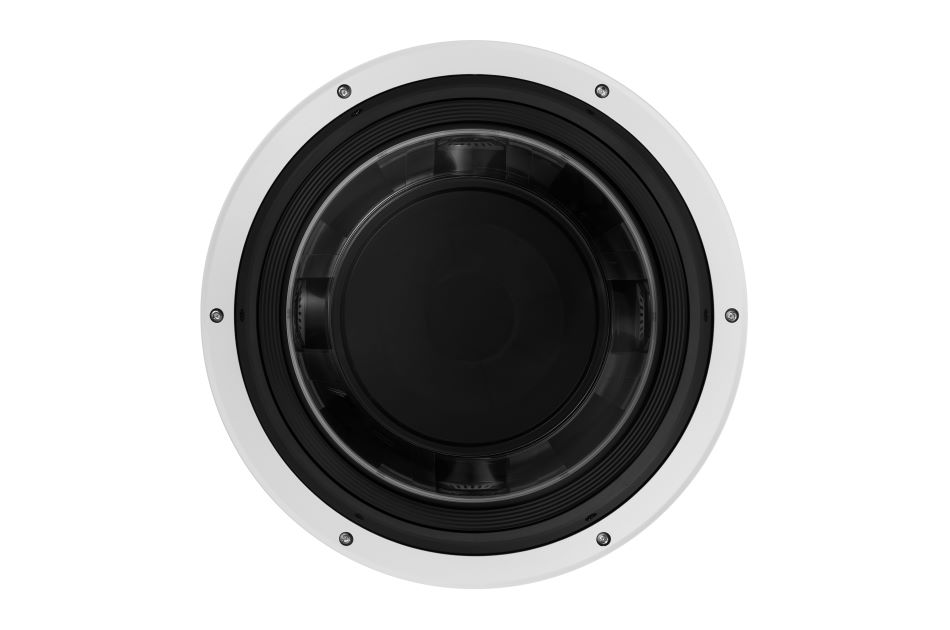

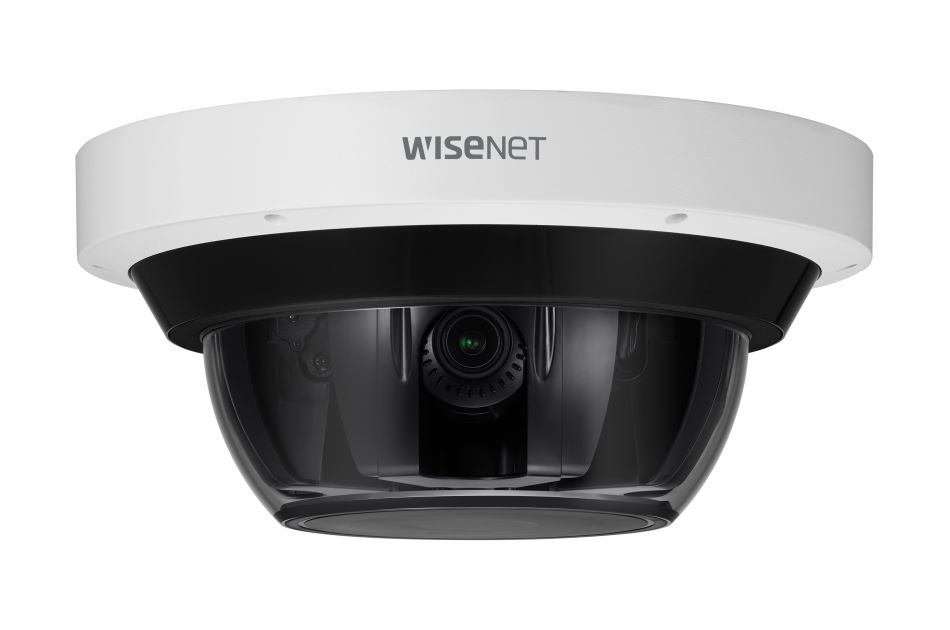

Hanwha Vision - PNM-9085RQZ1
Delivery Time - look at hints
Netzwerk Multidirektional PTRZ Kamera, H.265, 4x 4,13-9,4mm, 4x 2560x1920, IR, IP66, IK10
read more
€3,955.62
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270
Product information "Hanwha Vision - PNM-9085RQZ1"
Netzwerk Multidirektional PTRZ Kamera, H.265, 4x 4,13-9,4mm, 4x 2560x1920, IR, IP66, IK10
Manufacturer number: PNM-9085RQZ1
Download manufacturer datasheet
Main features
- 20 Megapixel 360° Multidirektional Kamera
- 4x 4,13-9,4mm motorisierte Varifokal Kameraköpfe
- Auflösung pro Sensor: 2560x1920@25fps
- Remote-Zoom und Remote-Fokus
- PTRZ-Unterstützung (motorisiert)
- Tag/Nacht Funktion mit schaltbarem IR Filter
- H.265/H.264 mit Wisestream II
- Integrierte Infrarotbeleuchtung, 30m Reichweite
- Flexible Ausrichtung der Kameraköpfe
- Wide Dynamic Range (WDR), 120dB Dynamik
- `Für Außenanwendung: IP66, -40°C~+55°C `
- Schlagfest gemäß IK10
Spezifications
| Alarm inputs | 1 |
| Audio support | Yes |
| Recording sensor | CMOS |
| Lighting | Infrared |
| Motion detector | Yes |
| Image resolution max. | 4x 2560x1920 |
| Image transfer rate max. | 30 fps |
| Horizontal angle of view | 87,58 - 37,34° |
| Focal length | 4,13 - 9,4 mm |
| Chip size | 1/1,8'' |
| Digital Noise Reduction (DNR) | Yes |
| Color (Housing) | weiß,RAL9003 |
| Color (dome) | clear |
| Backlight compensation | Yes |
| Housing type | Outside |
| Housing material | Aluminium |
| Heating | Yes |
| Internal memory | microSD card slot |
| Camera Type | Multi-directional camera |
| Photosensitivity | 0,11 Lux bei F1,9 |
| Low Speed Shutter | Yes |
| Mounting type | Ceiling |
| Lens Type | Varifocal (motorized) |
| ONVIF | ONVIF Profile S,ONVIF Profile T |
| Power over Ethernet | IEEE 802.3bt |
| Protection | IP66 |
| Series | P-Serie |
| Control Interfaces | Ethernet |
| Power supply | 12VDC,Poe |
| System | True Day&Night |
| Day/night switching | Switchable IR Filter (ICR) |
| Temperature Range (Operating) | -40°C ~ +55°C |
| Vandalism-resistant | Yes |
| Video Compression | H.265,H.264,M-JPEG |
| Wide Dynamic Range (WDR) | WDR 120dB |
| Certifications | IK10 |
| Zoom Factor (Digital) | 0 |
Product availability information:
The item is ordered especially for you, so it is not possible for return, withdrawal or cancellation. The following is non-binding and subject to storage and delivery information from our suppliers:
In stock: 0, Expectation: 0, Replacement time: 10 days (Last update: 15.06.2026) - subject to prior sale
