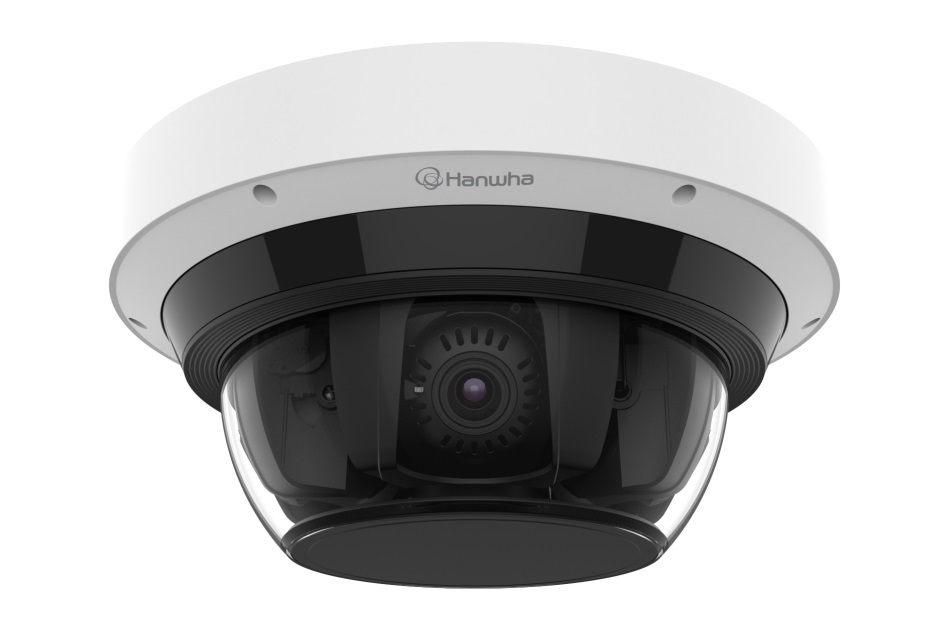

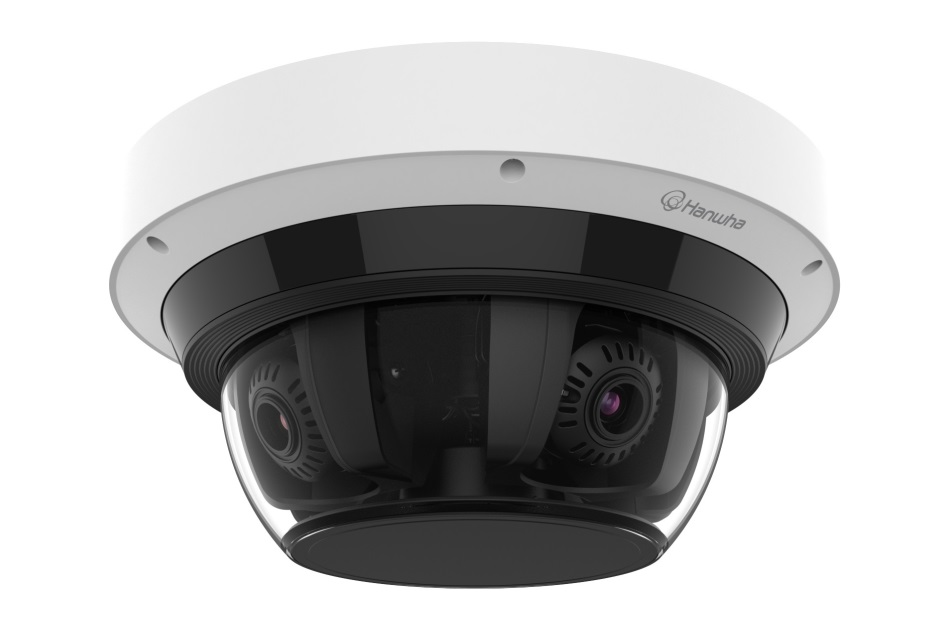

Hanwha Vision - PNM-C16083RQZ
Delivery Time 2-3 weeks
Netzwerk Multidirektionale Kamera, 16MP, 4 x 4MP, IR, 3,2-10,2mm MVF, WDR, IP66, IK10, PoE+, PoE++
read more
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270
Product information "Hanwha Vision - PNM-C16083RQZ"
Product availability information:
The item is ordered especially for you. The following is non-binding and subject to storage and delivery information from our suppliers:
- In stock: 0
- Expectation: 0
- Replacement time: 10 days
- Last update: 08.09.2025 - subject to prior sale
Kameratechnik - Panorama - Hanwha Vision - PNM-C16083RQZ
Netzwerk Multidirektionale Kamera, 16MP, 4 x 4MP, IR, 3,2-10,2mm MVF, WDR, IP66, IK10, PoE+, PoE++
Manufacturer datasheet
Hauptmerkmale
- KI-Engine-basierte Analyse-Ereignisse:
- Objekterkennung(Personen/Gesichter/Fahrzeuge/Kennzeichen),
- virtuelle Linien (Passieren/Richtung),
- virtuelle Bereiche (Umherwandern/Eindringen/Einsteigen/Aussteigen)
- Fahrzeuge (Typ: Auto/Bus/Lkw/Motorrad/Fahrrad,Farbe),
- Personen (Farbe der Kleidung)
- BestShot-Unterstützung
- KI-basierte WiseNRII, Auto prefer shutter control, WiseStreamIII
- PTRZ-Steuerung: Objektivposition/Winkel aus der Ferne einstellen
- IR-Sichtbarkeit: Bis zu 20 m
- Höchste Cybersicherheit (TPM 2.0 mit FIPS 140-2 Level 2)
- Verstärkte Widerstandsfähigkeit (IP66, IK10, NEMA4X)
Specifications
| Alarm inputs | 0 |
| Audio support | Yes |
| Resolution standard | 4 MP |
| Recording sensor | CMOS |
| Lighting | Infrared |
| Motion detector | Yes |
| Image transfer rate max. | 30 fps |
| Focal length | 3,2 - 10,2 mm |
| Chipgröße | 1/2,8'',Chip size,1/2,8'' |
| Digital Noise Reduction (DNR) | Yes |
| Color (Housing) | RAL9003 |
| Backlight compensation | Yes |
| Housing type | Outside |
| Housing material | Aluminium |
| Heating | Yes |
| Internal memory | microSD card slot |
| Camera Type | Multi-directional camera |
| Photosensitivity | 0,1 Lux bei F1,6 |
| Lens Type | Varifocal (motorized) |
| ONVIF | ONVIF Profile S,ONVIF Profile T,ONVIF Profile G,ONVIF Profile M |
| Power over Ethernet | IEEE 802.3bt,IEEE 802.3at |
| Protection | IP66 |
| Series | P-Serie |
| Control Interfaces | Ethernet |
| System | True Day&Night |
| Day/night switching | Switchable IR Filter (ICR) |
| Temperature Range (Operating) | -40°C ~ +55°C |
| Vandalism-resistant | Yes |
| Video Compression | H.265,H.264,M-JPEG |
| Wide Dynamic Range (WDR) | 120dB |
| Zoomfactor (optical) | 3.2 |
| Manufacturers sheet | Download PDF-document |
Login
Specifications
| Alarm inputs | 0 |
| Audio support | Yes |
| Resolution standard | 4 MP |
| Recording sensor | CMOS |
| Lighting | Infrared |
| Motion detector | Yes |
| Image transfer rate max. | 30 fps |
| Focal length | 3,2 - 10,2 mm |
| Chipgröße | 1/2,8'',Chip size,1/2,8'' |
| Digital Noise Reduction (DNR) | Yes |
| Color (Housing) | RAL9003 |
| Backlight compensation | Yes |
| Housing type | Outside |
| Housing material | Aluminium |
| Heating | Yes |
| Internal memory | microSD card slot |
| Camera Type | Multi-directional camera |
| Photosensitivity | 0,1 Lux bei F1,6 |
| Lens Type | Varifocal (motorized) |
| ONVIF | ONVIF Profile S,ONVIF Profile T,ONVIF Profile G,ONVIF Profile M |
| Power over Ethernet | IEEE 802.3bt,IEEE 802.3at |
| Protection | IP66 |
| Series | P-Serie |
| Control Interfaces | Ethernet |
| System | True Day&Night |
| Day/night switching | Switchable IR Filter (ICR) |
| Temperature Range (Operating) | -40°C ~ +55°C |
| Vandalism-resistant | Yes |
| Video Compression | H.265,H.264,M-JPEG |
| Wide Dynamic Range (WDR) | 120dB |
| Zoomfactor (optical) | 3.2 |
| Manufacturers sheet | Download PDF-document |
