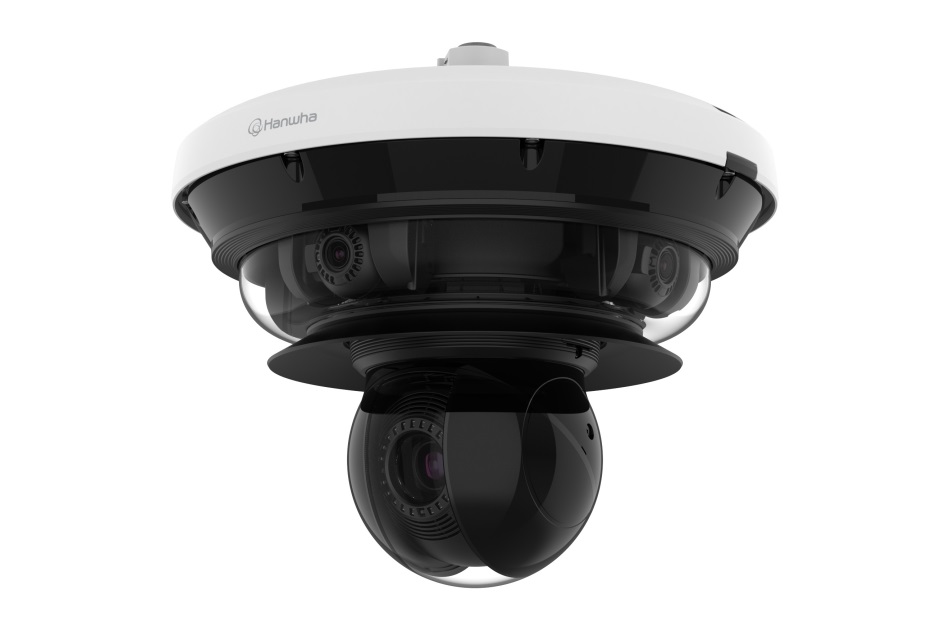

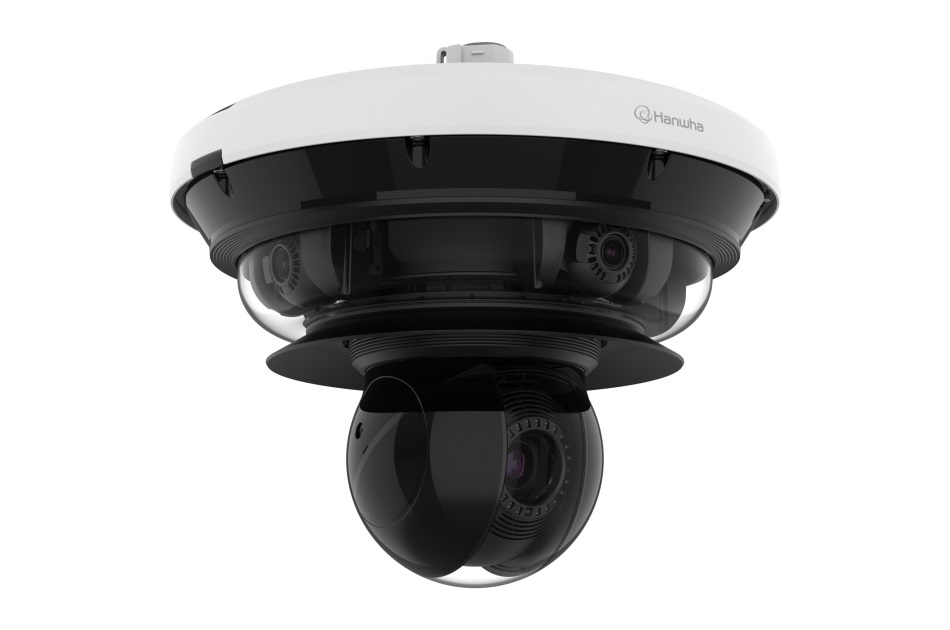

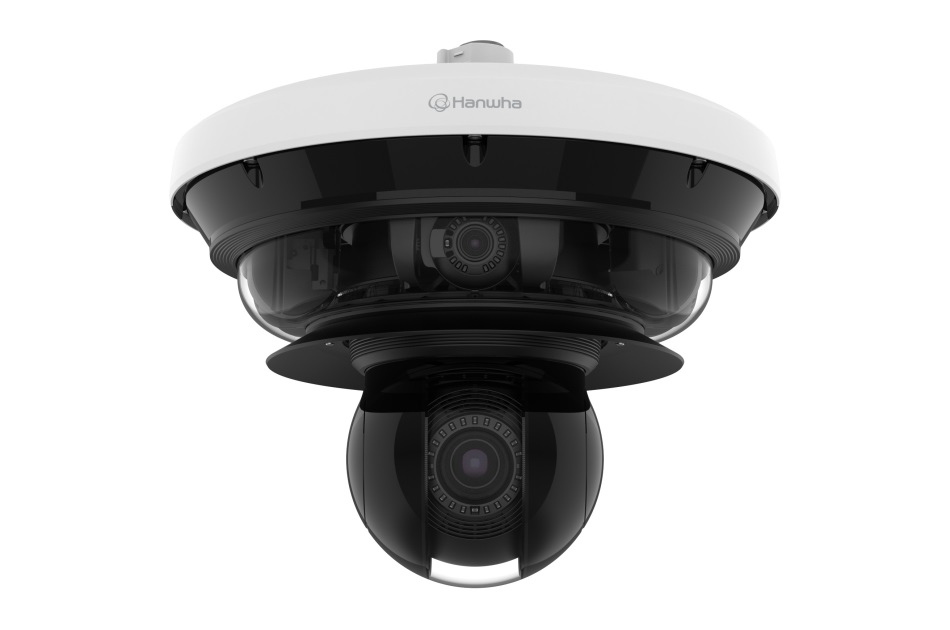

Hanwha Vision - PNM-C34404RQPZ
Delivery Time 2-3 weeks
Netzwerk Multidirektionale Kamera, 32MP, 4 x 4K, IR, 3,3-5,7mm MVF, PTZ 40x, WDR, IP66, IK10, HiPoE
read more
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270
Product information "Hanwha Vision - PNM-C34404RQPZ"
Product availability information:
The item is ordered especially for you. The following is non-binding and subject to storage and delivery information from our suppliers:
- In stock: 0
- Expectation: 0
- Replacement time: 10 days
- Last update: 18.08.2025 - subject to prior sale
Kameratechnik - PTZ Domes - Hanwha Vision - PNM-C34404RQPZ
Netzwerk Multidirektionale Kamera, 32MP, 4 x 4K, IR, 3,3-5,7mm MVF, PTZ 40x, WDR, IP66, IK10, HiPoE
Manufacturer datasheet
Hauptmerkmale
- 32MP, 4x 4K Multidirektionale Kamera, eine IP-Adresse
- 2MP PTZ AI Kamera mit 40x Optisches Zoom
- Bildrate 20fps@8MP (H.265, H.264) AI Off
- Motorisiertes Varifokalobjektiv 3,3~5,7mm
- USB-Anschluss für einfache Installation
- Analytische Ereignisse basierend auf AI-Engine:
- Objekterkennung (Person/Fahrzeug) und IVA
- AI-basierte Erkennung Herumlungern und Linienüberquerungen
- WiseNRII und WiseStreamIII (basierend auf AI-Engine)
- I/O Box Kompatibilität für Audio & Alarm I/O
- HPoE Stromversorgung, Injector im Lieferumfang
- Hartbeschichtete Kuppel, IP66, IK10
Specifications
| Audio support | No |
| Resolution standard | 4 MP |
| Recording sensor | CMOS |
| Lighting | Infrared |
| Motion detector | Yes |
| Image resolution max. | 3840x2160 |
| Image transfer rate max. | 20 fps |
| Focal length | 3,3 - 5,7 mm |
| Chipgröße | 1/2,8\'';Chip size;1/2,8\'' |
| Digital Noise Reduction (DNR) | Yes |
| Color (Housing) | RAL9003 |
| Backlight compensation | Yes |
| Housing type | Outside |
| Housing material | Aluminium |
| Heating | Yes |
| Internal memory | microSD card slot |
| Camera Type | Multidirectional camera with PTZ |
| Photosensitivity | 0,1 Lux @ F1,5 |
| Low Speed Shutter | No |
| Mounting type | Ceiling |
| Lens Type | Varifocal (motorized),Zoom |
| ONVIF | ONVIF Profile S,ONVIF Profile T |
| Power over Ethernet | HiPoE,IEEE 802.3bt |
| Protection | IP66 |
| Series | P-Serie |
| Control Interfaces | Ethernet |
| System | True Day&Night |
| Day/night switching | Switchable IR Filter (ICR) |
| Temperature Range (Operating) | -40°C ~ +50°C |
| Vandalism-resistant | Yes |
| Video Compression | H.265,H.264,M-JPEG |
| Wide Dynamic Range (WDR) | 120dB |
| Wiper | No |
| Certifications | IK10 |
| Zoomfactor (optical) | 40 |
| Manufacturers sheet | Download PDF-document |
Login
Specifications
| Audio support | No |
| Resolution standard | 4 MP |
| Recording sensor | CMOS |
| Lighting | Infrared |
| Motion detector | Yes |
| Image resolution max. | 3840x2160 |
| Image transfer rate max. | 20 fps |
| Focal length | 3,3 - 5,7 mm |
| Chipgröße | 1/2,8\'';Chip size;1/2,8\'' |
| Digital Noise Reduction (DNR) | Yes |
| Color (Housing) | RAL9003 |
| Backlight compensation | Yes |
| Housing type | Outside |
| Housing material | Aluminium |
| Heating | Yes |
| Internal memory | microSD card slot |
| Camera Type | Multidirectional camera with PTZ |
| Photosensitivity | 0,1 Lux @ F1,5 |
| Low Speed Shutter | No |
| Mounting type | Ceiling |
| Lens Type | Varifocal (motorized),Zoom |
| ONVIF | ONVIF Profile S,ONVIF Profile T |
| Power over Ethernet | HiPoE,IEEE 802.3bt |
| Protection | IP66 |
| Series | P-Serie |
| Control Interfaces | Ethernet |
| System | True Day&Night |
| Day/night switching | Switchable IR Filter (ICR) |
| Temperature Range (Operating) | -40°C ~ +50°C |
| Vandalism-resistant | Yes |
| Video Compression | H.265,H.264,M-JPEG |
| Wide Dynamic Range (WDR) | 120dB |
| Wiper | No |
| Certifications | IK10 |
| Zoomfactor (optical) | 40 |
| Manufacturers sheet | Download PDF-document |
