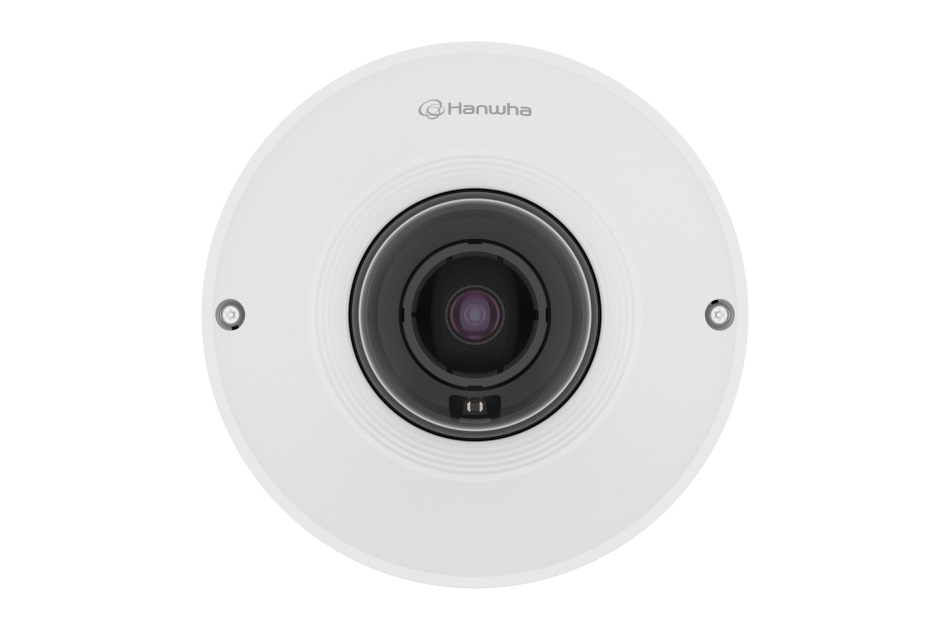

Hanwha Vision - QNF-C9010V
Delivery Time 2-3 weeks
1/1,6'' Netzwerk Dome, Fix, Fisheye, Außen, Tag/Nacht, 3008x3008, Objektiv 1,76mm, WDR, PoE, IP66, IK10, NEMA 4X
read more
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270
Product information "Hanwha Vision - QNF-C9010V"
Product availability information:
The item is ordered especially for you. The following is non-binding and subject to storage and delivery information from our suppliers:
- In stock: 0
- Expectation: 0
- Replacement time: 10 days
- Last update: 08.09.2025 - subject to prior sale
Kameratechnik - Panorama - Hanwha Vision - QNF-C9010V
1/1,6'' Netzwerk Dome, Fix, Fisheye, Außen, Tag/Nacht, 3008x3008, Objektiv 1,76mm, WDR, PoE, IP66, IK10, NEMA 4X
Manufacturer datasheet
Hauptmerkmale
- 12MP CMOS AI FishEye Kamera
- 1,76 mm festes Stereo-Grafikobjektiv
- Originalansicht: Max. 20fps@3008x3008
- Doppel-Panorama: Max. 20fps@3584x1792
- Einzel-Panorama: Max. 20fps@3584x896
- Vierfach-Ansicht: Max. 20fps@3584x2688
- Tag & Nacht (ICR), WDR (120dB), WiseNR II (mit AI-Engine)
- H.265, H.264, MJPEG, WiseStream
- Analytische Ereignisse basierend auf AI-Engine
- Objekterkennung (Person/Fahrzeug)
- Bewegungserkennung, Virtuelle Linie (Kreuzung/Richtung),
- IP66, IK10, NEMA4X, PoE max. 7,3W
Specifications
| Resolution standard | 12 MP |
| Recording sensor | CMOS |
| Image resolution max. | 3008x3008 |
| Image transfer rate max. | 20 fps |
| Focal length | 1,76 mm |
| Digital Noise Reduction (DNR) | Yes |
| Color (Housing) | weiß |
| Backlight compensation | Yes |
| Housing type | Outside |
| Housing material | Aluminium |
| Heating | Yes |
| Internal memory | microSD card slot |
| Camera Type | Fisheye Camera |
| Lens Type | Prime lens |
| ONVIF | ONVIF Profile S,ONVIF Profile G,ONVIF Profile T,ONVIF Profile M |
| Power over Ethernet | IEEE 802.3af |
| Protection | IP66 |
| Series | Wisenet Q |
| Control Interfaces | Ethernet |
| System | True Day&Night |
| Day/night switching | Switchable IR Filter (ICR) |
| Temperature Range (Operating) | -40°C ~ +55°C |
| Vandalism-resistant | Yes |
| Video Compression | H.265,H.264,M-JPEG |
| Wide Dynamic Range (WDR) | 120dB |
| Manufacturers sheet | Download PDF-document |
