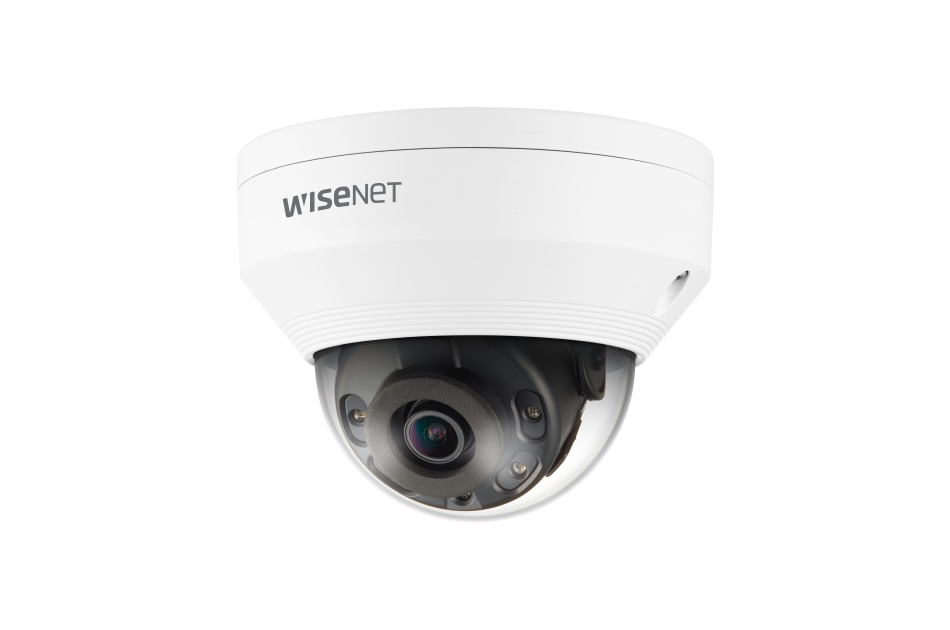

Hanwha Vision - QNV-6022R1
Delivery Time - look at hints
Netzwerk Dome, Fix, Tag/Nacht, 1920x1280, 4mm, Infrarot, IK10, IP66
read more
€352.72
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270
Product information "Hanwha Vision - QNV-6022R1"
Netzwerk Dome, Fix, Tag/Nacht, 1920x1280, 4mm, Infrarot, IK10, IP66
Manufacturer number: QNV-6022R1
Download manufacturer datasheet
Main features
- 1/2,8'' 2MP CMOS Netzwerk Fixdome
- Full-HD Auflösung 1920x1080@30fps
- Objektiv mit 4mm Festbrennweite
- H.265/H.264/MJPEG Codec mit Multiple Streaming
- WiseStream II für bessere Bandbreitennutzung
- Wide Dynamic Range mit 120dB Dynamik
- True Day&Night mit umschaltbarem IR Sperrfilter
- Hallway View (90°/270°), keine Audiounterstützung
- Integrierte IR-Beleuchtung Sichtweite bis zu 25m
- Edge Storage (micro SD/SDHC/SDXC 128GB, NAS)
- Stromversorgung PoE (IEEE802.3af, Class3), 12VDC
- Für Außen, Schutzklasse IP66, IK10, Farbe: Weiß
Spezifications
| Alarm inputs | 1 |
| Resolution standard | 2 MP |
| Recording sensor | CMOS |
| Lighting | Infrared |
| Motion detector | Yes |
| Image resolution max. | 1920x1080 |
| Image transfer rate max. | 30 fps |
| Horizontal angle of view | 87,6° |
| Focal length | 4 mm |
| Chip size | 1/2,8'' |
| Digital Noise Reduction (DNR) | Yes |
| Color (Housing) | weiß,RAL9003 |
| Color (dome) | clear |
| Backlight compensation | Yes |
| Housing type | Outside |
| Housing material | Aluminium |
| Heating | Yes |
| Internal memory | microSD card slot |
| Photosensitivity | 0,03 Lux bei F1,6 |
| Mounting type | Ceiling,Wall |
| Lens Type | Prime lens |
| ONVIF | ONVIF Profile S,ONVIF Profile G,ONVIF Profile T |
| Power over Ethernet | IEEE 802.3af |
| Protection | IP66 |
| Series | Wisenet Q |
| Control Interfaces | no |
| Power supply | Poe,12VDC |
| System | True Day&Night |
| Day/night switching | Switchable IR Filter (ICR) |
| Temperature Range (Operating) | -30°C ~ +55°C |
| Vandalism-resistant | Yes |
| Video Compression | H.265,H.264,M-JPEG |
| Wide Dynamic Range (WDR) | WDR 120dB |
| Certifications | IK10 |
| Zoom Factor (Digital) | 0 |
