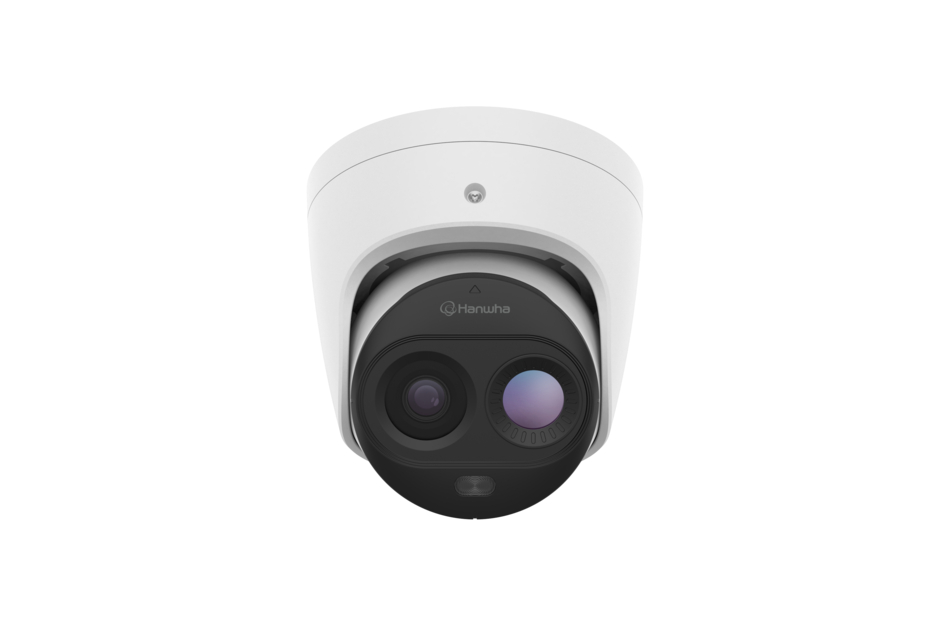

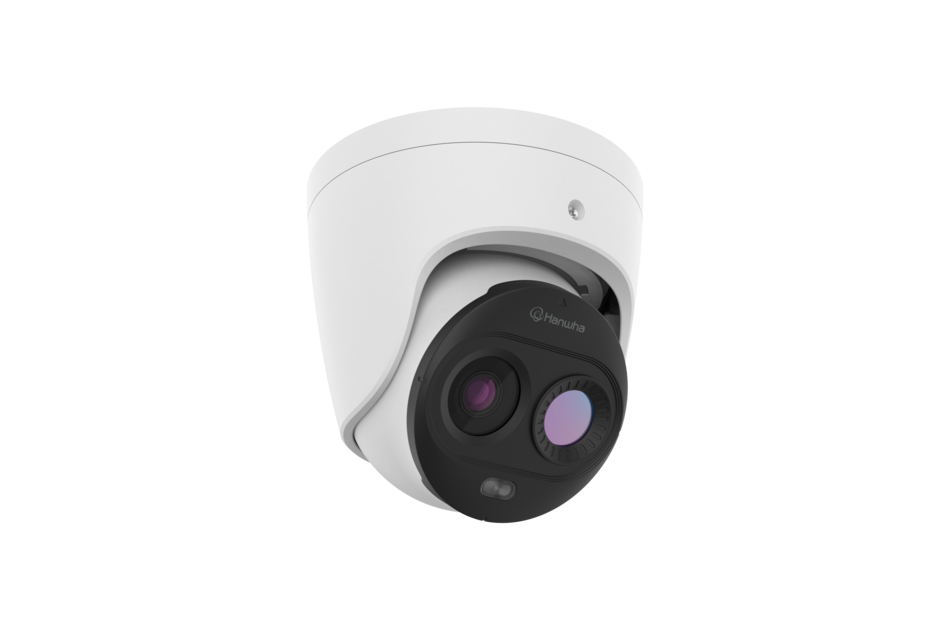

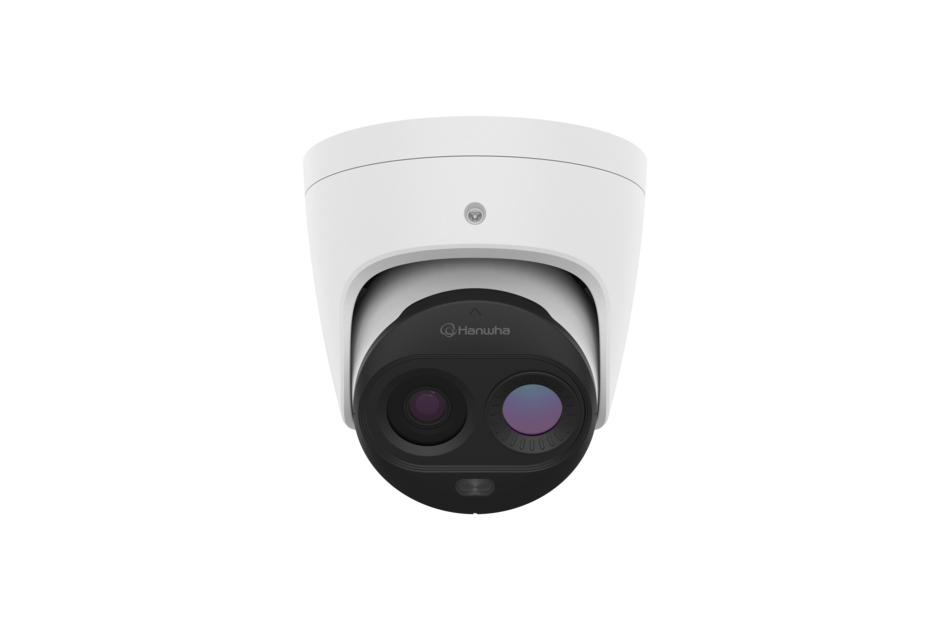

Hanwha Vision - TNM-C2722TDR
Delivery Time - look at hints
Bi-Spektrum KI-Wärmebildkamera, QQVGA 1,9mm 8fps, 3MP 4,46mm 30fps, H.265, PoE
read more
€2,882.78
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270
Product information "Hanwha Vision - TNM-C2722TDR"
Bi-Spektrum KI-Wärmebildkamera, QQVGA 1,9mm 8fps, 3MP 4,46mm 30fps, H.265, PoE
Manufacturer number: TNM-C2722TDR
Download manufacturer datasheet
Main features
- `Bi-Spektrum-Hybrid Kamera `
- QQVGA-Wärmebildsensor und 3-MP-Sichtbarlicht-Sensor
- Max. Bildrate: Sichtbarlicht 30 fps, Wärmebild 8 fps
- `Blickwinkel: Wärmebild H: 57° / V: 44° / D: 71° `
- Blickwinkel: Sichtbarlicht H: 69° / V: 50,8° / D: 88,9°
- Früherkennung von Bränden
- Analytikereignisse basierend auf KI-Engine
- `Temperaturerfassungsbereich -10 °C bis 450 °C `
- Temperaturdifferenzerkennung
- IP66/IP67, IK09 (außer Frontlinsen)
- PoE: max. 10,8 W, typisch 6,2 W
Spezifications
| Alarm inputs | 1 |
| Audio support | Yes |
| Recording sensor | Uncooled VOx Microbolometer,CMOS |
| Motion detector | Yes |
| Image transfer rate max. | 8 fps |
| Focal length | 1,9 mm,4,46 mm |
| Housing type | Aluminium |
| Housing material | Aluminium |
| Camera Type | Bi-Spectral |
| Power consumption | 11 W |
| Lens Type | Prime lens |
| Power over Ethernet | IEEE 802.3af |
| Protection | IP66/67 |
| Series | Wisenet T,Wisenet 9 |
| System | Thermal image,True Day&Night |
| Thermal resolution | 160x120 |
| Vandalism-resistant | Yes |
Product availability information:
The item is ordered especially for you, so it is not possible for return, withdrawal or cancellation. The following is non-binding and subject to storage and delivery information from our suppliers:
In stock: 1, Expectation: 0, Replacement time: 10 days (Last update: 13.04.2026) - subject to prior sale
