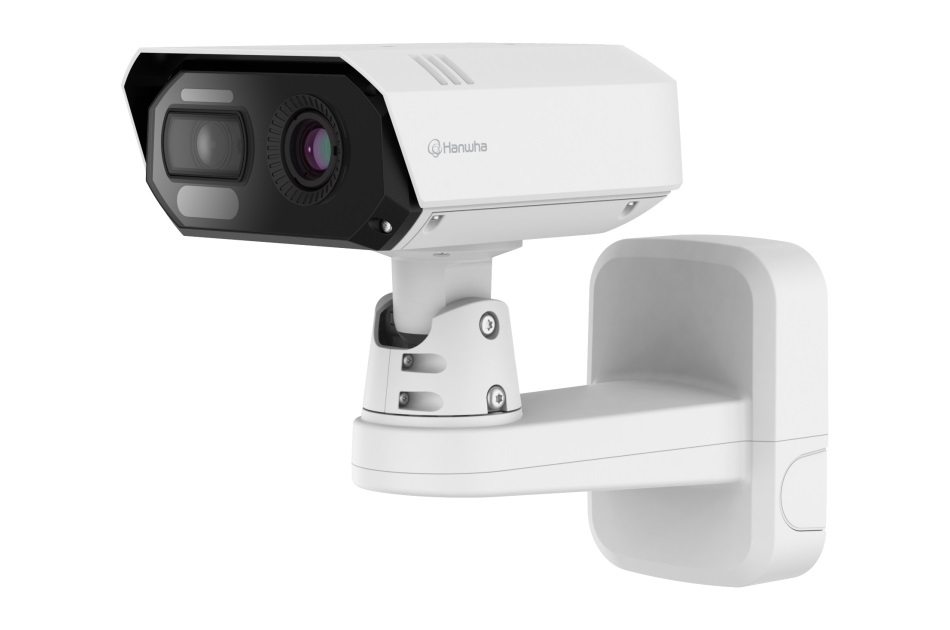

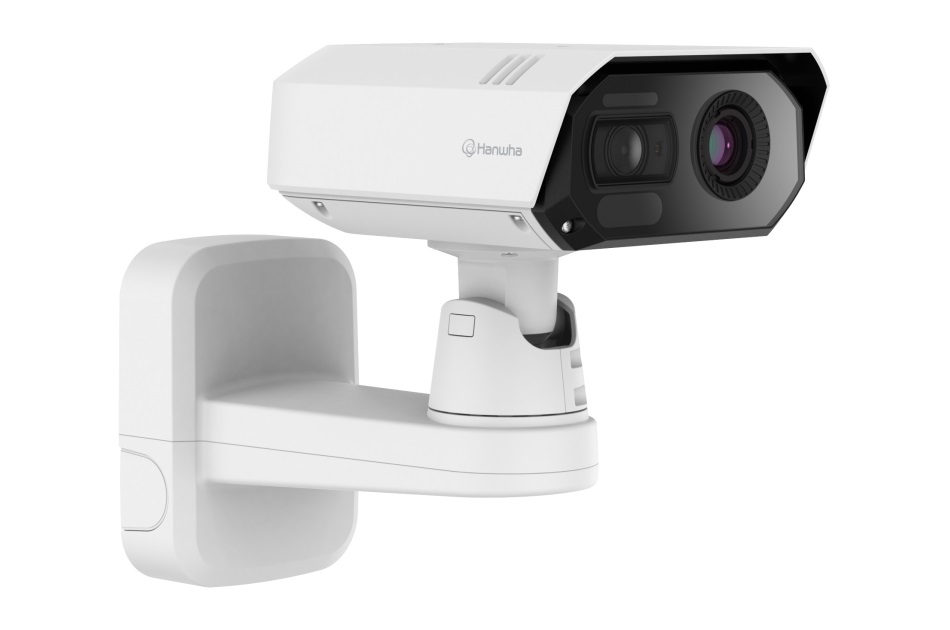

Hanwha Vision - TNM-C4940TDR
Delivery Time - look at hints
Bi-Spektrum KI-Wärmebildkamera, VGA 9,1mm 30fps, 8M MVF 4,4-9,3mm 30fps, IP66/67, IK10, PoE+, 12VDC
read more
€12,944.23
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270
Product information "Hanwha Vision - TNM-C4940TDR"
Bi-Spektrum KI-Wärmebildkamera, VGA 9,1mm 30fps, 8M MVF 4,4-9,3mm 30fps, IP66/67, IK10, PoE+, 12VDC
Manufacturer number: TNM-C4940TDR
Download manufacturer datasheet
Main features
- Bi-Spektrum: VGA-Wärmebild- & 8MP-Sensor sichtbar
- Maximal 30 fps bei allen Auflösungen (H.265/H.264)
- Objektiv thermisch: 9,1 mm feste Brennweite
- Objektiv sichtbar: 4,4-9,3 mm motorisiertes Varioobjektiv
- Videoanalyse basierend auf KI (sichtbar)
- AI-basierte Objektklassifizierung mit beiden Kanälen (Person/Fahrzeug)
- Fernüberwachung der Temperatur im Bereich von -20 ~ 130°C
- 10 polygonale ROI-Bereiche für die Temperaturüberwachung
- IP66/IP67,IK10, NEMA4X
- PoE+ (IEEE802.3at), 12 V Gleichspannung
- Verbesserte All-in-One-Installationslösung (Wand & Mast)
Spezifications
| Alarm inputs | 0 |
| Audio support | Yes |
| Image resolution max. | 3840x2160 |
| Image transfer rate max. | 30 fps |
| Vertical angle of view | [-8,+8] |
| Focal length | 9,1 mm,4,4 - 9,3 mm |
| Digital Noise Reduction (DNR) | Yes |
| Color (Housing) | weiß |
| Housing type | Outside |
| Housing material | Aluminium |
| Heating | Yes |
| Internal memory | microSD card slot |
| Camera Type | Bi-Spectral |
| Mounting type | Wall,Mast mounting |
| Lens Type | Prime lens,Varifocal (motorized) |
| ONVIF | ONVIF Profile S,ONVIF Profile T,ONVIF Profile M |
| Protection | IP66/67 |
| Series | Wisenet T |
| Control Interfaces | Ethernet |
| Power supply | 12VDC |
| System | True Day&Night |
| Temperature Range (Operating) | -40°C ~ +60°C |
| Thermal resolution | 640x480 |
| Vandalism-resistant | Yes |
| Video Compression | H.265,H.264,M-JPEG |
