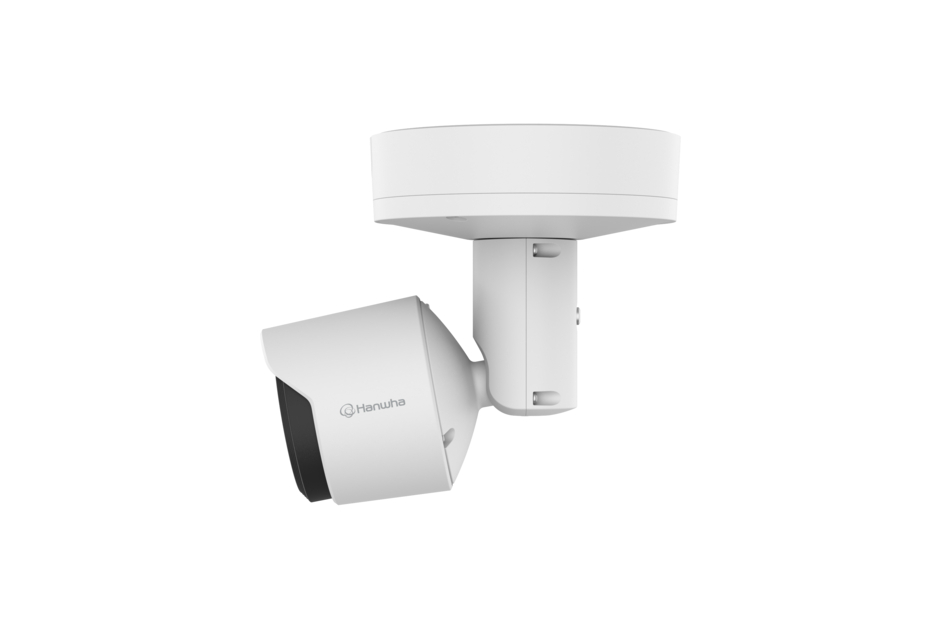

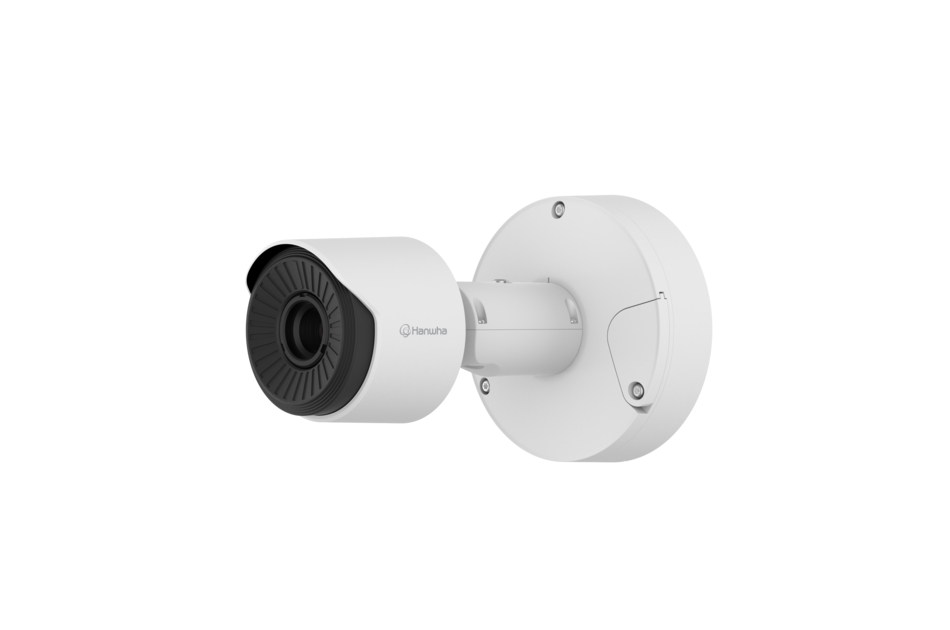

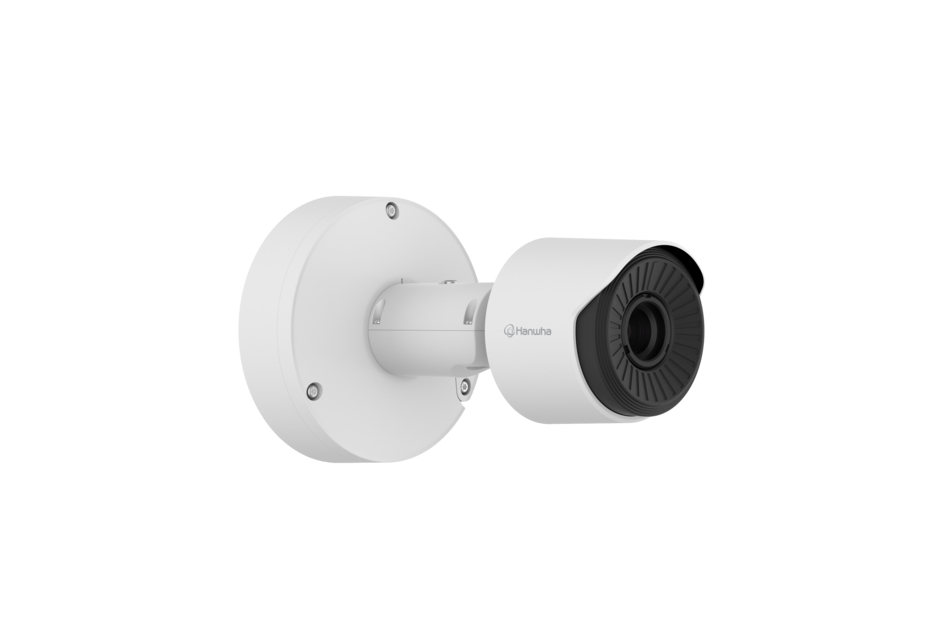

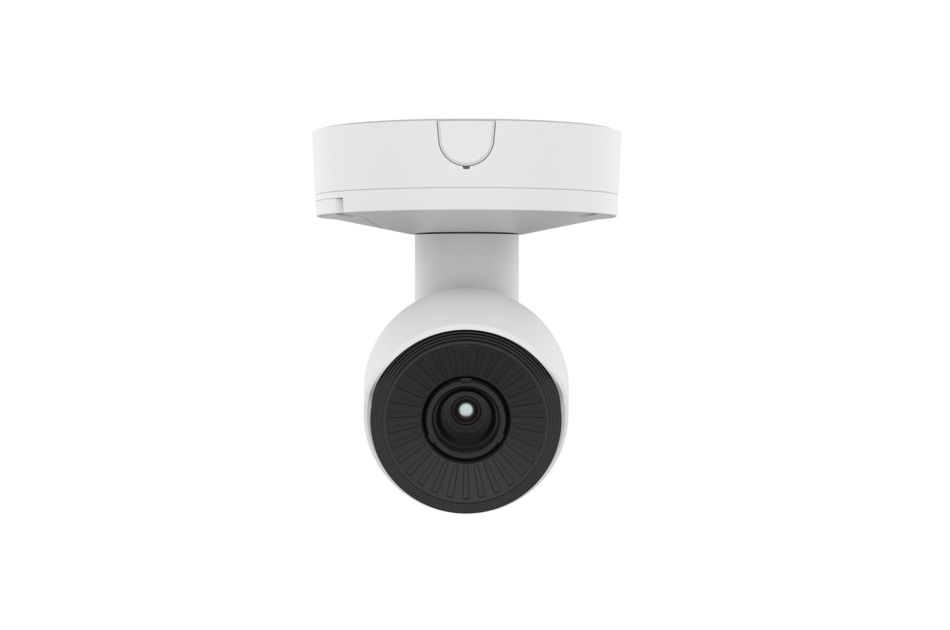

Hanwha Vision - TNO-C3042T
Delivery Time - look at hints
Wärmebild Netzwerk Kamera, 13mm, QVGA-Auflösung, AI, max. 8fps, IP66/67, IK10, NEMA4X, PoE, 12VDC
read more
€5,236.00
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270
Product information "Hanwha Vision - TNO-C3042T"
Wärmebild Netzwerk Kamera, 13mm, QVGA-Auflösung, AI, max. 8fps, IP66/67, IK10, NEMA4X, PoE, 12VDC
Manufacturer number: TNO-C3042T
Download manufacturer datasheet
Main features
- QVGA-Auflösung (384 x 288, 17 µm)
- 13mm Teleobjektiv
- Hohe thermische Empfindlichkeit (NETD 20 mK bei 25 °C)
- KI-basierte Objektklassifizierung (Person, Fahrzeug)
- Max. 8fps (H.265/H.264/MJPEG)
- IP66/67, IK10, NEMA4X, NEMA-TS2, MIL-STD-810H
- Sicherheitselement mit FIPS 140-3 Level 3, CC EAL6+
Spezifications
| Alarm inputs | 2 |
| Audio support | Yes |
| Recording sensor | Uncooled VOx Microbolometer |
| Image transfer rate max. | 8 fps |
| Horizontal angle of view | 28,5° |
| Vertical angle of view | 21,4° |
| Focal length | 13 mm |
| Housing material | Aluminium |
| Camera Type | Bullet Camera |
| Power consumption | 11 W |
| Lens Type | Prime lens |
| ONVIF | ONVIF Profile G,ONVIF Profile M,ONVIF Profile S,ONVIF Profile T |
| Power over Ethernet | IEEE 802.3af |
| Protection | IP66/67 |
| Series | Wisenet T |
| Power supply | 12VDC |
| System | Thermal image |
| Temperature Range (Operating) | -40°C ~ +60°C |
| Thermal resolution | 384x288 |
| Vandalism-resistant | Yes |
| Video Compression | H.264,H.265,MJPEG |
