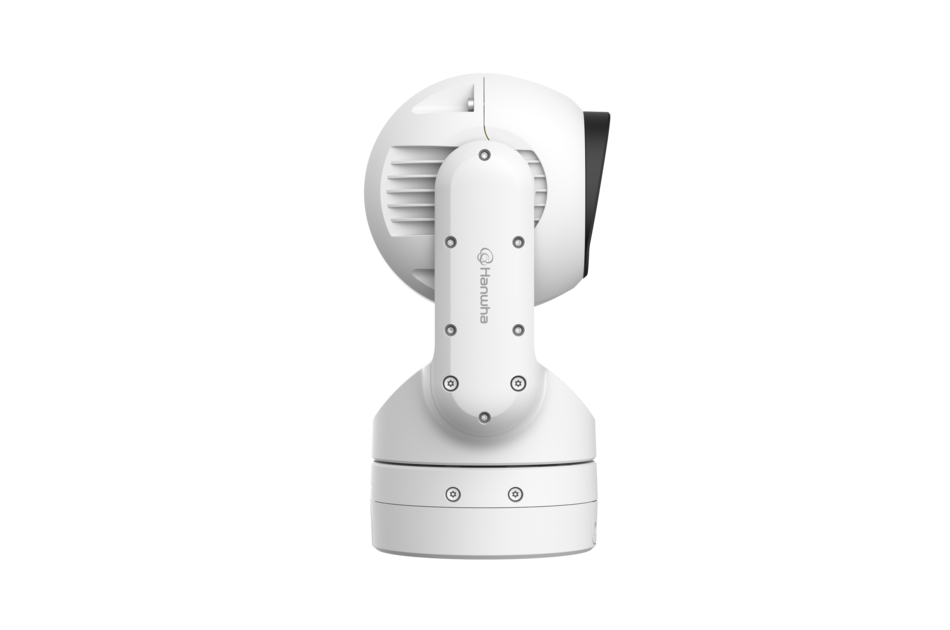

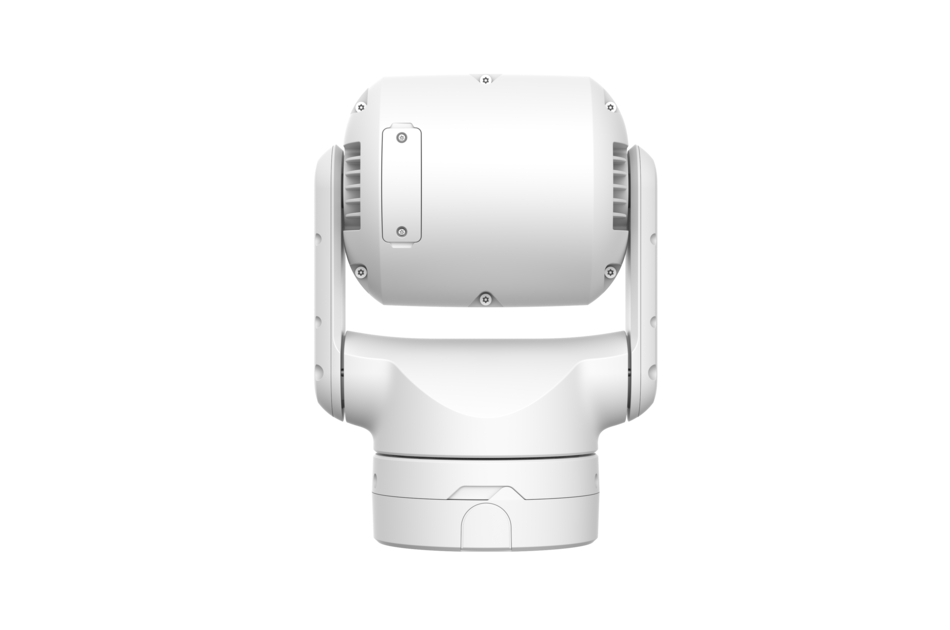

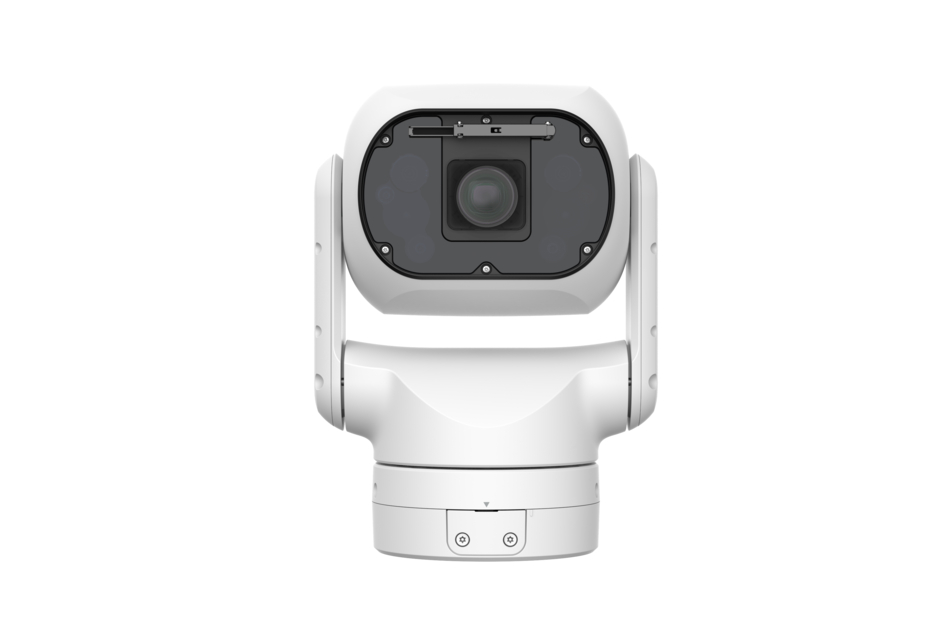

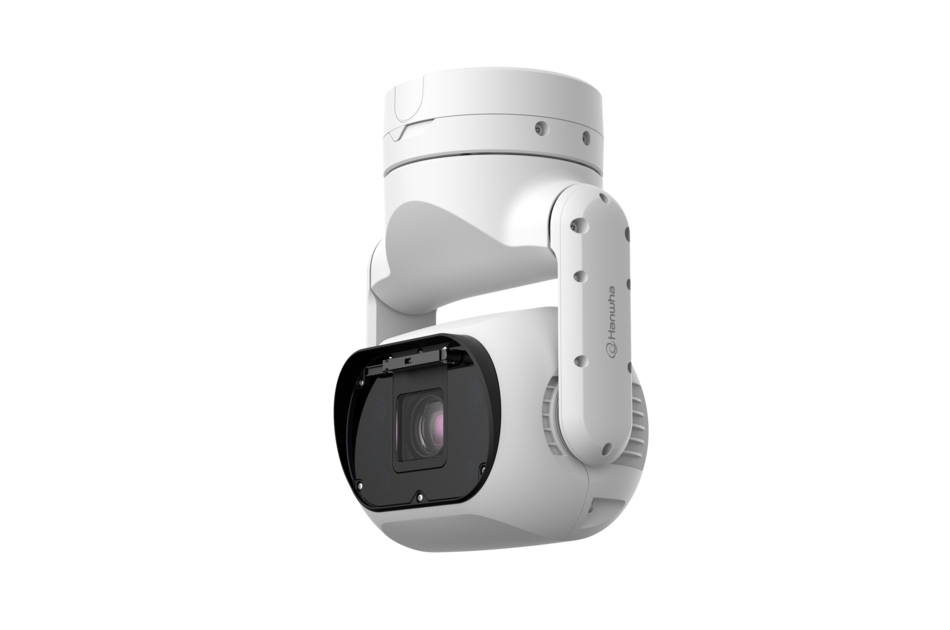

Product information "Hanwha Vision - TNP-A7430RW"

1/1.8'' 4MP AI PTZ-Kamera für robuste Anwendungen, Motorzoom Objektiv 43x, 6,5-253,5mm, HPoE, IR-LED, IP66/IP68, IK10, NEMA4X

Manufacturer number: TNP-A7430RW
Download manufacturer datasheet


Main features

  • Auflösung maximal 4 MP, 43-fach Objektiv
  • Unterstützt optische Bildstabilisierung
  • IP66, IP68, NEMA4X
  • NEMA TS-2 (2.2.7.2-8, 2.2.8, 2.2.9)
  • IR-Sichtweite 450 m
  • Windlast max. 160 mph
  • Betriebstemperatur: -50 bis 60°C
  • Analytische Ereignisse basierend auf KI-Engine:
  • Objekterkennung (Person/Gesicht/Fahrzeug/Kennzeichen),
  • Unterstützt BestShot und vollständige Attribute
  • Unterstützt dynamische Privatsphärenmaskierung
  • extremeWDR, WiseNR II basierend auf KI-Engine



Spezifications

Recording sensorCMOS
LightingInfrared
Image transfer rate max.60 fps
Focal length6,5-253,5mm
Turning range360 °
Color (Housing)RAL9003
Backlight compensationYes
Speed (manual control)120 °/sec
Speed (Target Approach)120 °/sec
Internal memorymicroSD card
Camera TypeMultidirectional camera with PTZ
Power consumption71 W
Lens TypeAuto Focus Zoom
ONVIFONVIF Profile G,ONVIF Profile M,ONVIF Profile S,ONVIF Profile T
Power over EthernetIEEE 802.3bt
ProtectionIP66,IP68
SeriesWisenet T,Wisenet 9
Power supplyPoE++
System24h Color
Temperature Range (Operating)-50°C~+60°C
Vandalism-resistantYes
Wide Dynamic Range (WDR)120dB
Zoomfactor (optical)43
Hints

Product availability information:
The item is ordered especially for you, so it is not possible for return, withdrawal or cancellation. The following is non-binding and subject to storage and delivery information from our suppliers:

Delivery time on request (Last update: 30.11.2025) - subject to prior sale
