Hanwha Vision - TNU-6322E
Delivery Time - look at hints
Netzwerk Positioniersystem, Ex geschützt, 1920x1080, IP67, IK10, 4,44-142,6mm, Infrarot
read more
€29,056.11
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270

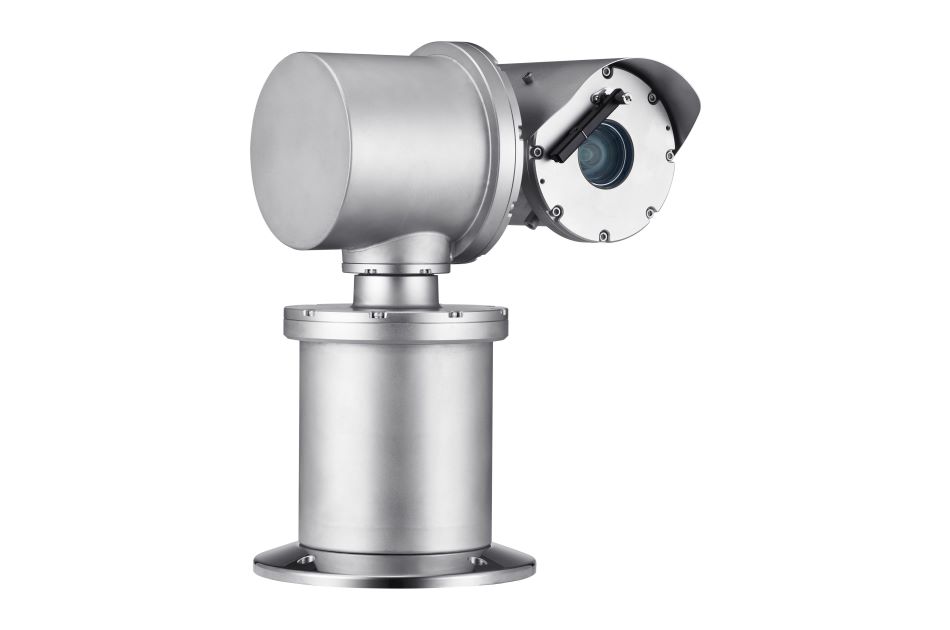

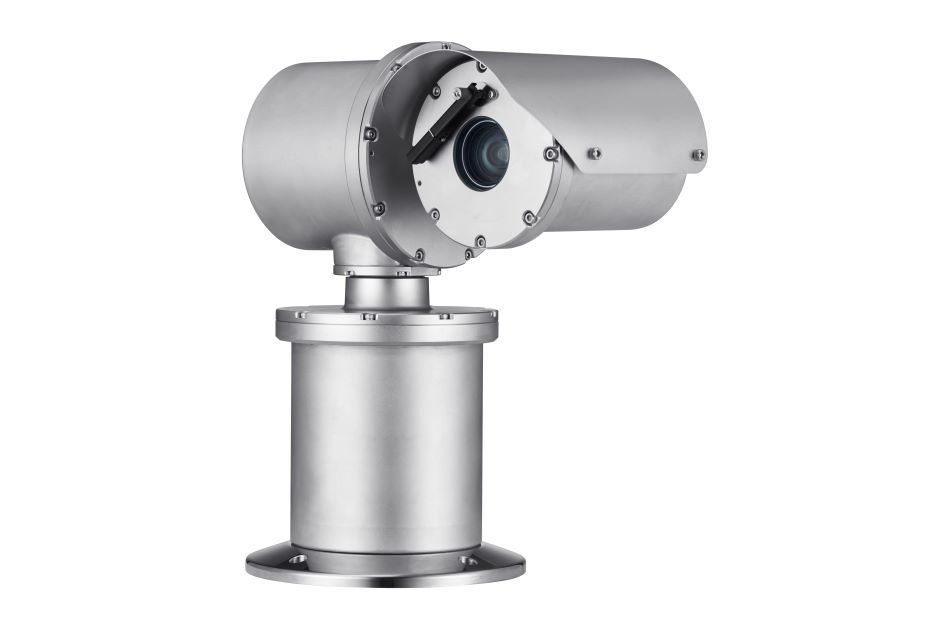

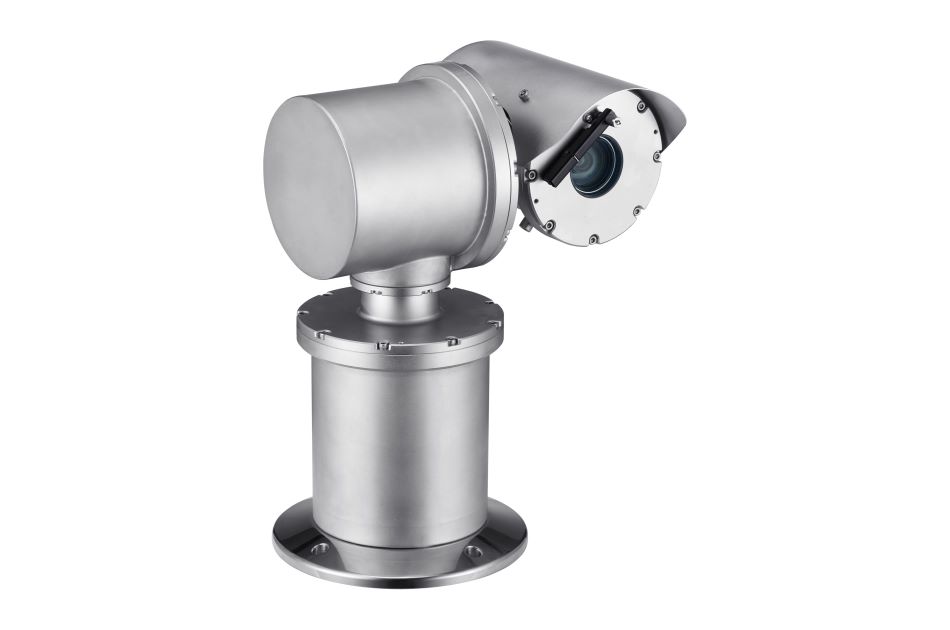

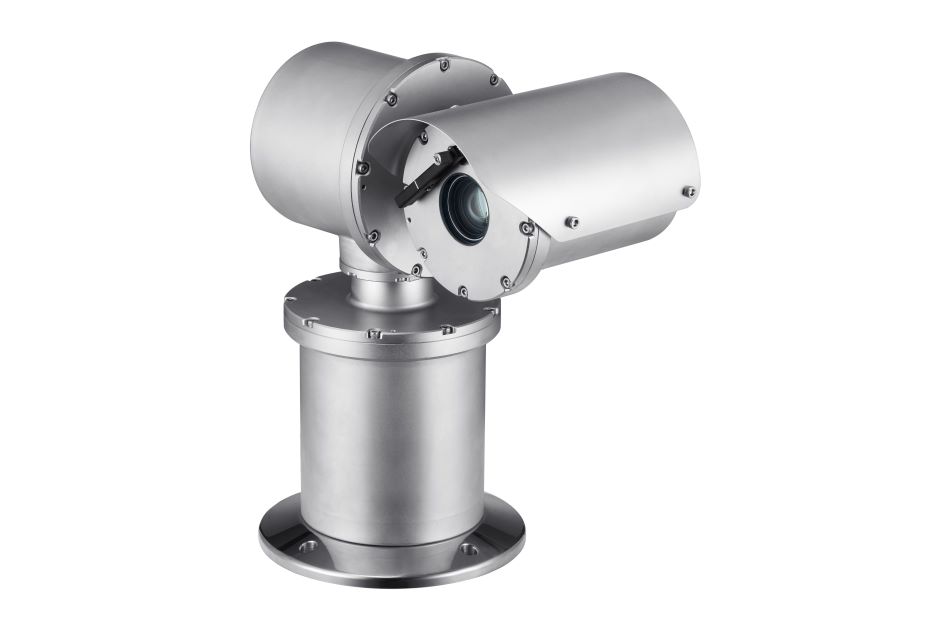

Product information "Hanwha Vision - TNU-6322E"
Netzwerk Positioniersystem, Ex geschützt, 1920x1080, IP67, IK10, 4,44-142,6mm, Infrarot
Manufacturer number: TNU-6322E
Download manufacturer datasheet
Main features
- Explosionsgeschütztes Netzwerk Positioniersystem
- Full HD Auflösung 1920x1080@50fps (H.265)
- 4,44-142,6mm, 32x optischer Zoom
- Lichtempfindlichkeit 0,05Lux (F1,6, Farbe)
- Pan/Tilt: 0.5/s ~80/s, 360° Endless
- True Day&Night mit umschaltbarem IR Sperrfilter
- Wide Dynamic Range (120dB), SSNR V
- Gehäusematerial: Edelstahl 316L
- Stromversorgung: 24V AC, Wischer integriert
- Für Außen, -40°C bis +60°C, IP67, IK10
- Zertifizierungen: IECEx, ATEX, KCs, KC
Spezifications
| Alarm inputs | 1 |
| Recording sensor | CMOS |
| Lighting | no |
| Image resolution max. | 1920x1080 |
| Image transfer rate max. | 50 fps |
| Horizontal angle of view | 61,8 - 2,19° |
| Vertical angle of view | [-8,+8] |
| Focal length | 4,44 - 142,6 mm |
| Digital Noise Reduction (DNR) | Yes |
| Turning range | 360 ° |
| Color (Housing) | Edelstahl |
| Housing type | Explosion-proof |
| Housing material | Stainless steel |
| Heating | Yes |
| Camera Type | Explosion-proof |
| Protection | IP67 |
| Series | Wisenet T |
| Control Interfaces | Ethernet |
| Power supply | 24VAC |
| System | True Day&Night |
| Temperature Range (Operating) | -40°C ~ +60°C |
| Certifications | IK10,ATEX,IECEx |
| Zoomfactor (optical) | 32 |
