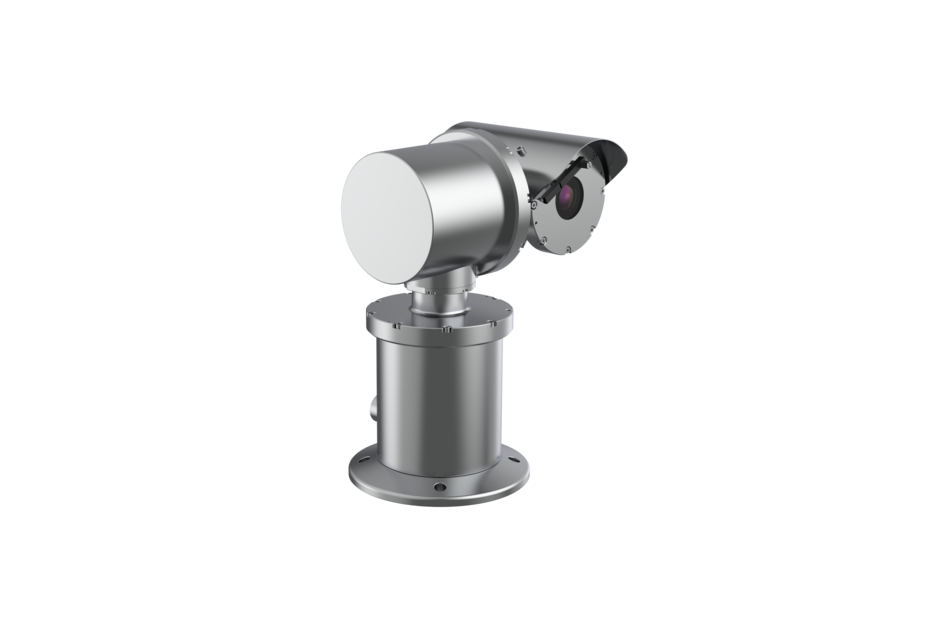

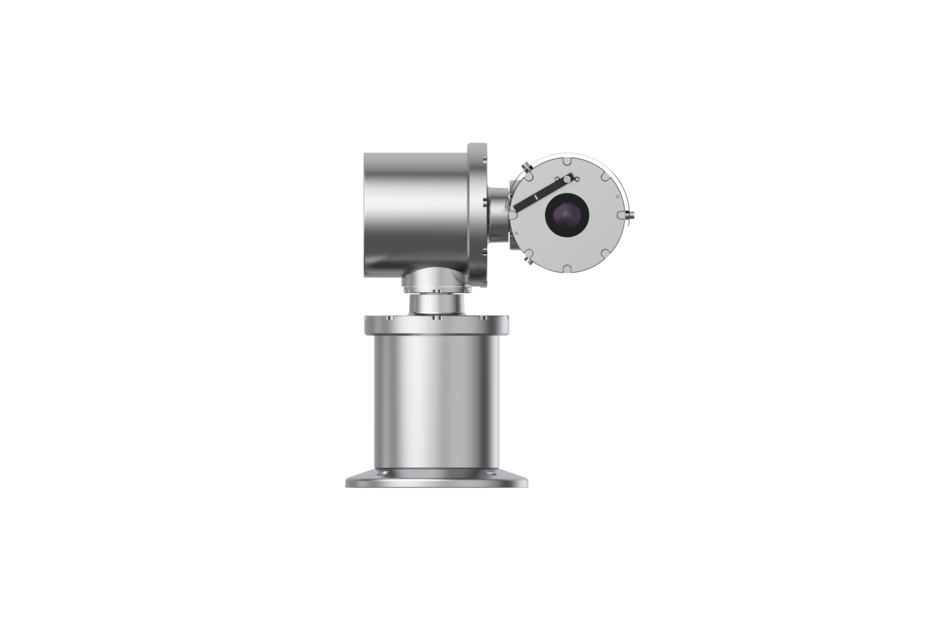

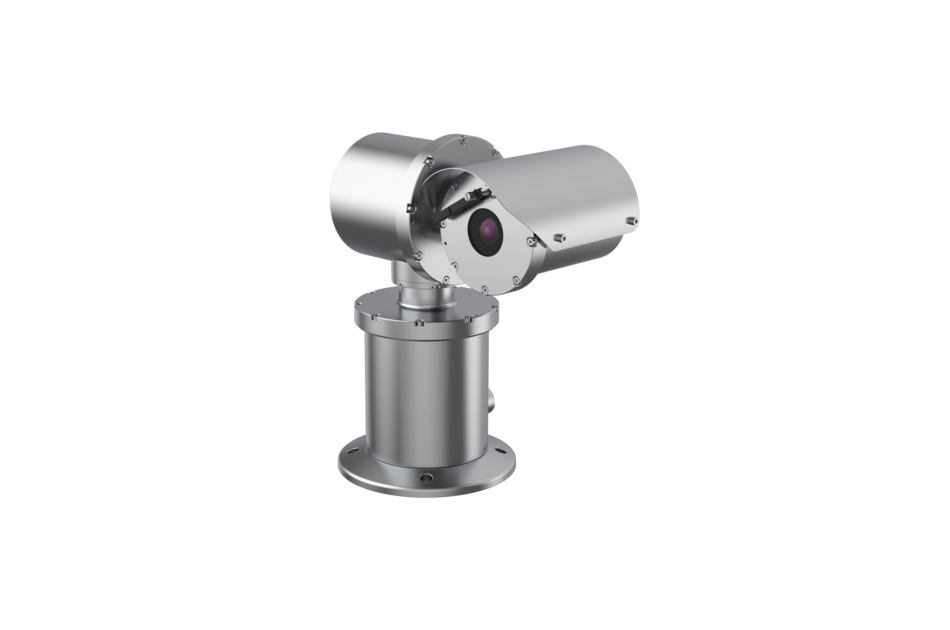

Hanwha Vision - TNU-6324E

Item no.: 245380

Vendor item no.: TNU-6324E

Delivery Time - look at hints

Netzwerk Positioniersystem, Ex geschützt 1920x1080, 32x Zoom, 4,44-142,6mm IP67, IK10, Edelstahl, Wischer, 24VAC
read more

€26,445.37

Where else cheaper?
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270

Product information "Hanwha Vision - TNU-6324E"

Netzwerk Positioniersystem, Ex geschützt 1920x1080, 32x Zoom, 4,44-142,6mm IP67, IK10, Edelstahl, Wischer, 24VAC

Manufacturer number: TNU-6324E
Download manufacturer datasheet

Main features

Max. Auflösung 2 MP (1920 x 1080)
H: 64,66° (Weitwinkel) bis 2,29° (Tele)
V: 38,08° (Weitwinkel) bis 1,30° (Tele)
Max. 60 fps bei 2 MP (H.265, H.264)
H.265, H.264, MJPEG-Codec, WiseStream II
Tag & Nacht (Auto-ICR), WDR (120 dB)
Schwenken/Neigen: 0,1°/Sek. ~40°/Sek.
Endlose Drehung, Voreinstellung (300 Stück)
Explosionsschutzzertifikat: IECEx, ATEX, KCs, KC, CE/UKCA
Edelstahl 316L, integrierter Wischer
IP67, IK10

Spezifications

Alarm inputs	1
Recording sensor	CMOS
Motion detector	Yes
Image resolution max.	1920x1080
Image transfer rate max.	60 fps
Focal length	4,44 - 142,6 mm
Digital Noise Reduction (DNR)	Yes
Backlight compensation	Yes
Housing material	Stainless steel
Camera Type	Explosion-proof
Photosensitivity	0.05 Lux Farbe (1/30sec,30IRE) "
Lens Type	Auto Focus Zoom
ONVIF	ONVIF Profile G,ONVIF Profile S,ONVIF Profile T
Protection	IP67
Series	Wisenet T
Power supply	24VAC
System	True Day&Night
Temperature Range (Operating)	-40°C~+60°C
Vandalism-resistant	Yes
Video Compression	H.264,H.265,MJPEG
Wide Dynamic Range (WDR)	120dB
Zoomfactor (optical)	32
