Hanwha Vision - XND-8081FZ
Available, delivery time: 2-3 days
1/1,8'' Netzwerk Dome, PTRZ, Tag/Nacht, 3,6-9,4mm, H.265, WDR, 2560x1920, IP52, Einbau
read more
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270
Product information "Hanwha Vision - XND-8081FZ"
Product availability information:
The item is ordered especially for you. The following is non-binding and subject to storage and delivery information from our suppliers:
- Discontinued line Availability remaining quantity: 1
- Expectation: 0
- Replacement time: -
- Last update: 22.09.2025 - subject to prior sale
SALE - Kameratechnik - Hanwha Vision - XND-8081FZ
1/1,8'' Netzwerk Dome, PTRZ, Tag/Nacht, 3,6-9,4mm, H.265, WDR, 2560x1920, IP52, Einbau
Manufacturer datasheet
Hauptmerkmale
- 5 Megapixel Auflösung 2560x1920@30fps (H.264/H.265)
- Motorisiertes PTRZ, 3,9-9,4mm P-Iris Objektiv
- H.265/H.264/MJPEG Codec mit WiseStream II
- Wide Dynamic Range (120dB), Defog, SSNRV
- Lichtempfindlichkeit 0,07Lux (F1,2, Farbe)
- True Day&Night mit umschaltbarem IR Sperrfilter
- Hallway View und Lens Distortion Correction (LDC)
- Digitale Bildstabilisierung mit Gyrosensor
- Umfangreiche Audio- und Videoanalysefunktionen
- Dual micro SDXC Slot, USB (720p) Installationshilfe
- PoE (IEEE802.3af, Class3), 12VDC

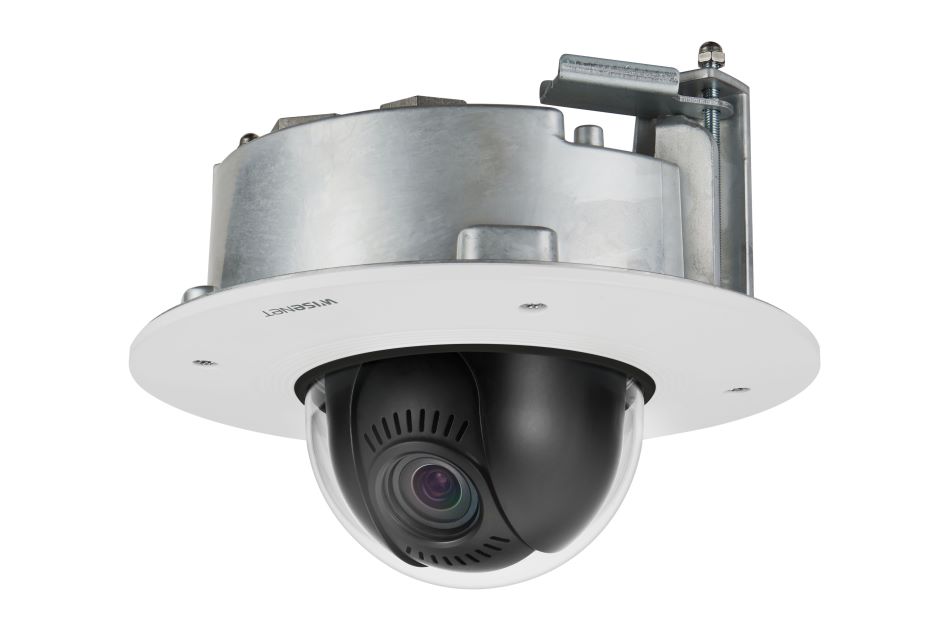

- Für Deckeneinbau, IP52, Plenum Rate (UL2820)
Specifications
| Alarm inputs | 1 |
| Audio support | Yes |
| Resolution standard | 5 MP |
| Recording sensor | CMOS |
| Lighting | no |
| Motion detector | Yes |
| Image resolution max. | 2560x1920 |
| Image transfer rate max. | 25 fps |
| Horizontal angle of view | 102,5 - 38,7° |
| Focal length | 3,6 - 9,4 mm |
| Chip size | 1/1,8'' |
| Digital Noise Reduction (DNR) | Yes |
| Turning range | 175 ° |
| Color (Housing) | weiß,RAL9003 |
| Color (dome) | clear |
| Backlight compensation | Yes |
| Housing type | Inside |
| Housing material | Aluminium |
| Heating | Yes |
| Internal memory | 2x microSD card slot |
| Photosensitivity | 0,07 Lux bei F1,2 |
| Low Speed Shutter | Yes |
| Mounting type | Ceiling installation |
| Lens Type | Varifocal (motorized) |
| ONVIF | ONVIF Profile S,ONVIF Profile G,ONVIF Profile T |
| Power over Ethernet | IEEE 802.3af |
| Protection | IP52 |
| Series | Wisenet X |
| Power supply | Poe,12VDC |
| System | True Day&Night |
| Day/night switching | Switchable IR Filter (ICR) |
| Temperature Range (Operating) | -25°C ~ +60°C |
| Video Compression | H.265,H.264,M-JPEG |
| Wide Dynamic Range (WDR) | WDR 120dB |
| Zoom Factor (Digital) | 0 |
| Zoomfactor (optical) | 2,6 |
| Manufacturers sheet | Download PDF-document |
Login
Specifications
| Alarm inputs | 1 |
| Audio support | Yes |
| Resolution standard | 5 MP |
| Recording sensor | CMOS |
| Lighting | no |
| Motion detector | Yes |
| Image resolution max. | 2560x1920 |
| Image transfer rate max. | 25 fps |
| Horizontal angle of view | 102,5 - 38,7° |
| Focal length | 3,6 - 9,4 mm |
| Chip size | 1/1,8'' |
| Digital Noise Reduction (DNR) | Yes |
| Turning range | 175 ° |
| Color (Housing) | weiß,RAL9003 |
| Color (dome) | clear |
| Backlight compensation | Yes |
| Housing type | Inside |
| Housing material | Aluminium |
| Heating | Yes |
| Internal memory | 2x microSD card slot |
| Photosensitivity | 0,07 Lux bei F1,2 |
| Low Speed Shutter | Yes |
| Mounting type | Ceiling installation |
| Lens Type | Varifocal (motorized) |
| ONVIF | ONVIF Profile S,ONVIF Profile G,ONVIF Profile T |
| Power over Ethernet | IEEE 802.3af |
| Protection | IP52 |
| Series | Wisenet X |
| Power supply | Poe,12VDC |
| System | True Day&Night |
| Day/night switching | Switchable IR Filter (ICR) |
| Temperature Range (Operating) | -25°C ~ +60°C |
| Video Compression | H.265,H.264,M-JPEG |
| Wide Dynamic Range (WDR) | WDR 120dB |
| Zoom Factor (Digital) | 0 |
| Zoomfactor (optical) | 2,6 |
| Manufacturers sheet | Download PDF-document |
