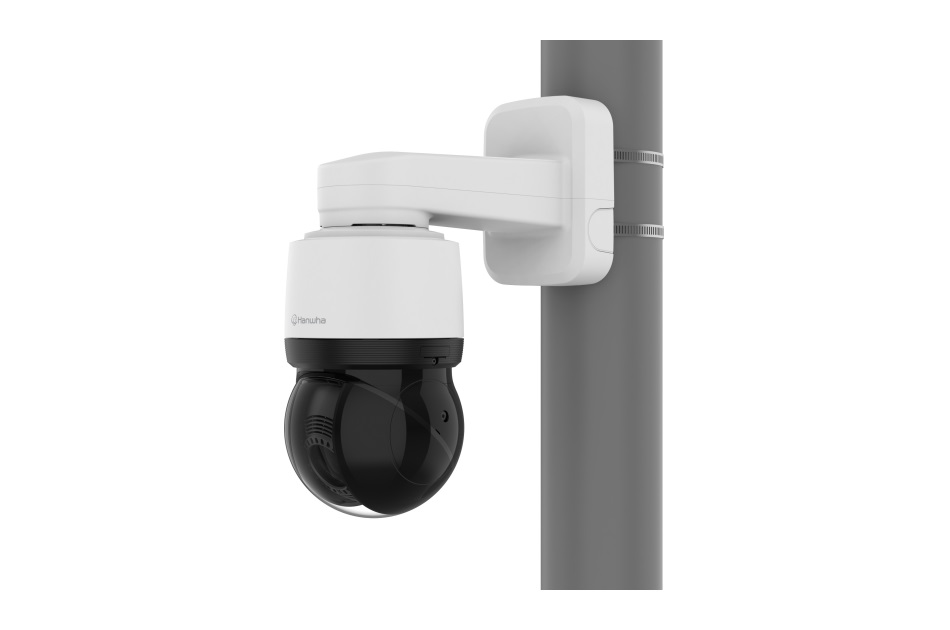

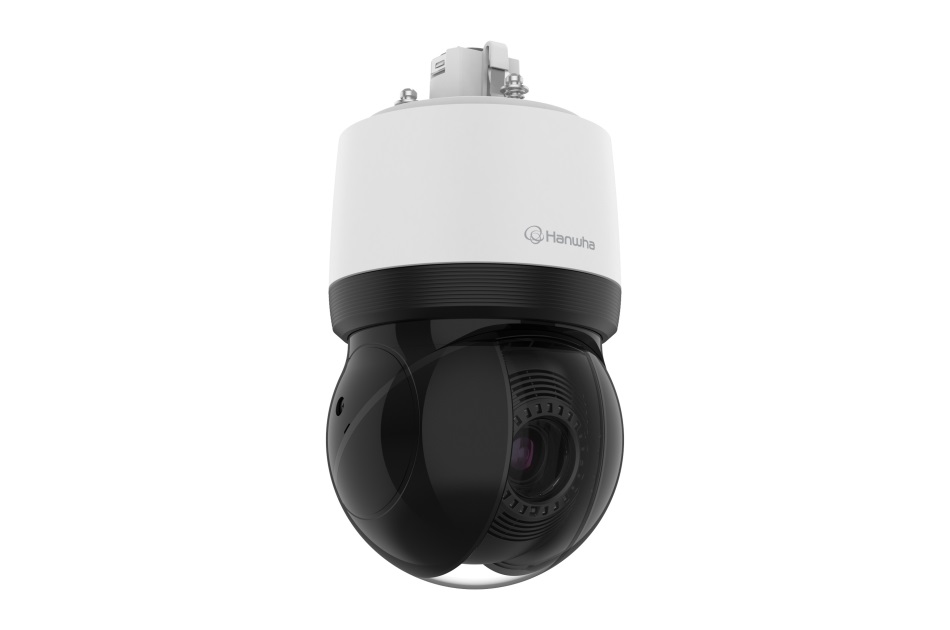

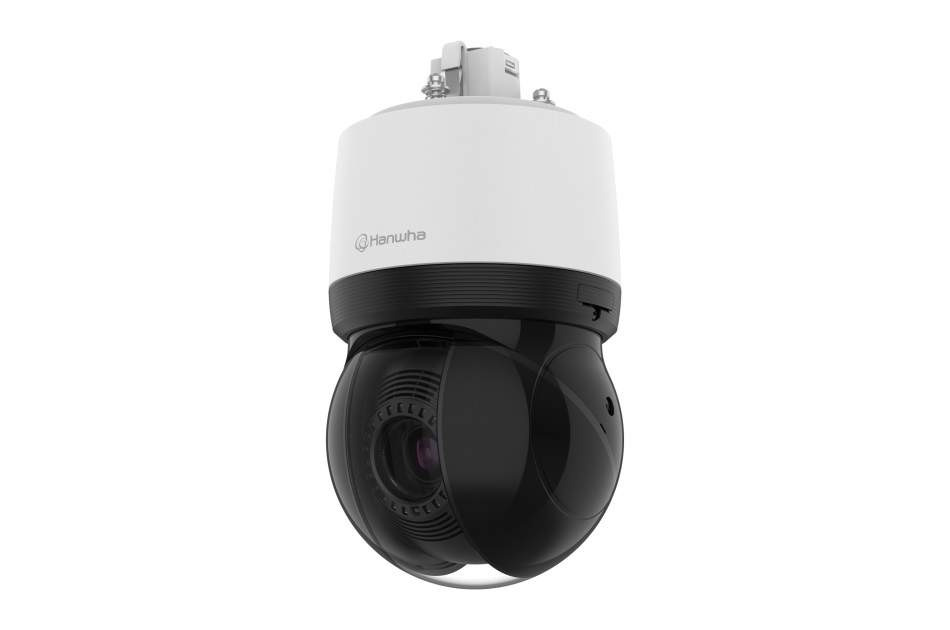

Hanwha Vision - XNP-C6403R
Delivery Time - look at hints
Netzwerk Dome, IR, AI PTZ, Tag/Nacht, 1920x1280, H.265, 40x, 4,25-170mm, IP66, IK10
read more
€4,295.90
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270
Product information "Hanwha Vision - XNP-C6403R"
Netzwerk Dome, IR, AI PTZ, Tag/Nacht, 1920x1280, H.265, 40x, 4,25-170mm, IP66, IK10
Manufacturer number: XNP-C6403R
Download manufacturer datasheet
Main features
- Full-HD Auflösung 1920x1080@30fps (H.264/H.265)
- 4,25-170mm Auto Fokus Zoom Objektiv
- 360° Endless Pan, 110° Tilt, max. 700°/s (Preset)
- H.265/H.264/MJPEG Codec mit WiseStream II
- Extreme Wide Dynamic Range (150dB), Defog, SSNRV
- Lichtempfindlichkeit 0,05Lux (F1,6, Farbe)
- True Day&Night mit umschaltbarem IR Sperrfilter
- Digitale Bildstabilisierung mit integriertem Gyrosensor
- Intelligente Analyse, Objektverfolgung Person,Fahrzeug
- PTZ PLUS Design kompakt, leichter, einfache Verkabelung
- Stromversorgung: PoE+ (IEEE802.3at, Class4)
- Für Außen, -40°C bis +50°C, IK10, IP66, IR-Beleuchtung
Spezifications
| Resolution standard | 2 MP |
| Recording sensor | CMOS |
| Lighting | Infrared |
| Image resolution max. | 1920x1080 (PTZ-Einheit) |
| Image transfer rate max. | 30 fps |
| Focal length | 4,25 - 170 mm |
| Chip size | 1/2,8'' |
| Digital Noise Reduction (DNR) | Yes |
| Color (Housing) | weiß,schwarz |
| Backlight compensation | Yes |
| Housing type | Outside |
| Housing material | Aluminium |
| Internal memory | microSD card slot |
| Photosensitivity | 0,05 Lux bei F1,6 |
| Lens Type | Auto Focus Zoom |
| ONVIF | ONVIF Profile S,ONVIF Profile G,ONVIF Profile T |
| Power over Ethernet | IEEE 802.3at |
| Protection | IP66 |
| Series | Wisenet X |
| Control Interfaces | Ethernet |
| Power supply | PoE+ (IEEE-802.3at) |
| System | True Day&Night |
| Day/night switching | Switchable IR Filter (ICR) |
| Temperature Range (Operating) | -40°C ~ +50°C |
| Vandalism-resistant | Yes |
| Video Compression | H.265,H.264,M-JPEG |
| Wide Dynamic Range (WDR) | extremeWDR |
| Certifications | IK10 |
| Zoomfactor (optical) | 40 |
Product availability information:
The item is ordered especially for you, so it is not possible for return, withdrawal or cancellation. The following is non-binding and subject to storage and delivery information from our suppliers:
In stock: 0, Expectation: 0, Replacement time: 10 days (Last update: 23.03.2026) - subject to prior sale
