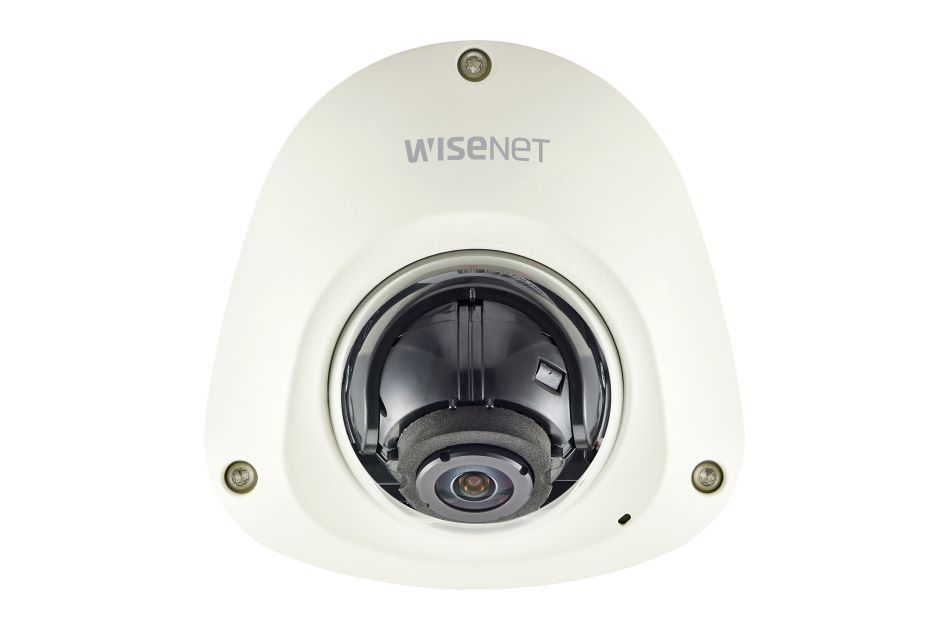

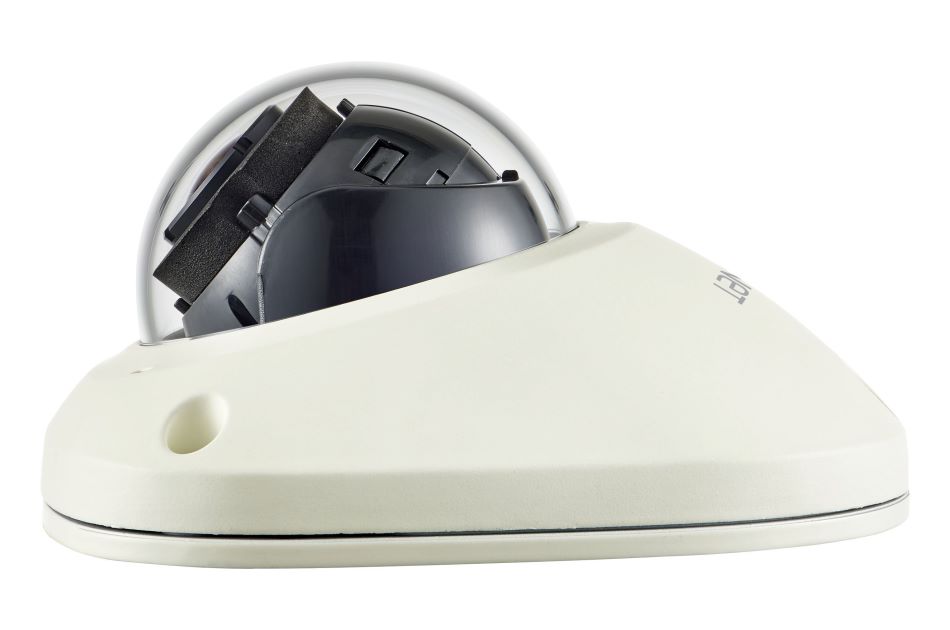

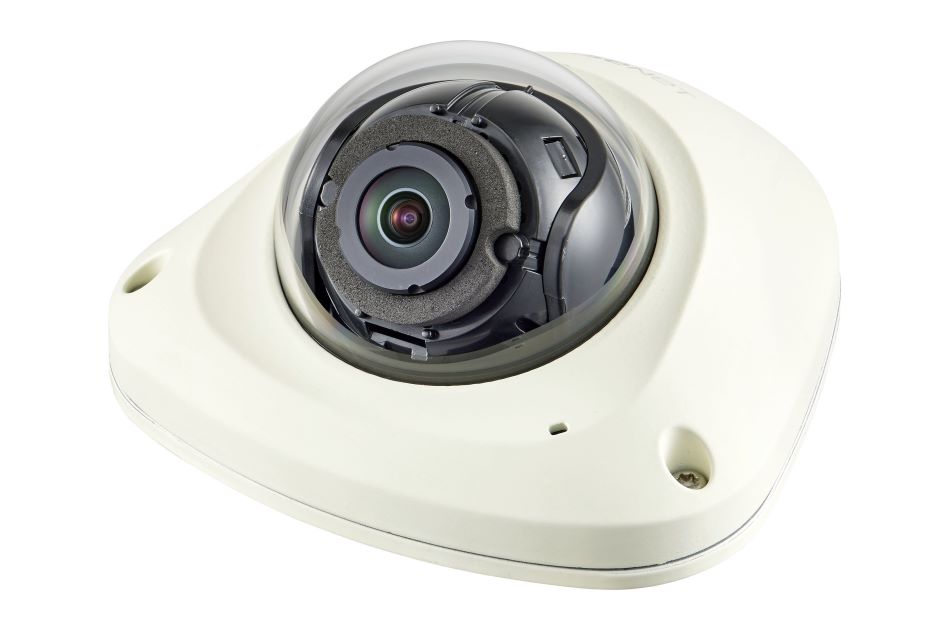

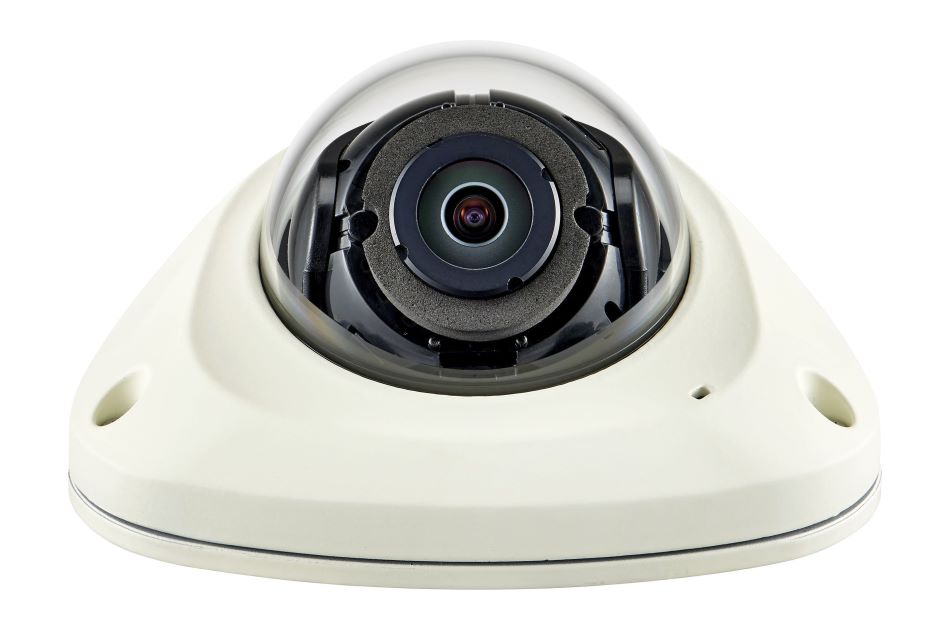

Hanwha Vision - XNV-6022R
Delivery Time 2-3 weeks
1/2,8'' Netzwerk Dome, Fix, Tag/Nacht, 1920x1280, H.265, 3,6mm, Infrarot, IP66, IK10
read more
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270
Product information "Hanwha Vision - XNV-6022R"
Product availability information:
The item is ordered especially for you. The following is non-binding and subject to storage and delivery information from our suppliers:
- In stock: 0
- Expectation: 0
- Replacement time: 10 days
- Last update: 28.04.2025 - subject to prior sale
Kameratechnik - Fix Domes - Hanwha Vision - XNV-6022R
1/2,8'' Netzwerk Dome, Fix, Tag/Nacht, 1920x1280, H.265, 3,6mm, Infrarot, IP66, IK10
Manufacturer datasheet
Hauptmerkmale
- Full-HD Auflösung 1920x1080@60fps (H.264/H.265)
- Festbrennweite F2,0/3,6mm, 94,8° HFoV
- H.265/H.264/MJPEG Codec mit WiseStream II
- Wide Dynamic Range (150dB), SSNRV
- Lichtempfindlichkeit 0,04Lux (F2,0, Farbe)
- Infrarotbeleuchtung, bis 15m Reichweite
- True Day&Night mit umschaltbarem IR Sperrfilter
- Micro SDXC Slot, USB-WLAN-Installationshilfe
- Stromversorgung: PoE (IEEE802.3af)
- Für Außenanwendung, IP66
- Aluminiumgehäuse, IK10 Vandalismusschutz
- Vibrationsschutz: EN 50155, EN 50121
Specifications
| System | True Day&Night |
| Compression standard | H.265 H.264 M-JPEG |
| Image transmission rate max. | 60 fps |
| Wide Dynamic Range (WDR) | WDR 150dB |
| Certificates | IK10 EN 50155 |
| Horizontal angle of view | 94,8 ° |
| Iris control | no |
| Audio support | yes |
| ONVIF | yes |
| Sensitivity | 0,04 Lux, at F2.0 |
| Serie | WiseNet X |
| Illumination | infrared |
| Colour (bubble) | clear |
| Colour (housing) | ivory Pantone Cool Gray 1C |
| Low speed shutter | yes |
| Sensor size | 1/2.8'' |
| Heater | yes |
| Mounting | ceiling mount |
| Digital Zoom | 24x |
| Housing | outdoor |
| Backlight compensation | BLC HLC |
| Imager | CMOS |
| Videoausgänge | micro USB |
| Focal length | 3,6 mm |
| Internal storage | microSD card microSDHC card microSDXC card |
| Housing material | metal |
| Protection rating | IP66 |
| Power over Ethernet | IEEE 802.3af |
| Alarm inputs | no |
| Digitale Rauschunterdrückung (DNR) | SSNR5 |
| Resolution standard | HD 1080p |
| Lens type | fixed focal length |
| Sensitivity | at F2.0 |
| IR cut filter | switchable |
| Temperature range (operation) | -30°C ~ +55°C |
| Vandalism resistant | yes |
| Supply voltage | PoE |
| Motion detector | yes |
| Resolution max. | 1920x1080 |
| Manufacturers sheet | Download PDF-document |
