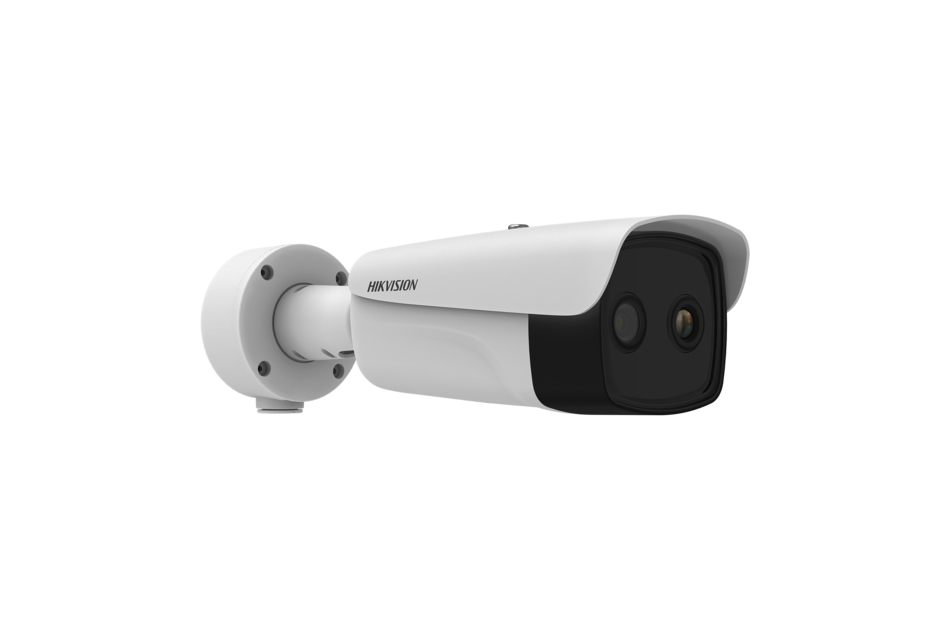

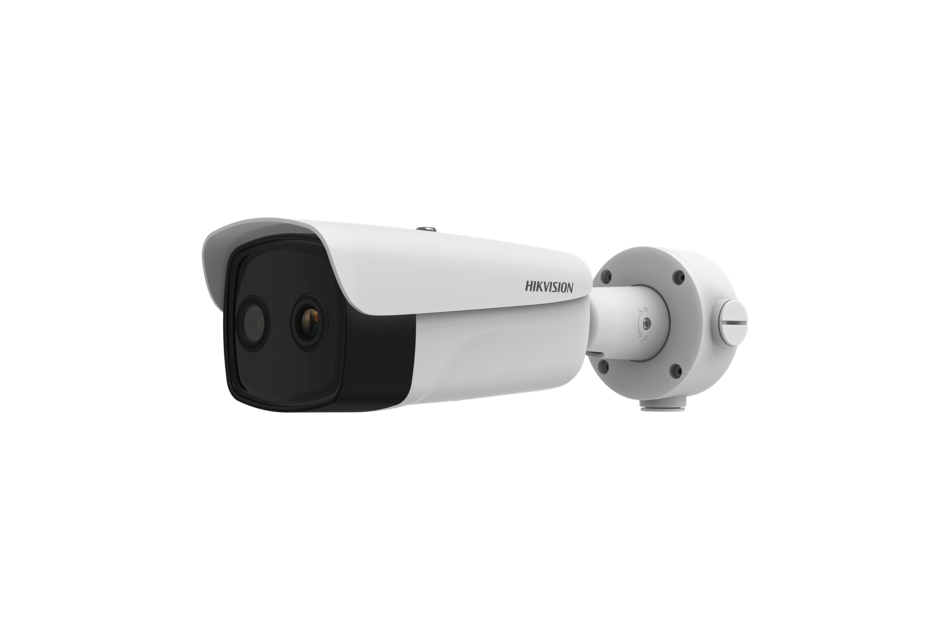

Hikvision - HM-TD2638-10/G1/T3Y(O-STD)
Delivery Time - look at hints
Netzwerk Wärmebild Bullet Kamera, Bi-Spectral, 384x288 Thermal, 10mm Brennweite, 25Hz, 4MP, IR, IP67
read more
€4,263.12
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270
Product information "Hikvision - HM-TD2638-10/G1/T3Y(O-STD)"
Netzwerk Wärmebild Bullet Kamera, Bi-Spectral, 384x288 Thermal, 10mm Brennweite, 25Hz, 4MP, IR, IP67
Manufacturer number: 305403149
Download manufacturer datasheet
Main features
- Auflösung 384×288, 12 µm, VOx UFPA, NETD = 20 mK (25 °C, F1.0)
- Erweiterte Erkennungsreichweite für Personen/Fahrzeuge und extrem geringe Fehlalarmquote dank GUANLAN KI
- Alarm bei Temperaturabweichungen, -20 °C bis 150 °C, ± 8 °C
- Brandmeldealgorithmus
- Integriertes TPM2.0-Verschlüsselungsmodul für Cybersicherheit
- Hochwertiger Detektor mit 10 Jahren Garantie
Spezifications
| Alarm inputs | 4 |
| Audio compression | G.711a,G.711u,G.726 |
| Audio support | Yes |
| Recording sensor | CMOS,Progressive Scan,Vanadium Oxide Uncooled Focal Plane Arrays |
| Lighting | Infrared |
| Motion detector | Yes |
| Image resolution max. | 2688×1520 |
| Image transfer rate max. | 30 fps |
| Horizontal angle of view | 51,9° |
| Vertical angle of view | 28° |
| Focal length | 6,4 mm |
| Detection range (m) | 1,239 m |
| Digital Noise Reduction (DNR) | Yes |
| Ethernet interface | 10Base-T,100Base-TX |
| Color (Housing) | White |
| Housing type | Metal |
| Housing material | Metal |
| Heating | No |
| Internal memory | microSD card |
| Camera Type | Anti-corrosion,Bi-Spectral,Domecamera |
| Power consumption | 12.1 W |
| Photosensitivity | 0,0089 lux |
| Low Speed Shutter | Yes |
| Mounting type | Ceiling,Wall |
| Lens Type | Prime lens |
| ONVIF | ONVIF Profile S,ONVIF Profile G,ONVIF Profile T,ONVIF Profile M |
| Power over Ethernet | IEEE 802.3af |
| Protection | IP67 |
| Control Interfaces | RS-485,Ethernet |
| Power supply | 24VDC,24VAC,12VDC |
| System | Color,black/white,Thermal image,True Day&Night |
| Temperature Range (Operating) | -40°C - 70°C |
| Thermal resolution | 384x288 |
| Vandalism-resistant | Yes |
| Video Outputs | Yes |
| Video Compression | H.264,H.265 |
| Wide Dynamic Range (WDR) | WDR 120dB |
| Certifications | CE,RCM,ICES\u2011003,KC,CB,CE\u2011LVD,BIS,LOA,RoHS,WEEE,REACH |
| Zoom Factor (Digital) | 8 |
