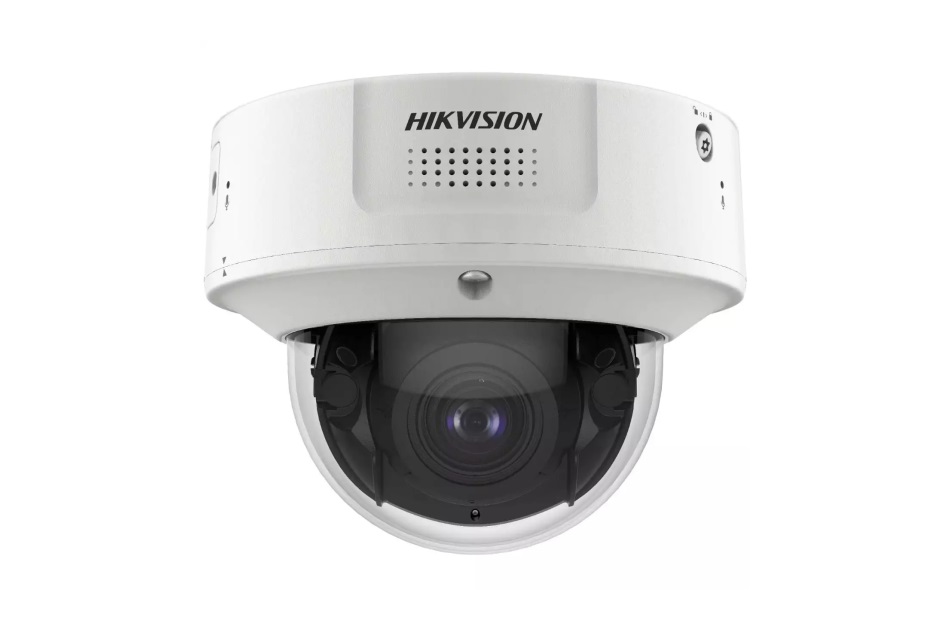

Hikvision - iDS-2CD7146G0-IZHSY(2.8-12mm)(D)(O-STD)
No longer available
Netzwerk Dome, Fix, Tag/Nacht, 4MP, Audio, 2,8-12mm, Face Detection, IK10
read more
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270
Product information "Hikvision - iDS-2CD7146G0-IZHSY(2.8-12mm)(D)(O-STD)"
Product availability information:
The item is ordered especially for you. The following is non-binding and subject to storage and delivery information from our suppliers:
- In stock: 0
- Expectation: 0
- Replacement time: 9 weeks
- Last update: 08.09.2025 - subject to prior sale
Kameratechnik - Fix Domes - Hikvision - iDS-2CD7146G0-IZHSY(2.8-12mm)(D)(O-STD)
Netzwerk Dome, Fix, Tag/Nacht, 4MP, Audio, 2,8-12mm, Face Detection, IK10
Manufacturer datasheet
Specifications
| Alarm inputs | 0 |
| Resolution standard | 4 MP |
| Recording sensor | CMOS |
| Lighting | Infrared |
| Image resolution max. | 2688x1520 |
| Image transfer rate max. | 50 fps |
| Horizontal angle of view | 107,4 - 39,8° |
| Focal length | 2,8 - 12 mm |
| Chipgröße | 1/1,8'',Chip size,1/1,8'' |
| Digital Noise Reduction (DNR) | Yes |
| Color (Housing) | weiß |
| Color (dome) | clear |
| Backlight compensation | Yes |
| Housing type | Outside |
| Housing material | Metal |
| Heating | Yes |
| Photosensitivity | 0,0005 Lux bei F1.2 |
| Low Speed Shutter | Yes |
| Mounting type | Ceiling,Wall |
| Lens Type | Varifocal |
| Power over Ethernet | IEEE 802.3at |
| Protection | IP67 |
| Control Interfaces | Ethernet |
| Power supply | 12VDC,24VAC,Poe |
| System | True Day&Night |
| Day/night switching | Switchable IR Filter (ICR) |
| Temperature Range (Operating) | -30°C ~ +60°C |
| Vandalism-resistant | Yes |
| Video Compression | H.265+,H.265,H.264+,H.264,M-JPEG |
| Wide Dynamic Range (WDR) | WDR 140dB |
| Manufacturers sheet | Download PDF-document |
Login
Specifications
| Alarm inputs | 0 |
| Resolution standard | 4 MP |
| Recording sensor | CMOS |
| Lighting | Infrared |
| Image resolution max. | 2688x1520 |
| Image transfer rate max. | 50 fps |
| Horizontal angle of view | 107,4 - 39,8° |
| Focal length | 2,8 - 12 mm |
| Chipgröße | 1/1,8'',Chip size,1/1,8'' |
| Digital Noise Reduction (DNR) | Yes |
| Color (Housing) | weiß |
| Color (dome) | clear |
| Backlight compensation | Yes |
| Housing type | Outside |
| Housing material | Metal |
| Heating | Yes |
| Photosensitivity | 0,0005 Lux bei F1.2 |
| Low Speed Shutter | Yes |
| Mounting type | Ceiling,Wall |
| Lens Type | Varifocal |
| Power over Ethernet | IEEE 802.3at |
| Protection | IP67 |
| Control Interfaces | Ethernet |
| Power supply | 12VDC,24VAC,Poe |
| System | True Day&Night |
| Day/night switching | Switchable IR Filter (ICR) |
| Temperature Range (Operating) | -30°C ~ +60°C |
| Vandalism-resistant | Yes |
| Video Compression | H.265+,H.265,H.264+,H.264,M-JPEG |
| Wide Dynamic Range (WDR) | WDR 140dB |
| Manufacturers sheet | Download PDF-document |
Product availability information:
The item is ordered especially for you. The following is non-binding and subject to storage and delivery information from our suppliers:
- In stock: 0
- Expectation: 0
- Replacement time: 9 weeks
- Last update: 08.09.2025 - subject to prior sale
Information according to EU regulation (EU) 2023/988 (GPSR):
Hikvision Deutschland GmbH
Wilhelm-Fay-Straße 32 b, 65936 Frankfurt am Main, DE
Web: www.hikvision.com
