SALTO - XS4 Neo knob cylinder - Configurator

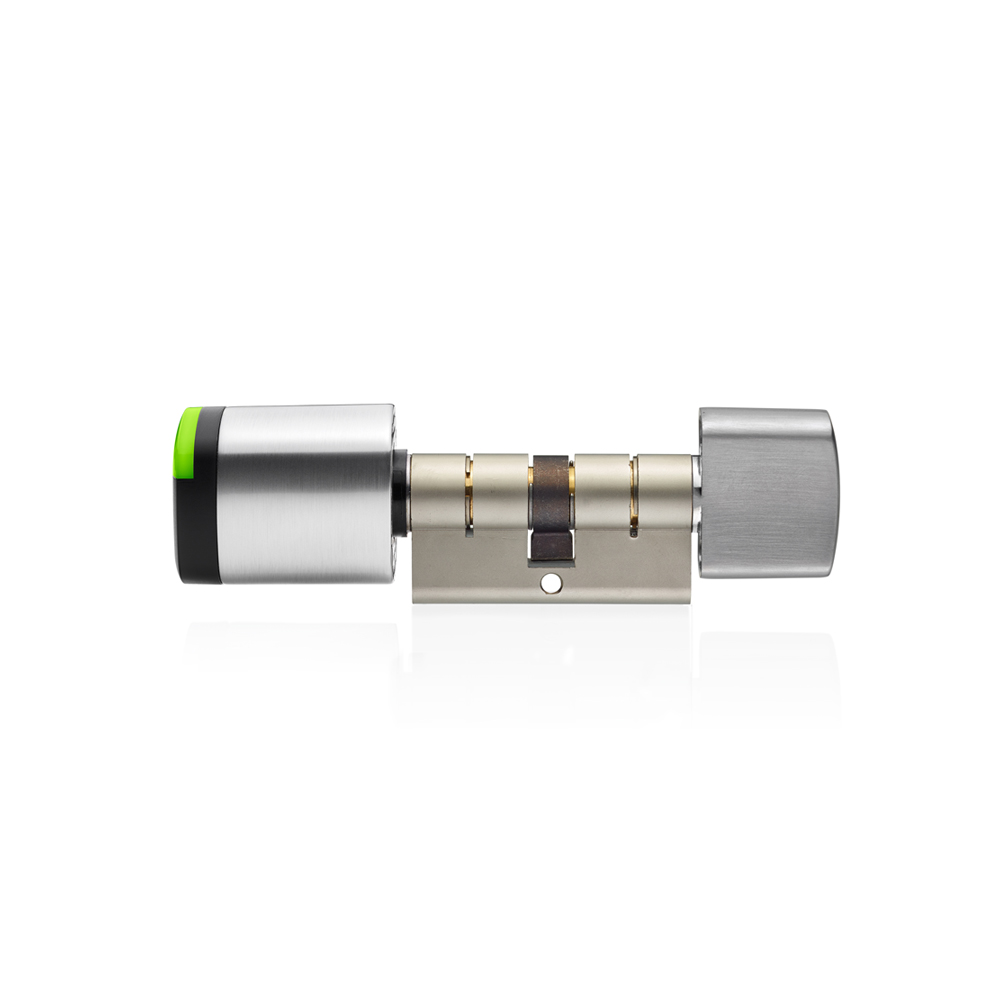

The Salto Neo NxE2 is an electronic knob cylinder for mortise locks with a Euro-profile or Swiss round cylinder cut-out. Door opening is possible via RFID credentials, digital keys using Mobile Access, and remote opening. With Salto Space, remote opening is available through the software when the system is connected via wireless network. With Salto KS and Salto Homelok, remote opening is available via web and mobile app. All communication with the NxE2 is encrypted. Electronic emergency opening is possible using a portable PPD programming device.

The SALTO Neo Euro Profile Cylinder combines modern electronic access control with a flexible design for doors featuring a Euro profile cylinder cut-out. This electronic locking cylinder is ideal for businesses, public facilities, educational institutions, hotels, residential buildings and other properties where access permissions need to be managed conveniently and securely. Thanks to its support for modern identification and communication technologies, the SALTO Neo Euro Profile Cylinder can be flexibly integrated into digital SALTO access control solutions. Depending on the system configuration, RFID credentials as well as digital keys via Bluetooth Low Energy (BLE) and NFC can be used. Communication between the credential and the cylinder is encrypted.

Secure Electronic Locking Cylinder with High Flexibility

For enhanced mechanical protection, the SALTO Neo Cylinder features hardened drill protection. A two-colour LED on the electronic knob provides immediate visual feedback indicating whether access has been granted or denied. An optional acoustic signal can provide additional feedback.

A major advantage in day-to-day operation is that the battery can be replaced without removing the cylinder from the door. This makes maintenance fast and convenient.

The electronic Euro profile cylinder is available in different lengths and configurations to suit a wide range of door situations. Depending on the selected version, additional options such as anti-panic or emergency functions are available.

Key Benefits at a Glance

• Electronic locking cylinder for Euro profile doorsE

• ncrypted communication between cylinder and credential

• Supports RFID, Bluetooth Low Energy and NFC

• Compatible with SALTO Virtual Network (SVN) and SALTO BLUEnet

• Supports JustIN Mobile for digital access solutions

• Hardened drill protection for increased mechanical security

• Battery replacement without removing the cylinder

• LED indication for granted or denied access

• Optional acoustic feedback

• Available in different cylinder lengths and configurations

• Optional anti-panic and emergency functions

• Emergency opening via a portable SALTO programming device (PPD)

Flexible Credentials for Digital Access Control

The SALTO Neo electronic locking cylinder supports various types of credentials, allowing flexible access management. In addition to RFID cards and RFID key fobs based on compatible NXP MIFARE technology, digital keys via Bluetooth LE or NFC can also be used, depending on the SALTO platform and system configuration.

This makes the SALTO Neo particularly suitable for modern locking systems where traditional mechanical keys are supplemented or replaced by centrally managed electronic or mobile access permissions.

Suitable for Different Door Thicknesses and Applications

According to the manufacturer, the SALTO Neo Euro Profile Cylinder is available for door thicknesses ranging from 40 to 370 mm. Different cylinder bodies and internal knob designs allow adaptation to a wide variety of installation situations. Versions for glass doors as well as models with additional safety and panic functions are also available for specific applications.

The Euro profile cylinder uses a 15 mm DIN cam. Depending on the version, models with a gear wheel are also available.

Compatible with SALTO Access Control Platforms

The SALTO Neo Cylinder can be used as part of various SALTO access control solutions and is compatible with platforms including SALTO Space, SALTO KS and SALTO Homelok. This makes the electronic locking cylinder suitable for both locally managed and cloud-based access control environments.

SALTO Neo Euro Profile Cylinder – Electronic Access Control Directly at the Door

The SALTO Neo Cylinder is a modern solution for electronic locking systems and digital access control. Its combination of encrypted communication, multiple credential options, robust construction and flexible configurations makes it a versatile choice for professional access control systems.

Please note: Available functions, cylinder lengths, finishes and system compatibility depend on the selected configuration. Please choose the appropriate version based on the door, lock and SALTO access control system in use.
