SALTO - XS4 Original+ DIN glass door escutcheon - Configurator
Delivery Time 6-7 weeks
The XS4 Original+ GD lock incorporates the latest BLUEnet wireless and mobile credentials technology to accommodate access control needs of both today...
read more
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270
| description | Order code | Price / pc. in € | ||
|---|---|---|---|---|
|
|
SALTO SPACE | 0,00 |
|
|
|
|
SALTO KS | 0,00 |
|
-
SALTO - XS4 Original+ DIN glass door escutcheon - Configurator1.137,57 €

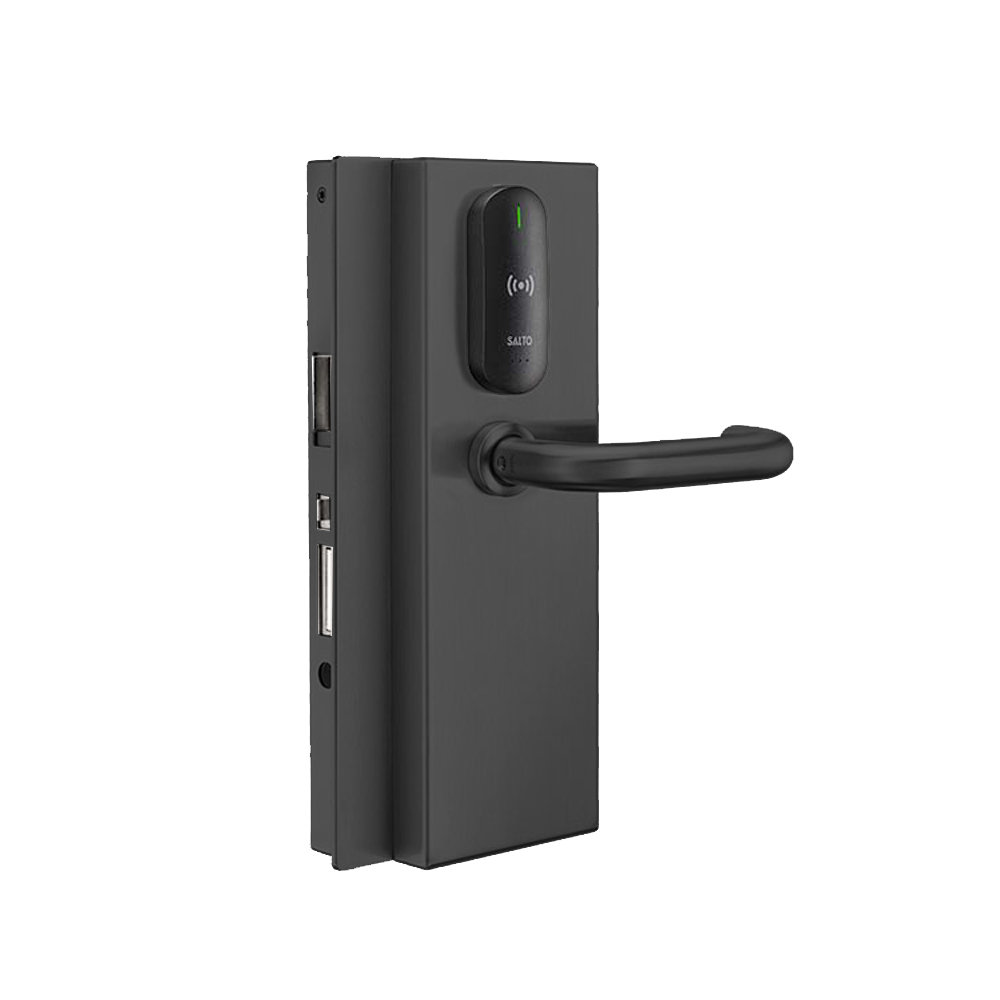

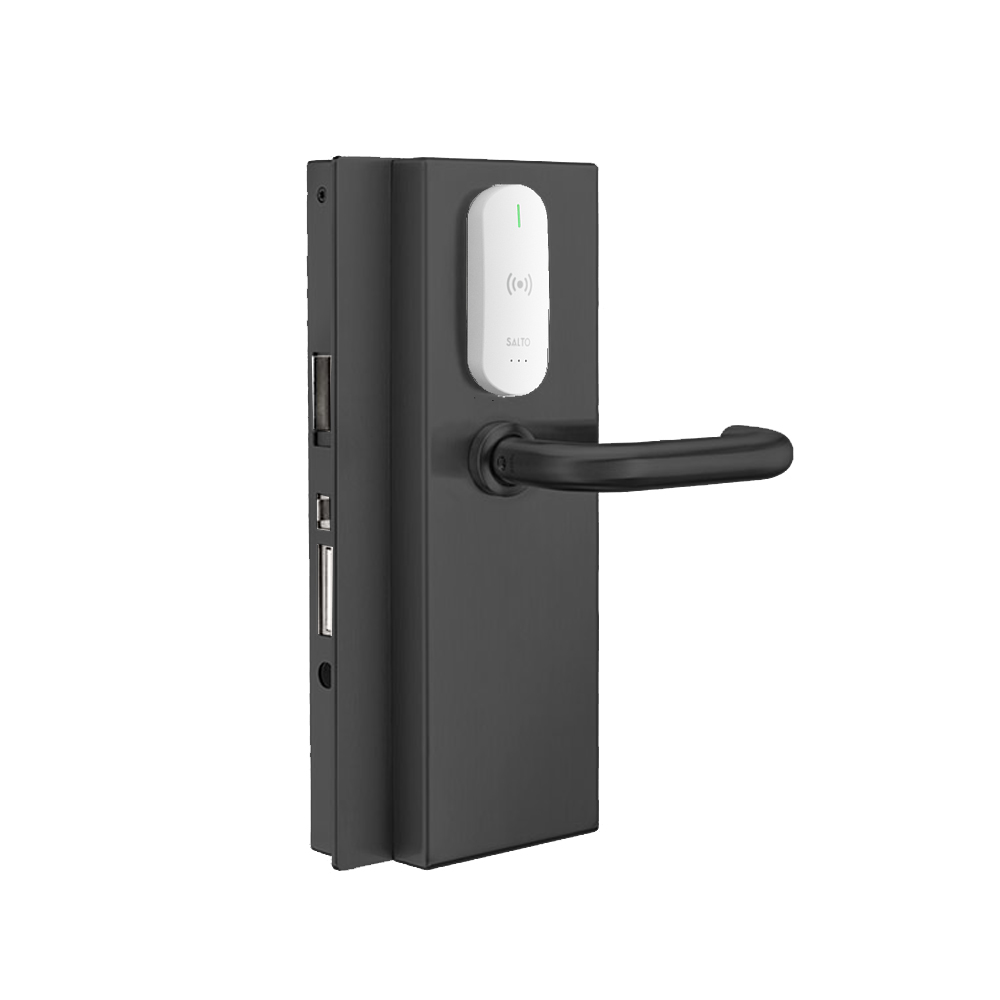

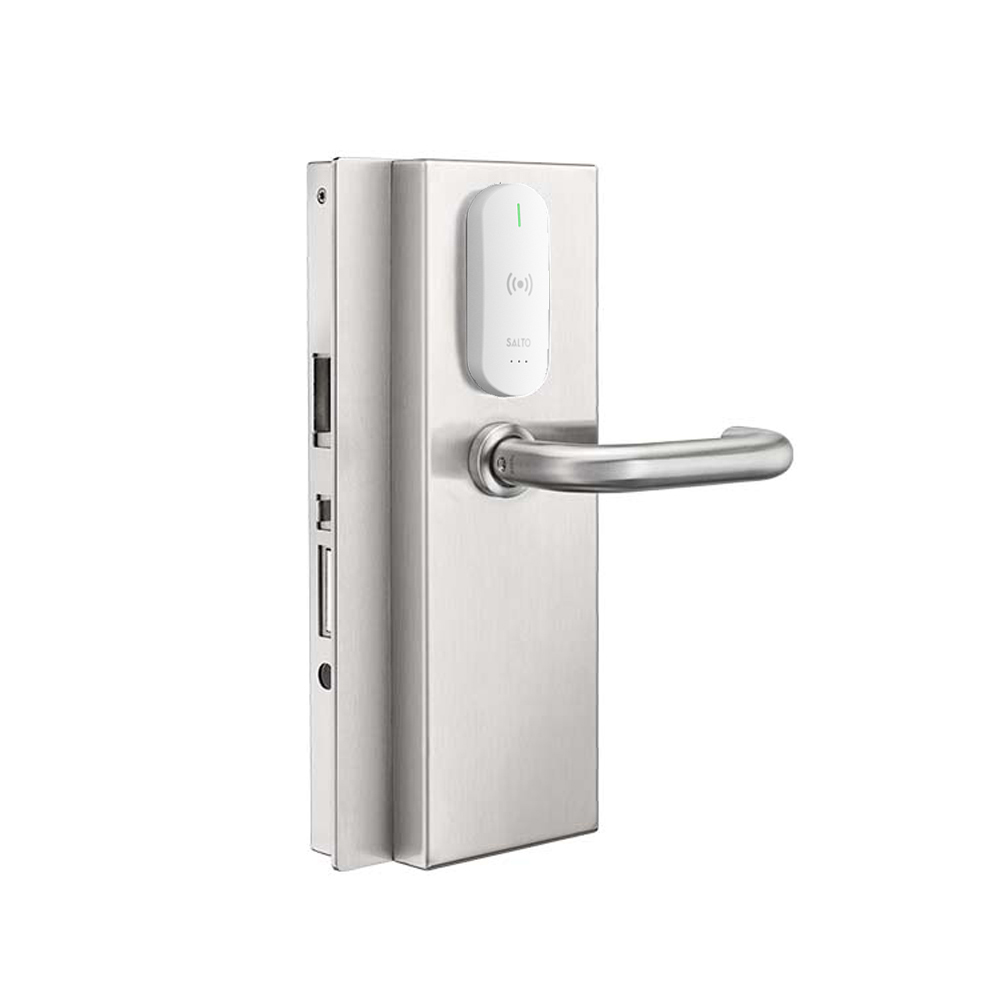

The SALTO - XS4 Original+ glass door escutcheon incorporates the latest BLUEnet wireless and mobile credentials technology to accommodate access control needs of both today and tomorrow.
Main features
- Clutch mechanism escutcheon when unlocked handle moves free.
- Door status detector to monitor intrusions or door left open status (when it is online).
- Body and escutcheon made of steel.
- Glass door compatibility: Din 18101 standard.
- Automatic lock, the auxiliary latch (anticard) projects and deadlocks the deadbolt.
- Inside always allows free egress (anti panic function).
- Sandwich body design for easy installation.
- High security through advanced hardened high resistance anti-drill plates.
- Counter strike available for glass to glass doors.
Technical characteristics:

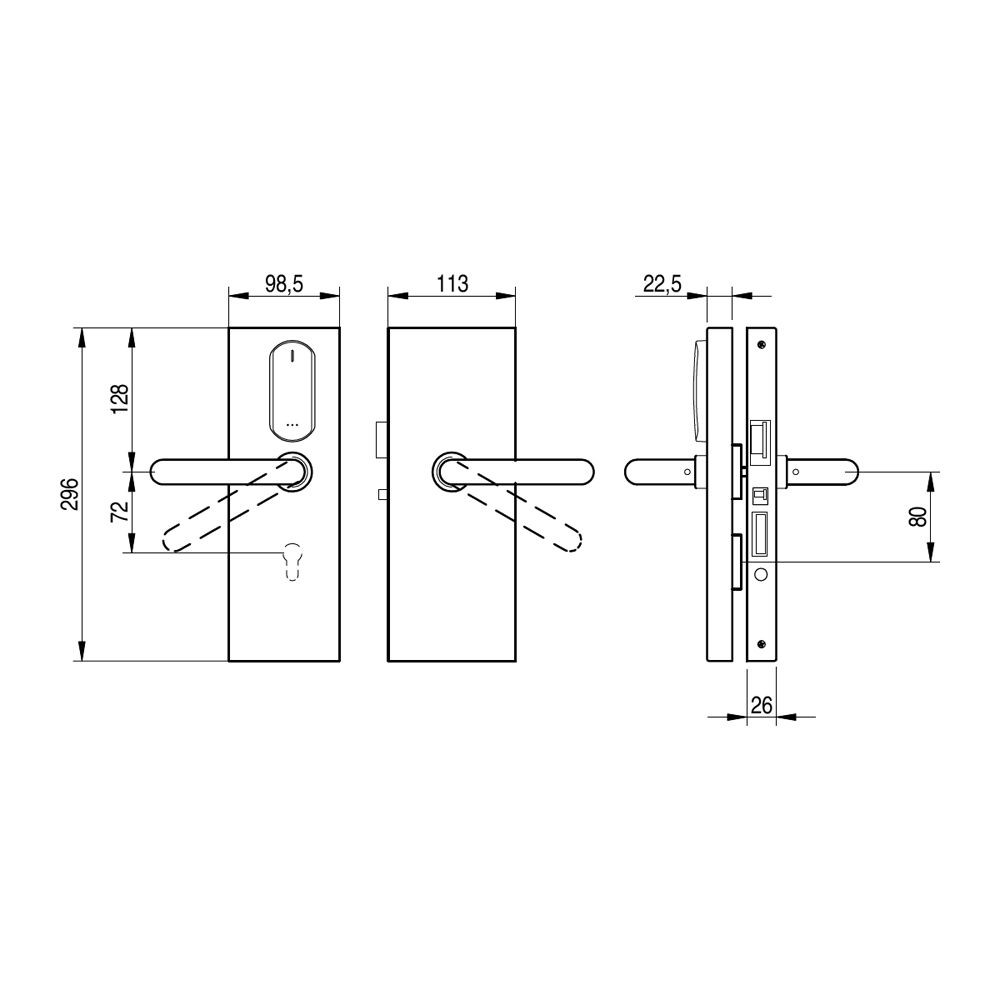

- Dimensions: 296mm x 98.5mm x 22,5mm.
- Weight: 1.5 kg. • Handle turning angle: 52º.
- Distance from the handle to the cylinder: 72 mm.
- Handle clutch mechanism.
- The handle retracts the latch and the deadbolt to normal position.
- Mechanical override with audit trail facility available.
- Handle fixed by Steady Fix system (patented).
- Handles compatibility: 16mm Ø, 18mm Ø.
Platforms
- SALTO Space
- SVN Data-on-card
- Wireless (SALTO BLUEnet)
- SVN-FLEX
- SALTO KS
- Wireless (SALTO BLUEnet)
ID technologies
- SALTO Justin Mobile Credentials: Mobile Key Bluetooth and Near Field Communication (NFC) capability.
- NXP MIFARE®: MIFARE® DESFire® EV1/EV2/ EV3, MIFARE® Plus, MIFARE® Ultralight C, MIFARE® Classic.
Core technologies
- Salto Native Bluetooth LE wireless connectivity.
- Hardware Secure Element.
