SAMCON - ExCam IPQ1656 T08-VA2.3.K3.BOR2-N.H-005.N-P
Delivery Time - look at hints
Netzwerkkamera im Edelstahlgehäuse gemäß RL 2014/34/EU (ATEX) und IECEx, 2688x1512, 2,4x optischer Zoom, inkl. 5m Systemkabel
read more
€6,440.46
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270
Product information "SAMCON - ExCam IPQ1656 T08-VA2.3.K3.BOR2-N.H-005.N-P"
Netzwerkkamera im Edelstahlgehäuse gemäß RL 2014/34/EU (ATEX) und IECEx, 2688x1512, 2,4x optischer Zoom, inkl. 5m Systemkabel
Manufacturer number: ExCam IPQ1656 T08-VA2.3.K3.BOR2-N.H-005.N-P
Download manufacturer datasheet
Main features
- 1/1,8'' CMOS Sensor mit 4 MP (2688 x 1512)
- Tag-/Nacht Funktionalität
- Leistungsstarkes Remote Zoom und Fokus-Objektiv (2,4 fach Zoom)
- Edelstahl AISI 316L
- Zertifiziert für explosionsgefährdete Bereiche nach ATEX, IECEx,INMETRO, EAC-Ex
- Schutzart IP66/68 (IEC 60529)
- Videokomprimierung H.265
- Made in Germany
Spezifications
| Audio support | No |
| Resolution standard | 4 MP |
| Recording sensor | CMOS |
| Lighting | no |
| Motion detector | Yes |
| Image resolution max. | 2688 x 1512 |
| Image transfer rate max. | 60 fps |
| Horizontal angle of view | 100° - 47° |
| Vertical angle of view | 63° - 27° |
| Focal length | 3.9 - 10 mm |
| Chip size | 1/1,8'' |
| Digital Noise Reduction (DNR) | No |
| Backlight compensation | Yes |
| Housing type | Explosion-proof |
| Housing material | AISI 316L,Stainless steel |
| Heating | No |
| Internal memory | SD card,SDHC Card,SDXC Card |
| Camera Type | Anti-corrosion,Stainless steel,Explosion-proof |
| Power consumption | 8.2 W |
| Photosensitivity | 0,05 lux bei 50 IRE |
| Low Speed Shutter | Yes |

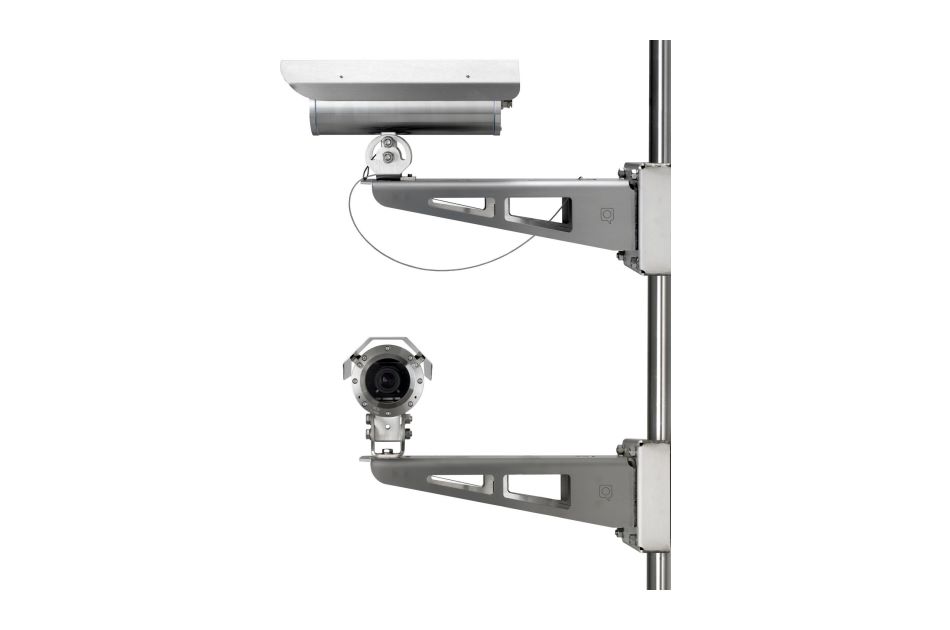

| Mounting type | Mast mounting,Wall |
| Lens Type | i-CS Varifocal |
| ONVIF | ONVIF Profile S,ONVIF Profile T,ONVIF Profile G,ONVIF Profile M |
| Power over Ethernet | IEEE 802.3af |
| Protection | IP66/68 |
| Series | ExCam |
| Control Interfaces | Ethernet |
| Power supply | Poe |
| System | True Day&Night |
| Day/night switching | yes |
| Temperature Range (Operating) | -20 °C - 60 °C |
| Video Compression | H.264,H.265,Axis Zipstream,M-JPEG |
| Wide Dynamic Range (WDR) | Forensic WDR |
| Wiper | No |
