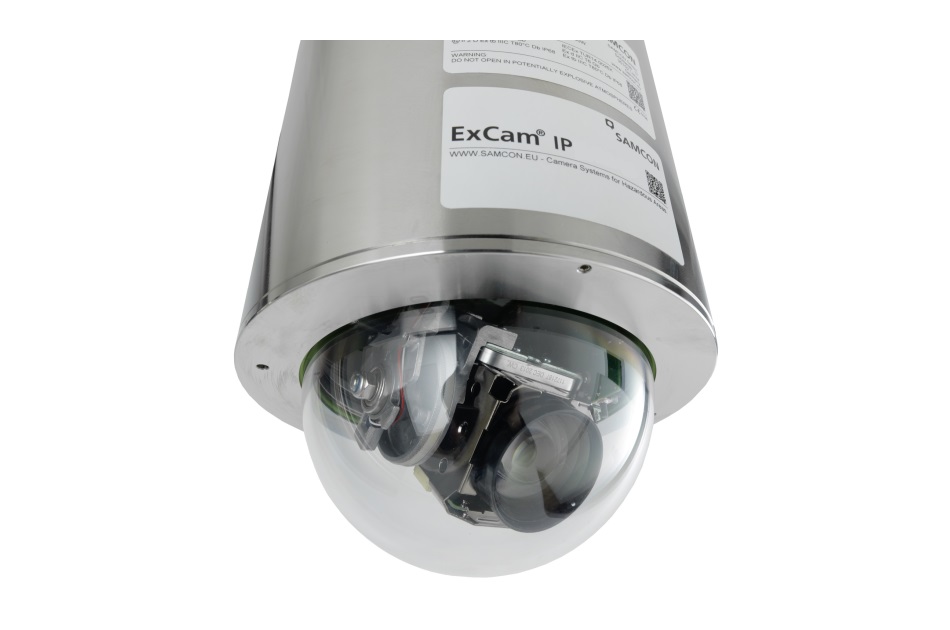

SAMCON - ExCam IPQ6075 T08-TNXCD-N.H-005.N-P
Delivery Time - look at hints
Netzwerk PTZ Domkamera im Edelstahlgehäuse gemäß RL 2014/34/EU (ATEX), IECEx und EAC-Ex, 1080p, 40x optischer Motor-Zoom, IP68, 0°C/60°C
read more
€12,946.49
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270
Product information "SAMCON - ExCam IPQ6075 T08-TNXCD-N.H-005.N-P"
Netzwerk PTZ Domkamera im Edelstahlgehäuse gemäß RL 2014/34/EU (ATEX), IECEx und EAC-Ex, 1080p, 40x optischer Motor-Zoom, IP68, 0°C/60°C
Manufacturer number: 23040117
Download manufacturer datasheet
Main features
- 1/2,8'' CMOS Sensor mit 2 MP (1920 x 1080)
- Leistungsstarkes Motor-Zoom-Autofokus-Objektiv (40x optisch)
- Edelstahl AISI 316L
- Zertifiziert für explosionsgefährdete Bereiche nach ATEX, IECEx,INMETRO, EAC-Ex
- Kratz- und hitzebeständige LEXAN Kuppel für perfekte optische Qualität
- Lightfinder und WDR
- Automatische Temperaturregelung
- Schneller Schwenk- und Neigeantrieb (0,05 - 450°/s)
- Schutzart IP66/68 (IEC 60529)
- Made in Germany
Spezifications
| Alarm inputs | 4 |
| Audio support | No |
| Resolution standard | 2 MP |
| Recording sensor | CMOS |
| Lighting | no |
| Motion detector | Yes |
| Image resolution max. | 1920 x 1080 |
| Image transfer rate max. | 30 fps |
| Horizontal angle of view | 65° - 2° |
| Focal length | 4.25 - 170 mm |
| Chip size | 1/2,8'' |
| Turning range | 360 ° |
| Color (dome) | clear |
| Backlight compensation | Yes |
| Housing type | Explosion-proof |
| Housing material | AISI 316L,Stainless steel |
| Speed (manual control) | 450 °/sec |
| Heating | No |
| Internal memory | SD card,SDHC Card,SDXC Card |
| Camera Type | Anti-corrosion,Explosion-proof,Stainless steel |
| Power consumption | 17.1 W |
| Photosensitivity | 0,1 lux bei 30 IRE |
| Low Speed Shutter | Yes |
| Mounting type | Ceiling,Mast mounting,Wall |
| Lens Type | Auto Focus Zoom |
| ONVIF | ONVIF Profile S |
| Power over Ethernet | IEEE 802.3at |
| Protection | IP66/68 |
| Series | ExCam |
| Control Interfaces | Ethernet |
| Power supply | PoE+ |
| System | True Day&Night |
| Day/night switching | yes |
| Temperature Range (Operating) | -20 °C - 50 °C |
| Video Compression | H.264,H.265,M-JPEG |
| Wiper | No |
| Certifications | ATEX,EACex,INMETRO,IECEx,MASC,UKEX |
| Zoom Factor (Digital) | 12 |
| Zoomfactor (optical) | 40 |
