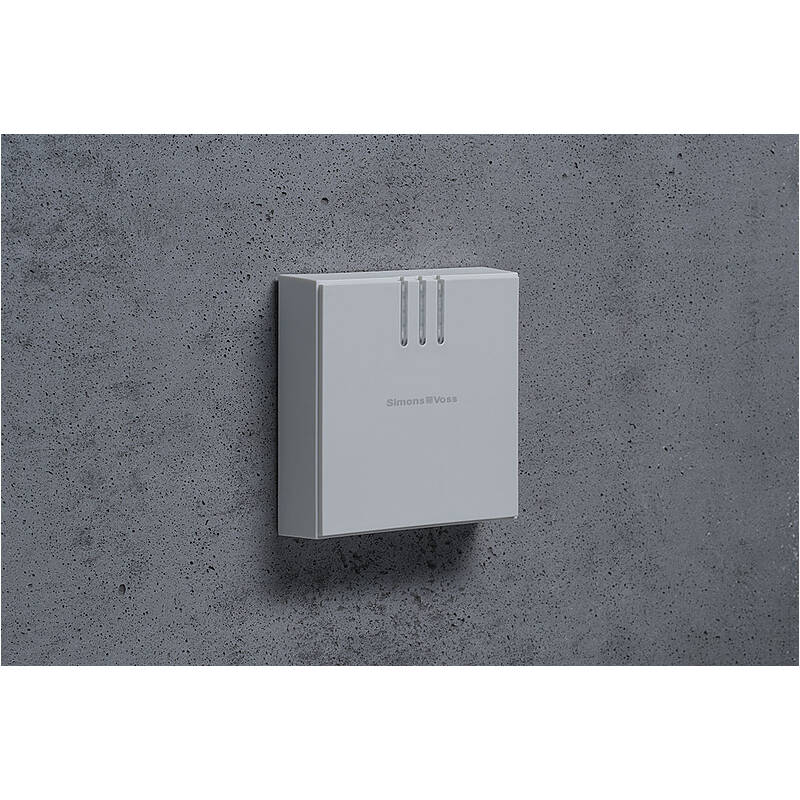

SimonsVoss - External LED reader for SmartRelais 3 Advanced - Configurator
Delivery Time 2-3 weeks
There are several variants of the readers – in addition to the housing color (dark gray or white), there are also versions with weather protection and...
read more
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270
| description | Order code | Price / pc. in € | ||
|---|---|---|---|---|
|
|
white | SREL3.EXT2.G2.W | 0,00 |
|
|
|
darg gray | SREL3.EXT2.G2.GY | 0,00 |
|
-
SimonsVoss - External LED reader for SmartRelais 3 Advanced - Configurator408,14 €
Product information "SimonsVoss - External LED reader for SmartRelais 3 Advanced - Configurator"
To use the SREL3-ADV system, at least one SimonsVoss - External LED Reader for SmartRelay 3 Advanced is required. The controller cannot read identification media. Instead, up to three readers can be connected to the controller via RS-485, which can read both active and passive identification media. After reading, the readers transmit the data to the controller, which checks the authorization of the identification medium and triggers the corresponding actions depending on the programming.
The reader itself cannot trigger any actions and can therefore also be installed in less protected areas. In the WP variant, the housing is sealed and protected against splashing water. The readers can either be supplied with power by the controller or be equipped with their own power supply unit.
Features of the SmartRelay 3 controller and its readers:
- Intelligent networked control unit to expand any locking system
- High-performance gateway in the virtual network (transmission of updated access rights to identification media)
- Connection option for the Smart Output Module (e.g., elevator control)
- Access logging differentiated by reader
- High robustness and scratch resistance of the housing:
- Increased wall thickness
- Glass-fiber-reinforced plastic
- Impact resistance rating IK09
- Visual and acoustic feedback on the operating status, also when used in combination with the vandalism protection frame SREL3.COVER
- Support for active and passive technology
- Connection of up to three readers to one controller over a maximum cable length of 150 m
- Also available as a water-resistant .WP variant
- Can be combined with the additional vandalism protection SREL3.COVER:
- Easy installation also on flush-mounted boxes
- Improved pry protection
- Reader and cover available in black-gray and white housing
- Variants:
- White housing: SREL3.EXT2.G2.W(.WP)
- White housing with vandalism protection: SREL3.EXT2.G2.W.COVER(.WP)
- Black-gray housing: SREL3.EXT2.G2.GY(.WP)
- Black-gray housing with vandalism protection: SREL3.EXT2.G2.GY.COVER(.WP)
- All products are also available as a water-resistant variant (.WP)
- Dimensions (W x H x D): 82.4 x 82.4 x 22 mm / with protective frame: approx. 115.8 x 115.8 x 33 mm
- Protection rating:
- IP20
- IP65 for WP variant
- IK09
- Power supply: Via the SREL3 ADV controller Alternatively via external power supply
- Interfaces/Connections:
- RS485: Interface to the SREL3 ADV controller, number of connections: 1, max. distance: 150 m (CAT5, shielded)
- RFID: 13.56 Hz compatible (MIFARE® Classic, MIFARE® DESFire®), range: 0 mm to max. 15 mm (card format)
- B-field: Compatible with SimonsVoss transponders, range: min. 0 cm to max. 60 cm (transponder)
- Signaling: LED: Multicolor with piezo
- Temperature range:
- Operation: -25°C to +60°C
- Storage: 0°C to +30°C (> 1 week)
- Humidity: Max. 90% without condensation
