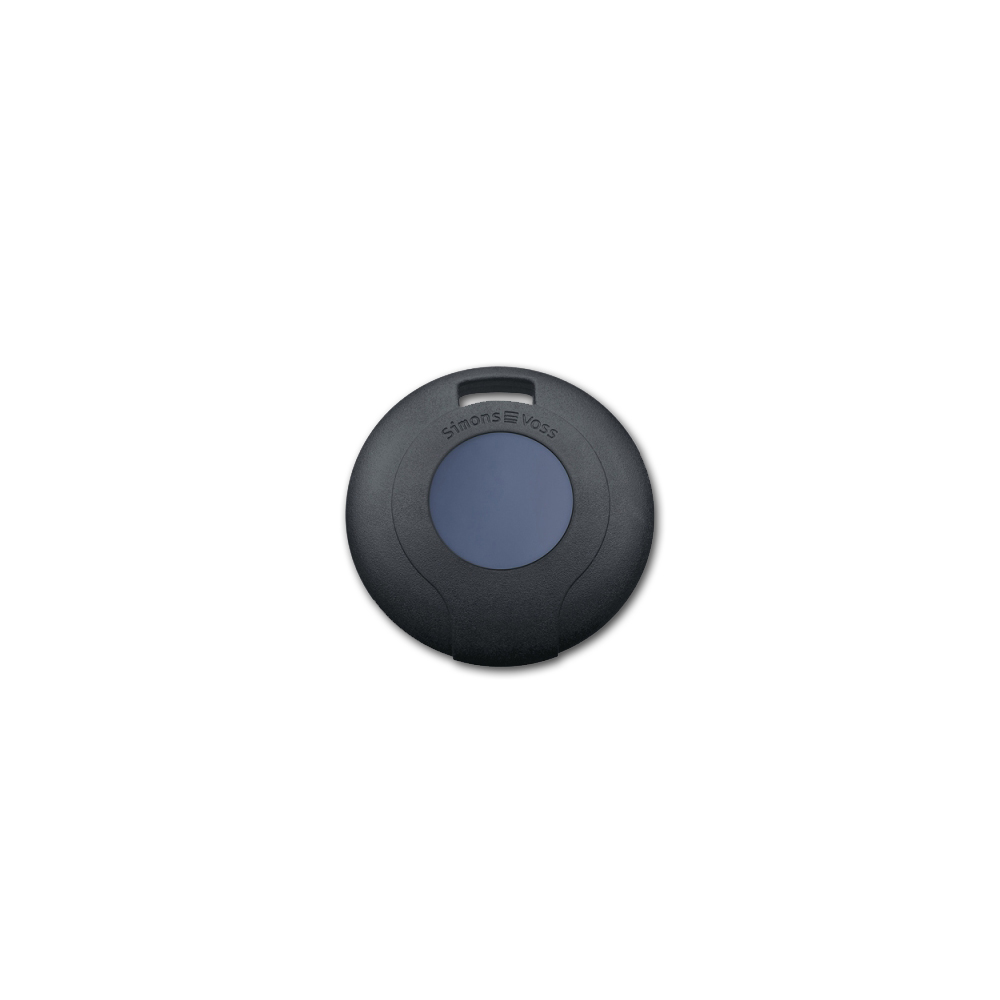

SimonsVoss - Transponder 3064 - TRA2.G2
Delivery Time 2-3 days
Identification medium in digital Lock System 3060 or MobileKEy, in robust housing, 42 mm in diameter, different colors or with additional RFID chip.
read more
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270
| description | Order code | Price / pc. in € | ||
|---|---|---|---|---|
|
|

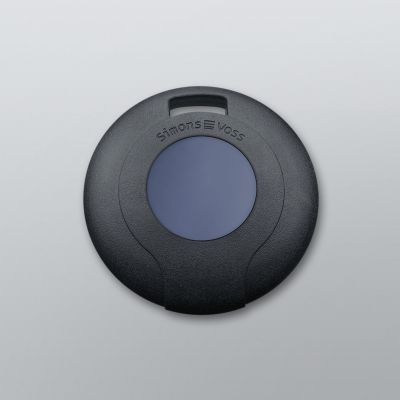

blau | TRA2.G2 | 0,00 |
|
|
|
rot | TRA2.G2.ROT | 0,00 |
|
|
|
braun | TRA2.G2.BRAUN | 0,00 |
|
-
SimonsVoss - Transponder 3064 - TRA2.G236,95 €

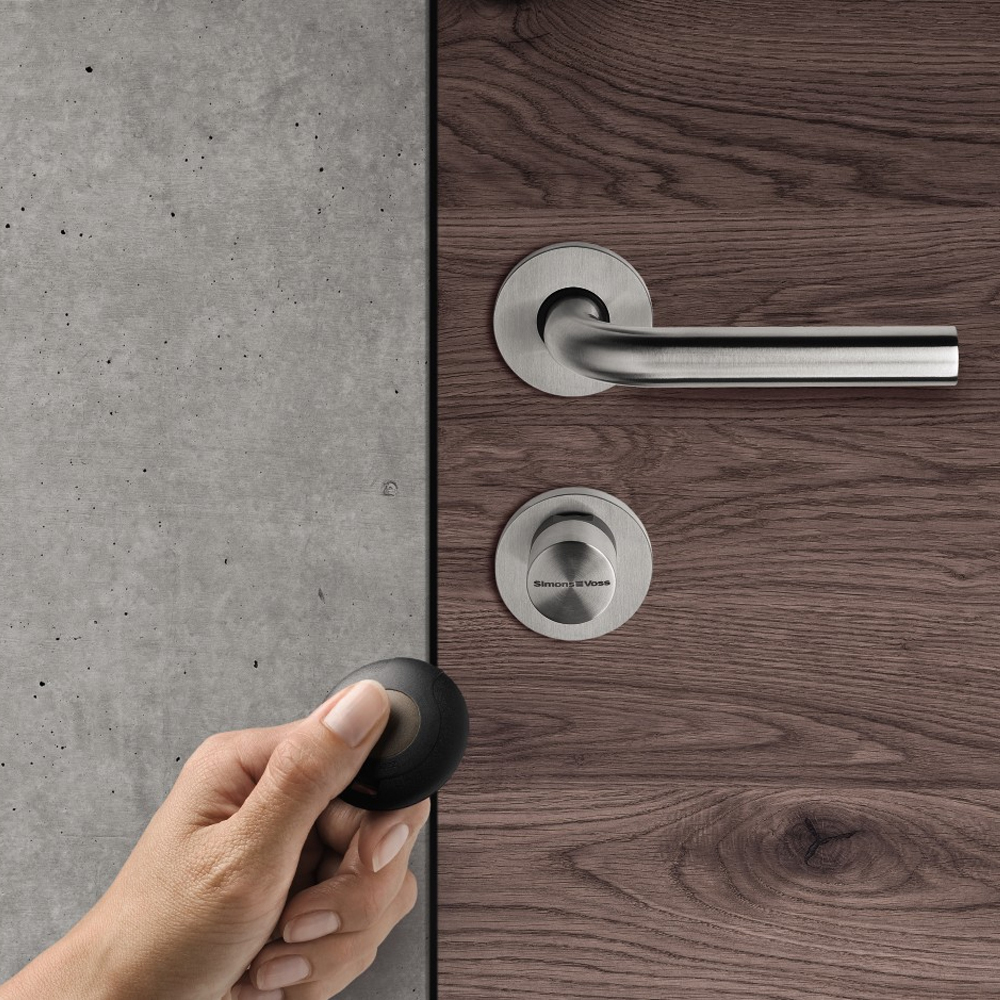

The SimonsVoss - Transponder 3064 - TRA2.G2 is the electronic key in the SimonsVoss System 3060 and MobileKey. Equipped with a high-performance battery, the SimonsVoss transponder can effect up to 400.000 locking and unlocking procedures.The digital "key" sends a radio signal to the electronic locking cylinder, which only reacts if the access is valid. If it is lost, the transponder can be locked in next to no time – a new one can be individually configured with just a few clicks of the mouse. Additional options for RFID chip for programming by customer to operate third-party systems

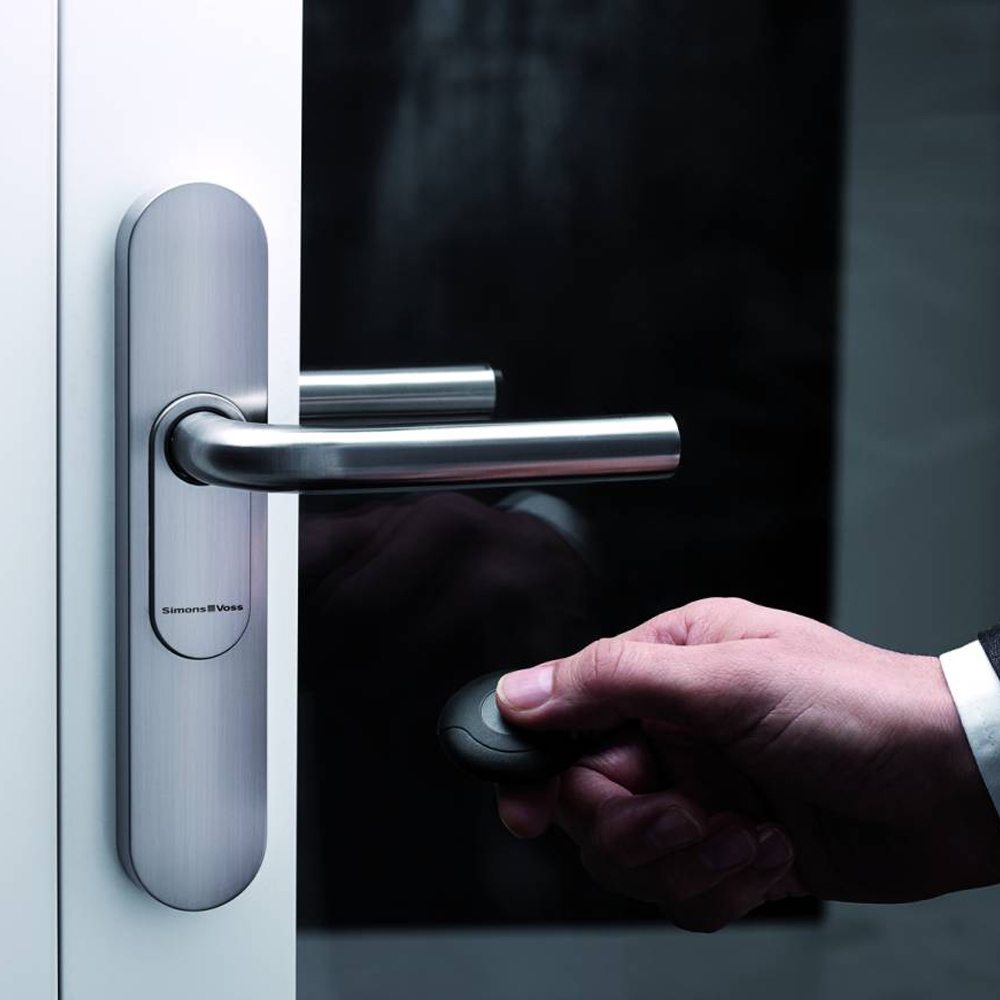

Blue, red, brown or with bonded housing or consecutive numbering. There are virtually no limits to the variety of possible types of transponders, the electronic key: as a password or fire service transponder, an explosion-proof design or one with additional chip. Manage an incredible 304.000 locking devices with your transponder and open doors and gates up to a million times with a single battery. A transponder is used for identification to operate digital locking cylinders, Smart Handles and Smart Relays in System 3060.
Login
- Housing made of black polyamide

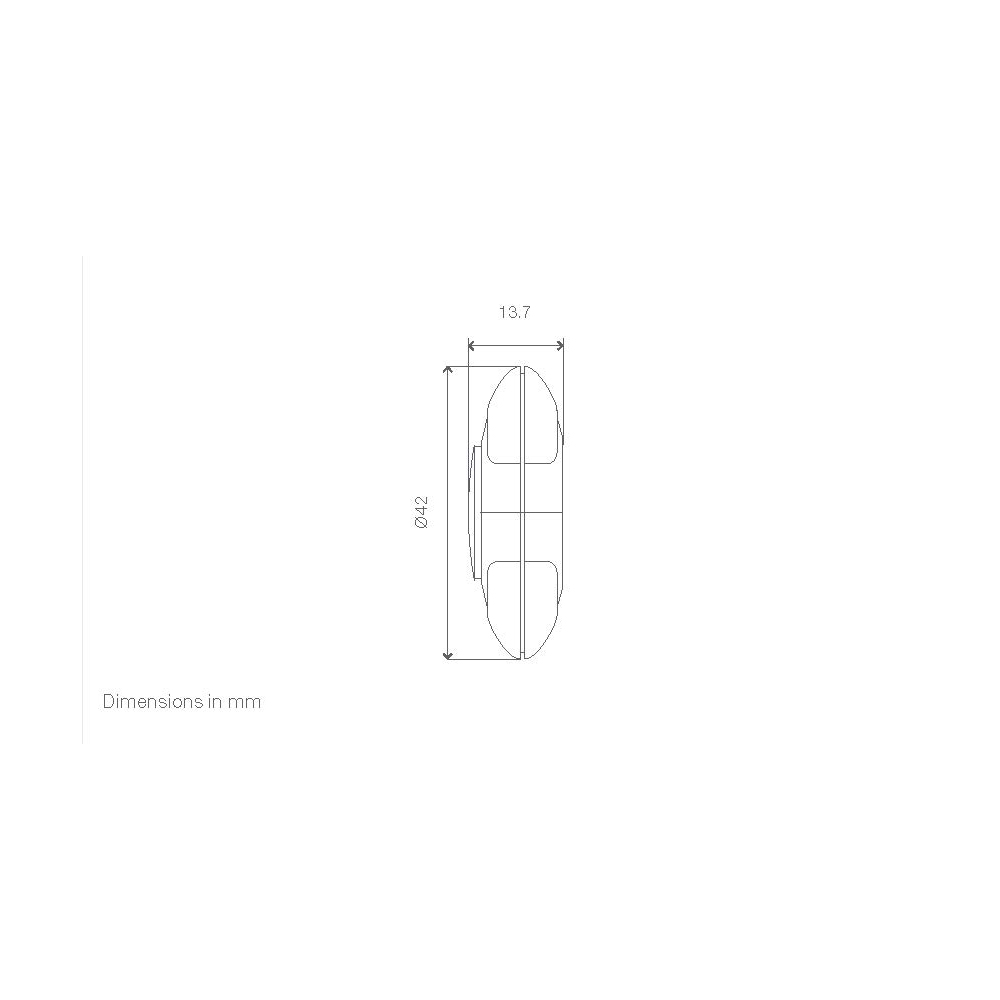

- Dimensions: 42 x 13.7 mm (Ø x H)
- Type of protection: IP65; with bonded housing: IP66
- Typical read range:
up to 40 cm to the locking cylinder/Smart Handle;
up to 120 cm to Smart Relay - Battery type: 1 x CR2032, 3 V, lithium
- Battery life: up to 400,000 activations or up to ten years on stand-by
- Temperature range: -25 °C to +65 °C
- Environmental class: III
- Number of locking devices that can be managed per transponder: up to 304,000
- Adjustable validity (activation/deactivation): more than10 years
- Storage of data records: 3 G1 and 4 G2 locking systems
- Physical access list with up to 1,000 access events can be stored
| Transponder 3064 with G1- und G2 functions Transponder MobileKey |
TRA2.G2 |

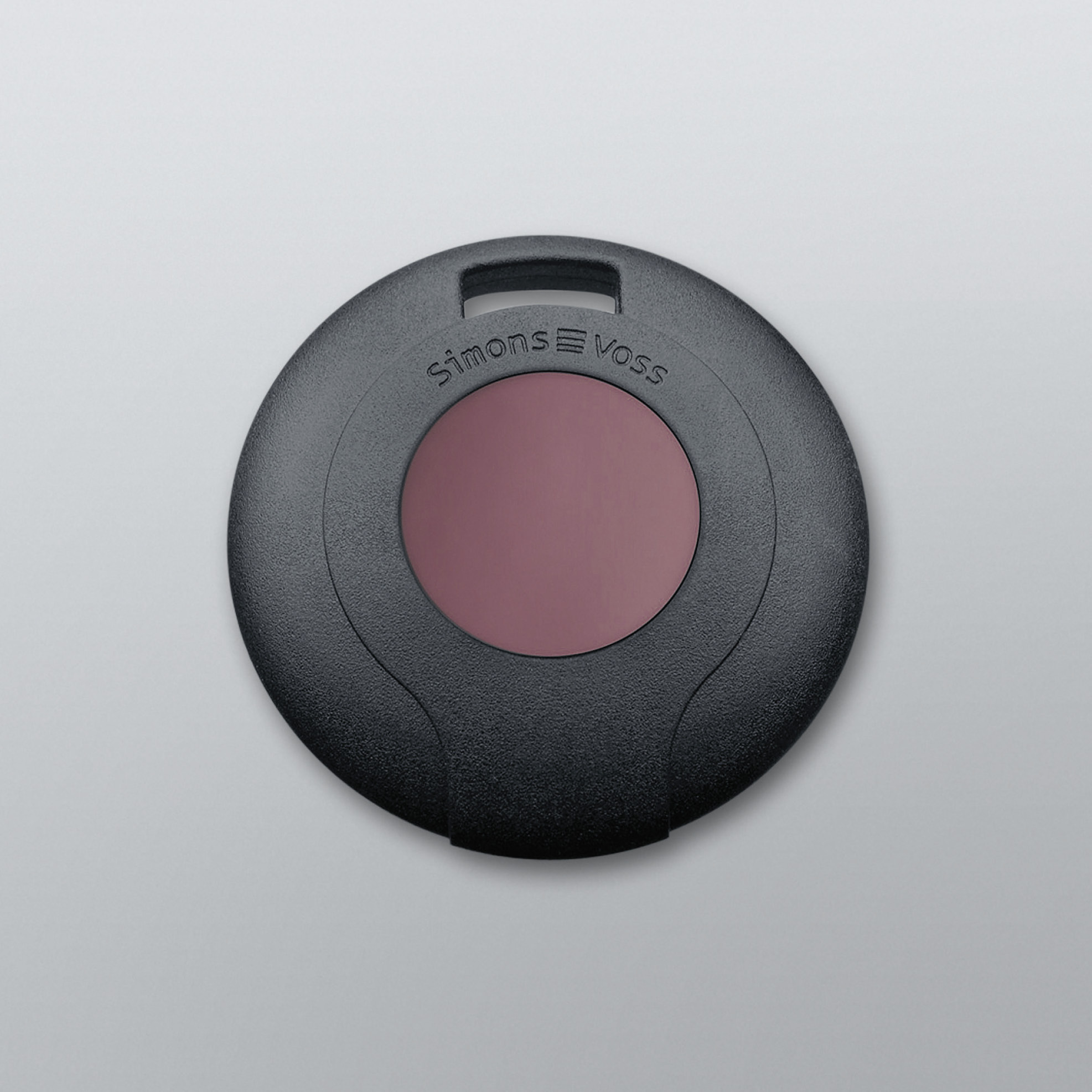

| Version with red button | .ROT |

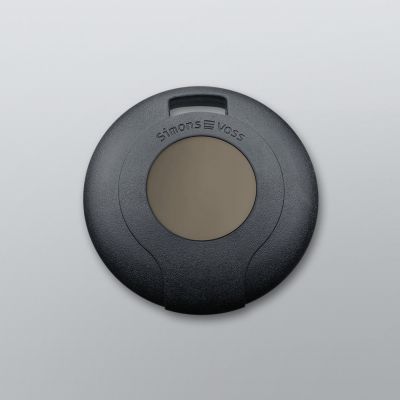

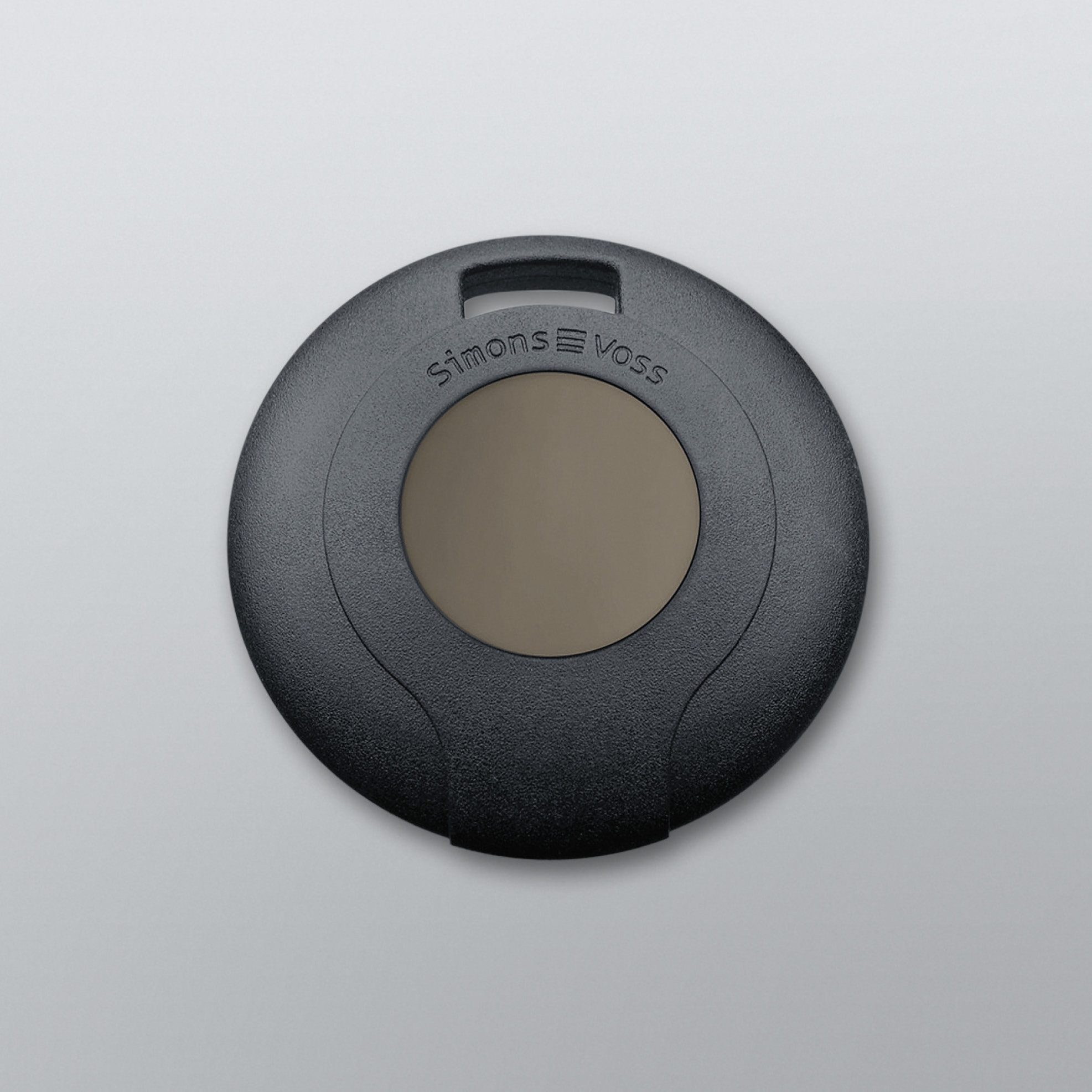

| Version with brown button | .BRAUN |
| Version bounded housing IP66 | .SPEZ |
| Version with additional EM® 4200 Chip | .RFID.EM |
| Version with additional EM® 4450 Chip | .RFID.EM4450 |
| Version with additional HITAG® 1 Chip | .RFID.HITAG |
| Version with additional HITAG® 2 Chip | .RFID.HITAG2 |
| Version with additional ATMEL® ATA5577 Chip | .RFID.AT5577 |
| Version with additional HID® 1390 eProx Chip | .RFID.HID |
| Version with additional MIFARE® Classic (1k) Chip | .RFID.MIFARE |
| Version with additional MIFARE® DESFire® EV2 (8k) Chip | .RFID.DESFIRE8K |
| Version with additional LEGIC® PRIME (MIM256) Chip | .RFID.LEGIC |
| Version with additional LEGIC® PRIME (MIM1024) Chip | .RFID.LEGIC1024 |
| Version with additional LEGIC® Advant (1024) Chip | .RFID.ADVANT1024 |
| Version with additional LEGIC® Advant (4096) Chip | .RFID.ADVANT4096 |
Required components for programming MobileKey:
- MobileKey USB programming stick - MK.CD.STARTER.G2 for PC/Laptop
- Register Web-App MobileKey Cloud
For small G2 locking systems with up to 20 locking cylinders und 100 transponders are required:
- USB config device for programming cylinders and transpoders or Pincode keypad
- Software LSM Starter 3.3 Edition for administration of access control
- max. 20 active G2 locking cylinders like FD, Comfort, Anti-panic AP2, half cylinder

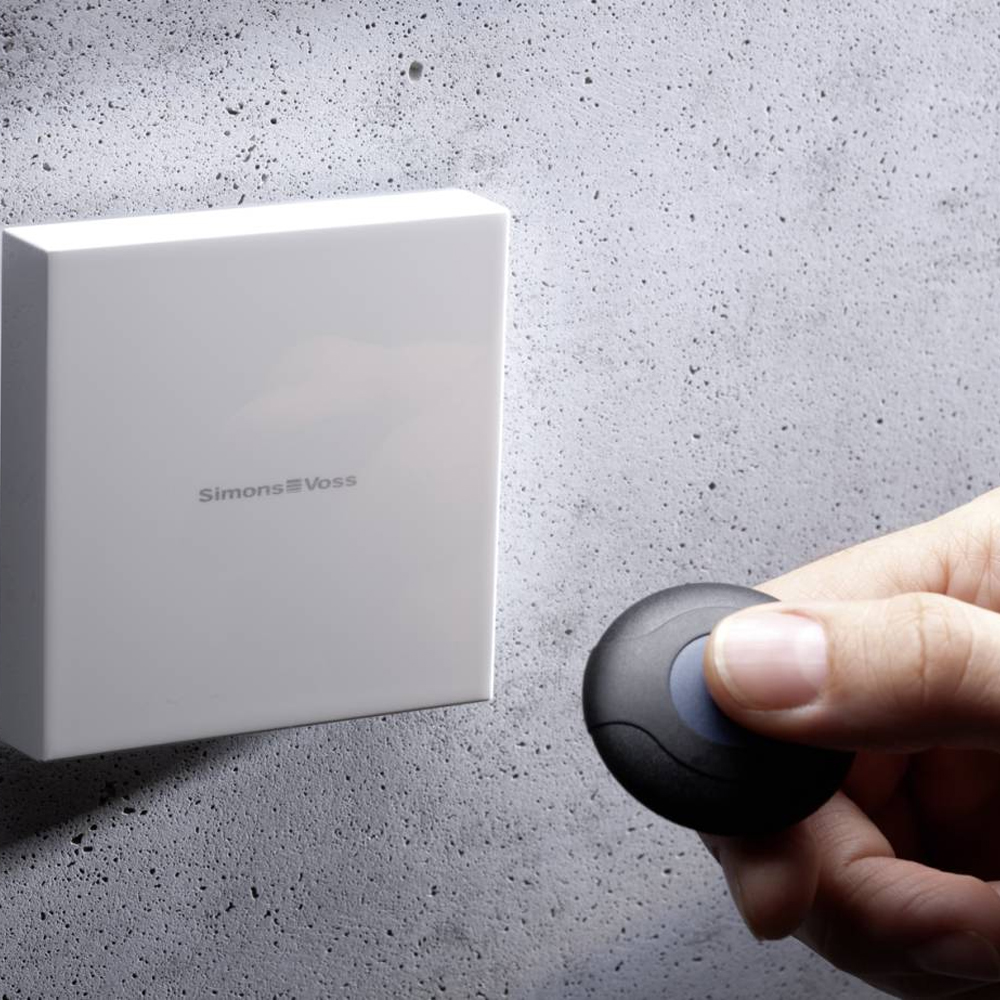

- alternatively are working SmartRelay 3063 - G2 or active Smart Handles - G2 to open or close the door
For bigger G2 locking systems with unlimited count of cylinders and transponders are required:
- Programming device SmartCD for programming locking cylinders and identification medias
- Software LSM Basic Edition for administration of access control
- active G2 locking cylinders like FD, Comfort, Anti-panic AP2, half cylinder
- alternatively are working SmartRelay 3063 - G2 or active Smart Handles - G2 to open or close the door
