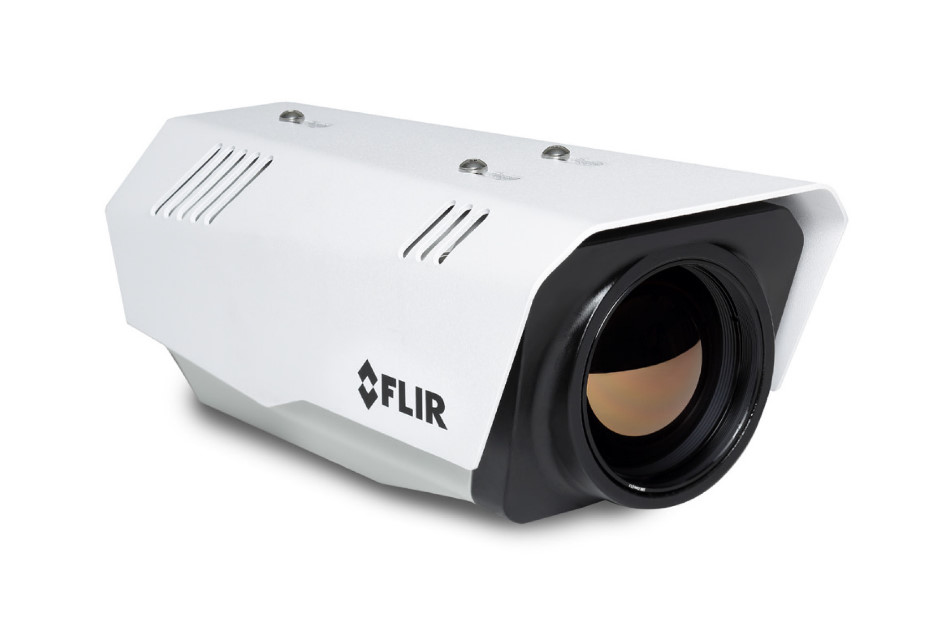

Teledyne FLIR - FC-690 AI 8.3Hz
Delivery Time - look at hints
Wärmebild Netzwerk Kamera, 7,5mm, PAL, 90° FoV, 640x512, ungekühlt
read more
€7,460.17
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270
Product information "Teledyne FLIR - FC-690 AI 8.3Hz"
Wärmebild Netzwerk Kamera, 7,5mm, PAL, 90° FoV, 640x512, ungekühlt
Manufacturer number: FC690AI09
Download manufacturer datasheet
Main features
- Scharfes und kontrastreiches Wärmebild
- KI-basierte Videoanalysefunktionen
- Geolokalisierung des Ziels für Übergabe an PTZ
- Konzipiert für rauhe Umgebungsbedingungen
- Steuerung und Bedienung über TCP/IP
- Multistreaming in H.264, H.265, MJPEG
- Simultaner analoger Videoausgang, PAL
- Integrierte Heizung
- Sonnenblende
- Power over Ethernet
- Schutzart IP66/67
Spezifications
| Alarm inputs | 0 |
| Image transfer rate max. | 8.3 fps |
| Horizontal angle of view | 90° |
| Vertical angle of view | 69° |
| Focal length | 7,5 mm |
| Detection range (m) | 0 m |
| Digital Noise Reduction (DNR) | Yes |
| Color (Housing) | weiß |
| Housing type | Outside |
| Housing material | Metal |
| Internal memory | SD card |
| Power consumption | 32 W |
| Mounting type | Mast mounting,Wall |
| Lens Type | Prime lens |
| ONVIF | ONVIF Profile S,ONVIF Profile G,ONVIF Profile T |
| Protection | IP66/67 |
| Series | Flir FC-Serie AI |
| Control Interfaces | Ethernet |
| Power supply | 24VAC,12VDC,24VDC,PoE+ |
| System | Thermal image |
| Temperature Range (Operating) | -50°C ~ +70°C |
| Thermal resolution | 640x512 |
| Video Compression | H.264,H.265,M-JPEG |
| Certifications | FCC |
Product availability information:
The item is ordered especially for you, so it is not possible for return, withdrawal or cancellation. The following is non-binding and subject to storage and delivery information from our suppliers:
In stock: 0, Expectation: 0, Replacement time: 4 weeks (Last update: 14.03.2026) - subject to prior sale
