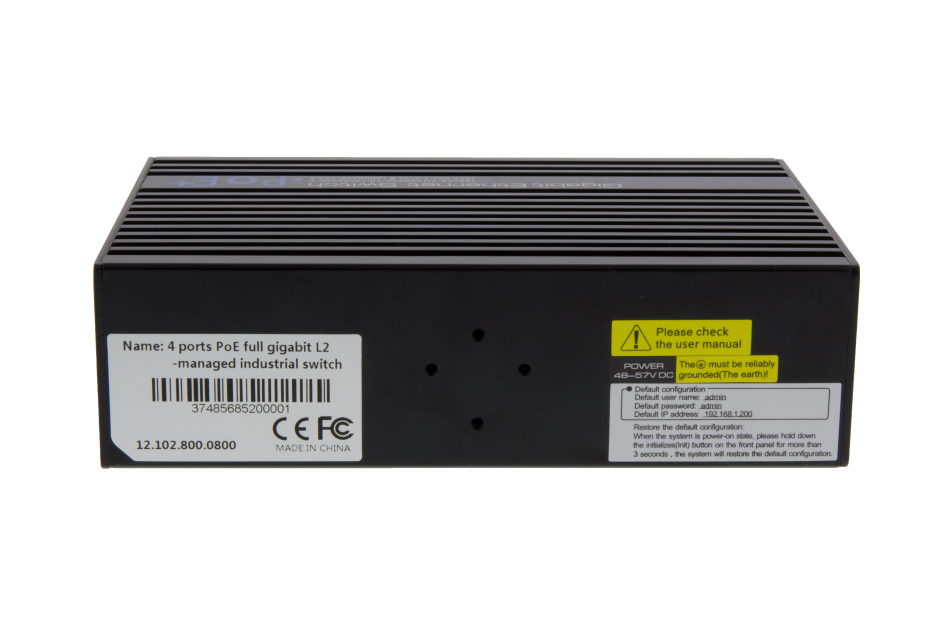

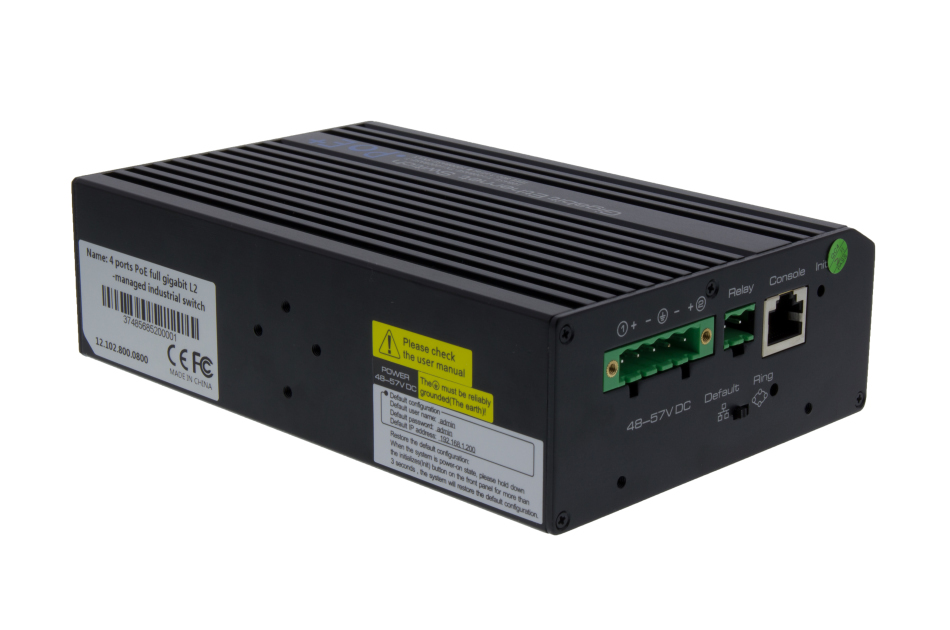

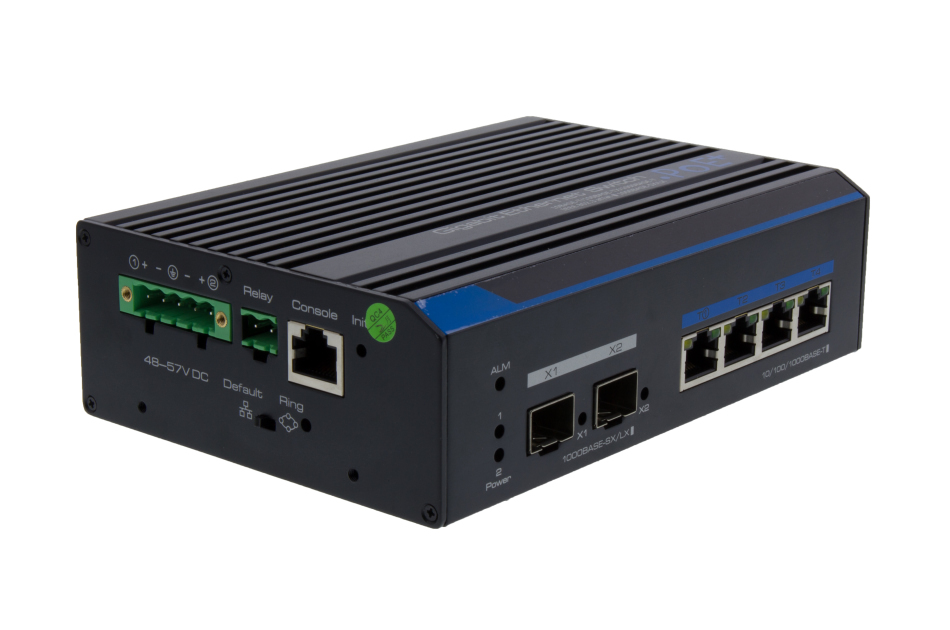

eneo - IAM-5SG1004MMA
Available, delivery time: 2-3 days
Gigabit Switch, Managed, 120W, 4x PoE, 2x SFP, 1000Mbps, Industrie Design, -40°C~+75°C
read more
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270
Product information "eneo - IAM-5SG1004MMA"
Product availability information:
The item is ordered especially for you. The following is non-binding and subject to storage and delivery information from our suppliers:
- Discontinued line Availability remaining quantity: 10
- Expectation: 0
- Replacement time: -
- Last update: 22.09.2025 - subject to prior sale
SALE - Übertragungstechnik - eneo - IAM-5SG1004MMA
Gigabit Switch, Managed, 120W, 4x PoE, 2x SFP, 1000Mbps, Industrie Design, -40°C~+75°C
Manufacturer datasheet
Hauptmerkmale
- Gigabit PoE Switch, DIN Rail
- 2x SFP Gigabit Uplink Ports
- 4x 10/100/1000 PoE Ports, IEEE 802.3af/at
- Unterstützt VLAN, RTSP, ''Fast Ring'' und QoS
- Bis zu 30W pro Port, insgesamt =120W
- Fast Ring-Redundanz, Rekonfiguration <20ms
- Redundante Stromversorgung möglich
- ESD Schutz IEC61000-4-5 Standard
- Web-Konfiguration, Web-Management
- Fehler Relay, Console-Port, Status LEDs
- CCTV-Modus ermöglicht Übertragung bis 250m @10Mbps
- Temperaturbereich -40°C~+75°C
Specifications
| Number of PoE ports | 4 |
| Design | DIN Rail Module |
| Dimensions (WxHxD) (extended) | 46,5x110x163mm |
| Remark | External power supply specification: 100~240VAC,150W,30x70x150mm,-30°~+70°,CCTV mode: transmission o |
| ESD protection | IEC61000-4-2,IEC61000-4-5 |
| Weight | 680 kg |
| Scope of delivery | manual,power cord,Mounting Bracket,PSU |
| Multicast | Yes |
| Eneo _netzwerkstandards | IEEE 802.3 10BaseT,IEEE 802.3u 100BaseTX,IEEE 802.3x Flow Control,IEEE 802.1D Spanning Tree Protocol |
| Security | Password,Fast Ring,Port Isolation,Port Speed Setting,Radius Authentication |
| Internal Switching Capacity (Gbit) | 24 Gbps |
| Internal Switching Capacity (MP per second) | 8.9 Mpps |
| Ethernet interface | 10Base-T,100Base-TX,1000Base-T |
| Type | Layer2 Switch |
| Management | Yes |
| Mounting type | DIN Rail,Wall |
| PoE Budget (Total) | 120 W |
| Ports | 2x 1000Base-X SFP,4x 10/100/1000Base-T |
| Power over Ethernet | IEEE 802.3af,IEEE 802.3at |
| Series | eneo Switch |
| Power supply | 48-57 VDC |
| Temperature Range (Operating) | -40°C ~ +75°C |
| VLAN | Yes |
| Manufacturers sheet | Download PDF-document |
