eneo - INM-78M2812M0A
Item no.:
236668
Vendor item no.:
236668
Available, delivery time: 2-3 days
Netzwerk Multisensor Kamera, 4x 3840x2160, Tag/Nacht, 2,8-12mm, IR, Weißlicht, WDR, IK10, IP67
read more
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270
Product information "eneo - INM-78M2812M0A"
Product availability information:
The item is ordered especially for you. The following is non-binding and subject to storage and delivery information from our suppliers:
- In stock: 41
- Expectation: 0
- Replacement time: 15 weeks
- Last update: 08.09.2025 - subject to prior sale

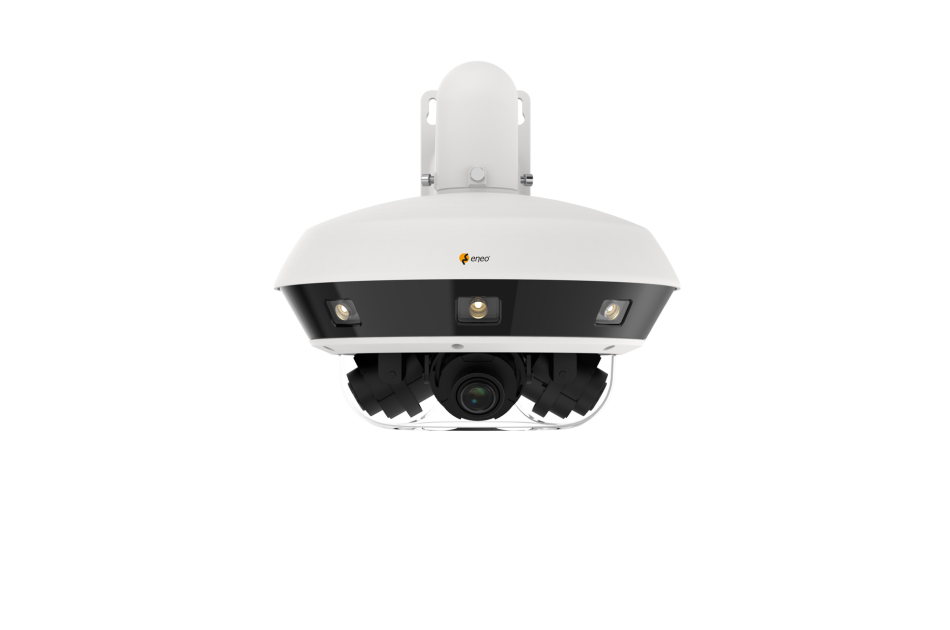

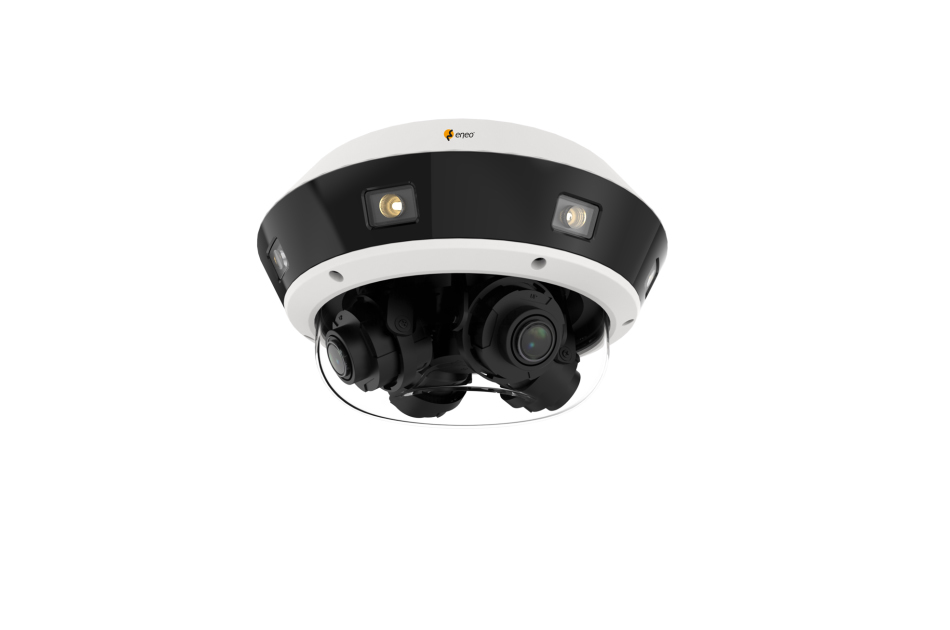

Kameratechnik - Panorama - eneo - INM-78M2812M0A
Netzwerk Multisensor Kamera, 4x 3840x2160, Tag/Nacht, 2,8-12mm, IR, Weißlicht, WDR, IK10, IP67
Hauptmerkmale
- Multidirektionale Kamera 4x 1/1.8'' CMOS
- Max. Auflösung 3840 x 2160, Bildrate 25fps
- Objektive mit motorisierter Brennweite 2,8-12mm
- KI-Analysefunktionen inklusive Objektklassifizierung
- Smart Codec H.265/H.264, Multi-Streaming
- Browserunabhängig (Edge, Safari, Firefox, Chrome)
- Unterstützt T-WDR , BLC, HLC, und 3D DNR
- Unterstützt ONVIF Profile G, S und T
- IR- und Weißlichtbeleuchtung integriert
- Für den Außeneinsatz IP67, Vandalismus geschützt IK10
- NDAA-Konformität
- Wandarm und PoE Injector im Lieferumfang enthalten
Specifications
| Alarm inputs | 0 |
| Audio support | Yes |
| Resolution standard | 32 MP |
| Recording sensor | CMOS |
| Lighting | Infrared,White |
| Motion detector | Yes |
| Image resolution max. | 3840x2160 |
| Image transfer rate max. | 25 fps |
| Horizontal angle of view | 48 - 112° |
| Focal length | 2,8 - 12 mm |
| Chipgröße | 1/1,8'',Chip size,1/1,8'' |
| Digital Noise Reduction (DNR) | Yes |

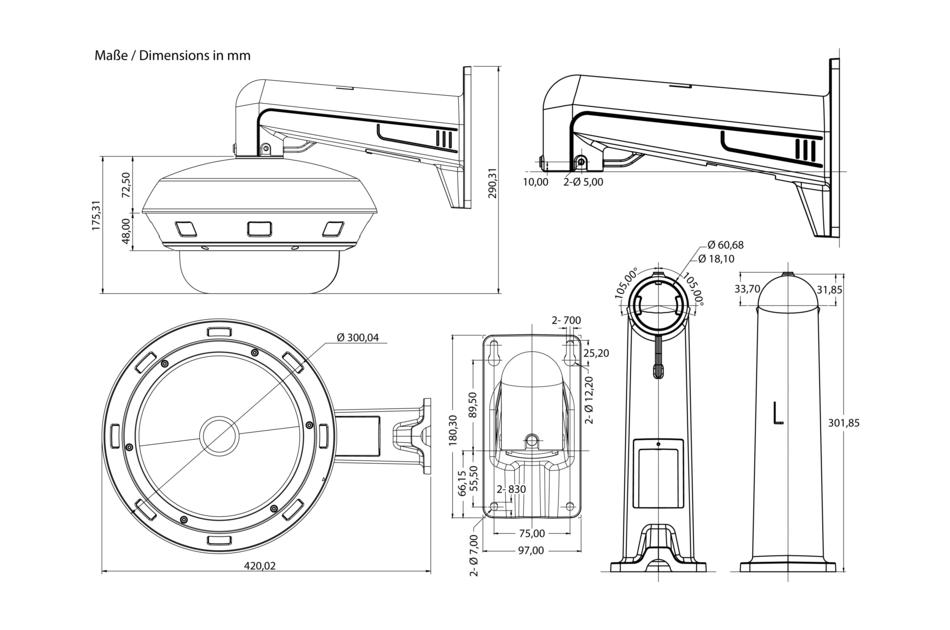

| Dimensions (WxHxD) (extended) | 300x195mm |
| Alarm processing | recording internal storage (SD card),E-Mail,HTTP,FTP,TCP,UDP,alarm out,Cloud Upload |
| Audio | 2 Way Audio |
| Resolution (extended) | 3840x2140 (16:9),2592x1944 (4:3),2592x1520 (16:9),2304x1296 (16:9),1920x1080 (16:9),1280x960 (4:3),1 |
| Illumination range | Approx. 35 m IR | Approx. 25 m White light |
| Remark | To guarantee you an optimum user experience,we recommend that you only use components of the same br |
| Watch (62px/m) | 21.6 m |
| Aperture Range (F) | F1.3 |
| Browser | MS Internet Explorer 10/11,Google Chrome,Firefox,Safari |
| Data stream types | Triple-Stream(Main/Sub/Mobile) |
| Detect (125px/m) | 9.6 m |
| ESC | 1/5 ~ 1/20.000sec. |
| External connections | RJ-45,12VDC input,24VAC input,Alarm in/output,Audio input/output,micro SD card slot 256 GB |
| Identify (250px/m) | 3.7 m |
| Camera shape | Minsters |
| Scope of delivery | manual,bag of screws,wall bracket,PoE-Injector 100-240VAC~ 56VDC,60W |
| Manual Electric Shutter (MES) | 1-5~1-20,000sec. |
| Menu languages | English,German,French,Italian,Portuguese,Spanish,Turkish,Russian,Japanese |
| Multicast | Yes |
| Password | Administrator and User |
| Privacy Zone | Areas-ON/OFF switchable |
| SDK | upon request |
| Signal-to-noise ratio | 51 dB |
| Day/night mode | Day,Night,Automatic,Time |
| Text overlay | Switchable on/off |
| Perceiving (25px/m) | 56.7 m |
| White balance | Automatic |
| Color (Housing) | RAL9003,Pantone P 179-1 |
| Color (dome) | clear |
| Backlight compensation | Yes |
| Housing type | Outside |
| Housing material | Aluminium |
| Internal memory | microSD card,microSDHC card,microSDXC card,256GB |
| Camera Type | Multi-sensor camera |
| Photosensitivity | 0,006 Lux bei F1,2 |
| Low Speed Shutter | Yes |
| Mounting type | Wall |
| Network Protocols | TCP-IP,HTTP,DHCP,DNA,DDNS,RTP,RTSP,NTP,UPnP,SMTP,HTTPS,FTP,PPPoE |
| Lens Type | Varifocal (motorized) |
| ONVIF | ONVIF Profile S,ONVIF Profile G,ONVIF Profile T,ONVIF Profile M |
| Power over Ethernet | IEEE 802.3bt |
| Protection | IP67 |
| Series | eneo IN-Serie |
| Control Interfaces | Ethernet |
| Power supply | 24VAC,12VDC,PoE++ |
| System | Electronic Day&Night |
| Day/night switching | Switchable IR Filter (ICR) |
| Temperature Range (Operating) | -30°C ~ +55°C,@ Luftfeuchtigkeit 95% oder weniger (nicht kondensierend) |
| Vandalism-resistant | Yes |
| Video Compression | H.264,H.265,H.264+,H.265+,M-JPEG |
| Wide Dynamic Range (WDR) | WDR 120dB |
| Certifications | IK10 |
