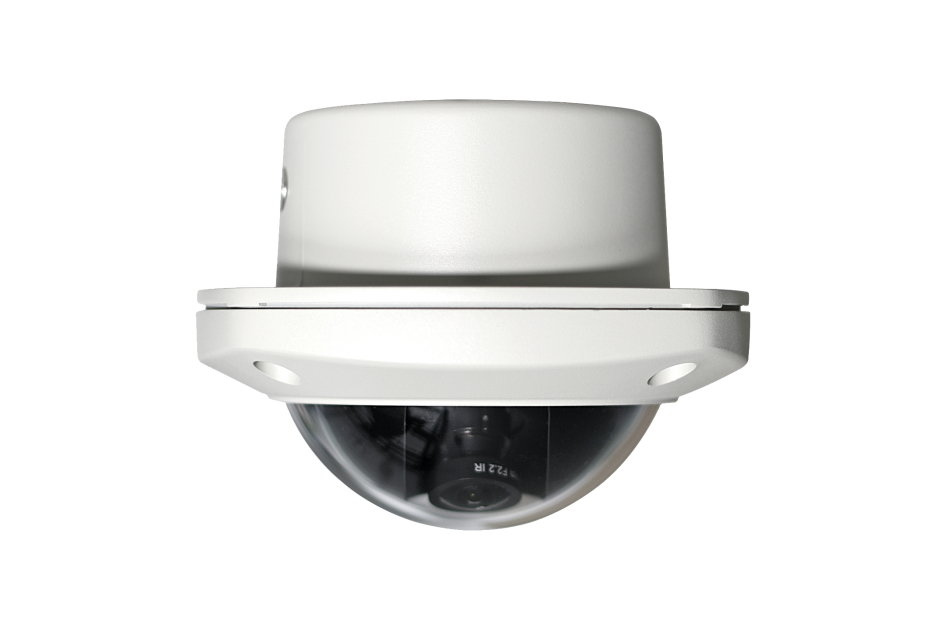

eneo - ISD-52F0023WFA
Available, delivery time: 2-3 days
1/2,8'' Netzwerk Dome, WDR, 1920x1080, Tag/Nacht, 2,3mm H.265, PoE, 12VDC, Einbau
read more
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270
Product information "eneo - ISD-52F0023WFA"
Product availability information:
The item is ordered especially for you. The following is non-binding and subject to storage and delivery information from our suppliers:
- Discontinued line Availability remaining quantity: 50+
- Expectation: 0
- Replacement time: -
- Last update: 22.09.2025 - subject to prior sale
SALE - Kameratechnik - eneo - ISD-52F0023WFA
1/2,8'' Netzwerk Dome, WDR, 1920x1080, Tag/Nacht, 2,3mm H.265, PoE, 12VDC, Einbau
Manufacturer datasheet
Hauptmerkmale
- 1/2,8'' 2.0 MP Sony STARVIS CMOS-Sensor
- Auflösung max. 1920x1080 (Full HD)
- Festbrennweite 2,3mm, Tag/Nacht Objektiv (HFoV 135°)
- Quad Streaming (H.265, H.264, MJPEG)
- Intelligente selbstlernende Video Analyse (IntelliVision inside)
- WDR 120dB, Smart BLC
- Steckplatz für Micro SD-Speicherkarte
- ONVIF-Konformität, PoE IEEE802.af, 12VDC
- Audio-, Alarm- Ein- und Ausgänge
- Privatzonen, Passwortschutz, Browserunabhängig
- Anhebung der Bildwiederholrate bei Bewegung
- Für den Innen- und Außeneinsatz geeignet IP66, Einbaugehäuse
Specifications
| Alarm inputs | 1 |
| Audio support | Yes |
| Resolution standard | 2 MP |
| Recording sensor | CMOS |
| Lighting | no |
| Image resolution max. | 1920x1080 |
| Image transfer rate max. | 30 fps |
| Horizontal angle of view | 135° |
| Focal length | 2,3 mm |
| Chip size | 1/2,8'' |
| Digital Noise Reduction (DNR) | Yes |
| Dimensions (WxHxD) (extended) | 95x120mm |
| Alarm processing | recording internal storage (SD card),E-Mail,FTP,Boost,HTTP,TCP,UDP,HTTPS,XML,alarm out |
| Audio | 2 Way Audio |
| Resolution (extended) | 1920x1080 (16:9),1440x1080 (4:3),1280x1024 (5:4),1024x768 (4:3),1280x720 (16:9),800x600 (4:3),800x48 |
| Remark | To guarantee you an optimum user experience,we recommend that you only use components of the same br |
| Watch (62px/m) | 14 m |
| Browser | Safari: MJPEG setup limited,Mozilla: MJPEG setup limited,Google Chrome: MJPEG setup limited,Edge: MJ |
| Data stream types | Quad Streaming |
| Detect (125px/m) | 4 m |
| External connections | Alarm output,Alarm input,Audio input/output,RJ-45,12VDC input (DC plug),connection cable approx.55cm |
| Flickerless function | Yes |
| Identify (250px/m) | 4 m |
| Camera shape | Minsters |
| Scope of delivery | manual,bag of screws |
| Menu languages | English,German,French,Russian,Chinese,Korean,Japanese |
| Multicast | Yes |
| Password | Administrator and User |
| SDK | upon request |
| Signal-to-noise ratio | 48 dB |
| Day/night mode | Automatic,Day,Night |
| Text overlay | available |
| Perceiving (25px/m) | 35 m |
| White balance | Automatic,Manual |
| Color (Housing) | weiß |
| Color (dome) | clear |
| Housing type | Outside |
| Housing material | Aluminium |
| Heating | Yes |
| Internal memory | microSDHC card,microSDXC card |
| Photosensitivity | 0,08 Lux bei F2,2,40 IRE |
| MOD (Minimum Object Distance) | 0.3 m |
| Mounting type | Ceiling-wall installation |
| Lens Type | Prime lens |
| ONVIF | ONVIF Profile S,ONVIF Profile T |
| Power over Ethernet | IEEE 802.3af |
| Protection | IP66 |
| Series | eneo SN-Serie |
| Power supply | 12VDC,Poe |
| System | True Day&Night |
| Day/night switching | Switchable IR Filter (ICR) |
| Temperature Range (Operating) | -20°C ~ +50°C |
| Vandalism-resistant | Yes |
| Video Compression | H.264,H.265,H.264+,H.265+,M-JPEG |
| Wide Dynamic Range (WDR) | WDR 120dB |
| Certifications | IK10 |
| Zoom Factor (Digital) | 0 |
| Manufacturers sheet | Download PDF-document |
