eneo - ISM-65F0028W0A
Available, delivery time: 2-3 days

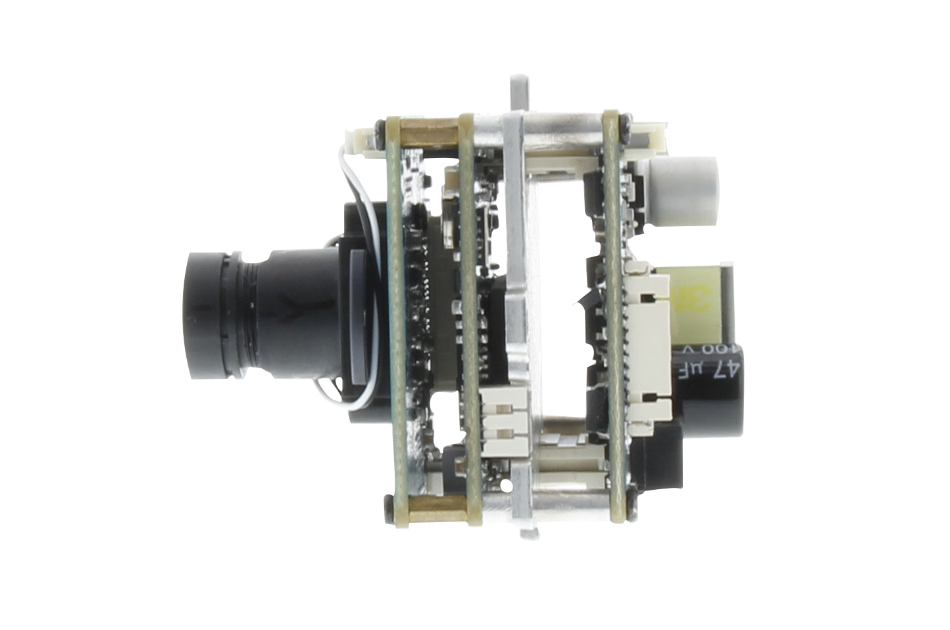

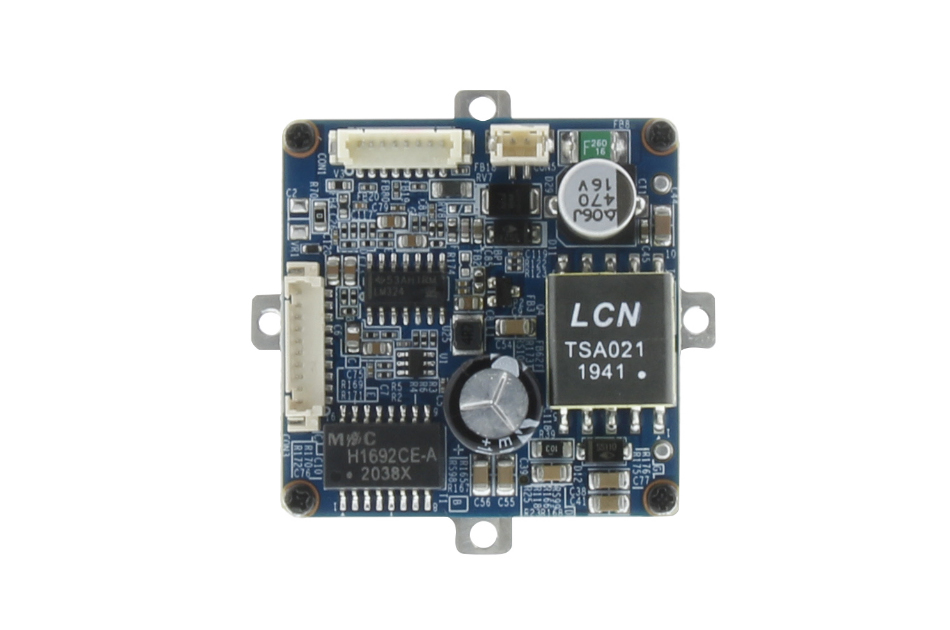

1/2,8'' Netzwerk Platinenkamera 2592x1944, Tag/Nacht, WDR, 2,8mm, H.265, PoE, 12VDC
read more
€338.02
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270
Product information "eneo - ISM-65F0028W0A"
Product availability information:
The item is ordered especially for you. The following is non-binding and subject to storage and delivery information from our suppliers:
- Discontinued line
- In stock: 82
- Expectation: 0
- Replacement time: -
- Last update: 13.10.2025 - subject to prior sale
Kameratechnik - Spezialkameras - Platinenkameras - eneo - ISM-65F0028W0A
1/2,8'' Netzwerk Platinenkamera 2592x1944, Tag/Nacht, WDR, 2,8mm, H.265, PoE, 12VDC
Manufacturer datasheet
Hauptmerkmale
- 1/2,8'' CMOS-Sensor Progressive Scan
- Hervorragende Lichtempfindlichkeit
- Auflösung max. 2592x1944 (5MP)
- Objektiv, festbrennweite 2,8mm
- WDR (120dB), BLC, 3DNR
- Tripple Streaming (H.265, H.264, MJPEG)
- Browserunabhängig (IE, Edge, Safari, Firefox, Chrome)
- Objektklassifizierung (Person, Auto, Zweirad)
- Unterstützt ONVIF Profile S
- Temperaturbereich (Betrieb) -20°C +50°C
- Platinen Kamera Maße 50x50x59mm
- Spannungsversorgung PoE oder 12VDC
Specifications
| Alarm inputs | 1 |
| Audio support | Yes |
| Resolution standard | 5 MP |
| Recording sensor | CMOS |
| Lighting | no |
| Image resolution max. | 2592x1944 |
| Image transfer rate max. | 30 fps |
| Horizontal angle of view | 105,2° |
| Focal length | 2,8 mm |
| Chip size | 1/2,8'' |
| Digital Noise Reduction (DNR) | Yes |
| Dimensions (WxHxD) (extended) | siehe Maßzeichnung |
| Alarm processing | alarm out,FTP,E-Mail |
| Audio | 2 Way Audio |
| Resolution (extended) | 2592x1944 (4:3),2592x1520 (16:9),2304x1296 (16:9),2048x1536 (4:3),1920x1080 (16:9),1280x1024 (5:4),1 |
| Remark | NDAA compliance under Section 889,To guarantee you an optimum user experience,we recommend that you " |
| Watch (62px/m) | 26.1 m |
| Browser | MS Internet Explorer 11,Safari: MJPEG,Mozilla: MJPEG,Google Chrome: Java,Edge: MJPEG |
| Data stream types | Multi-Streaming |
| Detect (125px/m) | 5.7 m |
| External connections | 12VDC power input,Alarm in/output,Audio in/output,RJ-45 |
| Flickerless function | Yes |
| Identify (250px/m) | 5.7 m |
| Camera shape | Printed circuit board |

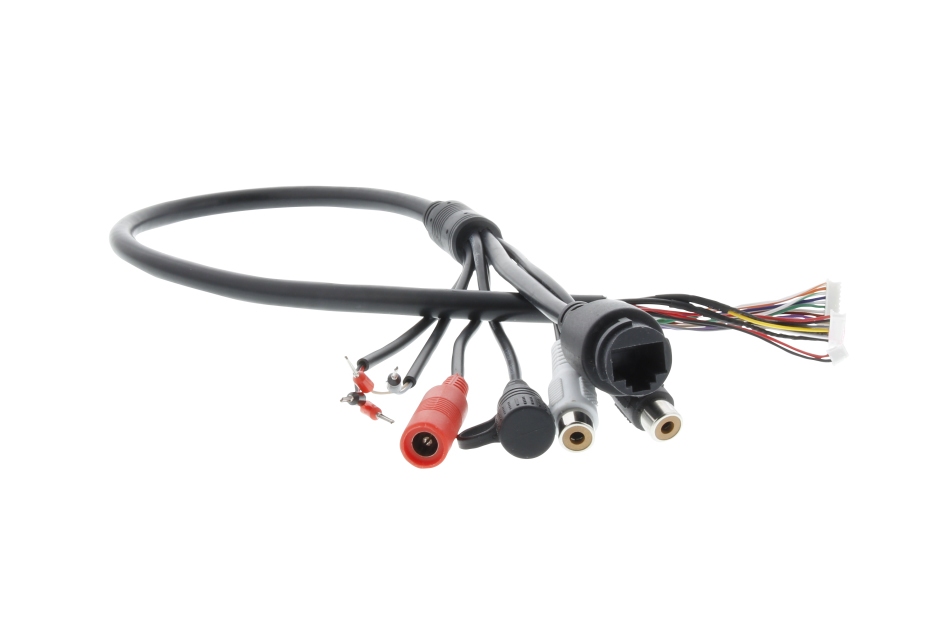

| Scope of delivery | manual,Connection cable set |
| Menu languages | English,German |
| Multicast | Yes |
| Password | Administrator and User |
| Signal-to-noise ratio | 50 dB |
| Day/night mode | Automatic,Day,Night,Time |
| Text overlay | available |
| Perceiving (25px/m) | 66.7 m |
| White balance | ATW,Manual |
| Housing type | without housing |
| Heating | Yes |
| Internal memory | no |
| Camera Type | Board Camera |
| Photosensitivity | 0,003 Lux bei F1,6 |
| MOD (Minimum Object Distance) | 0.5 m |
| Mounting type | Built-in module |
| Lens Type | Prime lens |
| ONVIF | ONVIF Profile S |
| Power over Ethernet | IEEE 802.3af |
| Control Interfaces | Ethernet |
| Power supply | 12VDC,Poe |
| System | True Day&Night |
| Day/night switching | Switchable IR Filter (ICR) |
| Temperature Range (Operating) | -20°C ~ +50°C |
| Video Compression | H.264,H.265 |
| Wide Dynamic Range (WDR) | WDR 120dB |
| Manufacturers sheet | Download PDF-document |
