eneo - MPD-62M2713P0B
Delivery Time - look at hints
HD Analog Dome Motorized, Tag/Nacht, 1920x1080, Infrarot, WDR, 2,7-13,5mm, 12VDC, Innen
read more
€270.19
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270
Product information "eneo - MPD-62M2713P0B"
HD Analog Dome Motorized, Tag/Nacht, 1920x1080, Infrarot, WDR, 2,7-13,5mm, 12VDC, Innen
Manufacturer number: 243652
Main features
- `1/2,8'' 2 Megapixel SONY STARVIS 2 CMOS-Sensor `
- Auflösung max. 1920x1080 Pixel (Full HD)
- Hervorragende Leistung bei schwachem Licht
- Multisignal: HD-TVI, AHD, CVI und Composite wählbar
- Digital Signal: EX-SDI, HD-SDI wählbar
- Motorisiertes Varifokal Objektiv 2,7~13,5mm
- Schwenkbarer IR-Sperrfilter
- ROI (Region of Interest) WDR Modus
- Integrierter Bewegungsmelder, Defog, Privat Zonen
- `Keiladapter im Lieferumfang (10° Neigung) `
- Beidseitig kratzfest beschichtete Kuppel
- Einfache Installation, 3-Achsen-Aufhängering
Spezifications
| Recording sensor | CMOS |
| Lighting | Infrared |
| Motion detector | Yes |
| Image resolution max. | 1920x1080 |
| Horizontal angle of view | 101 - 32° |
| Vertical angle of view | 54 - 18° |
| Focal length | 2,7 - 13,5 mm |
| Chip size | 1/2,8'' |
| Digital Noise Reduction (DNR) | Yes |
| Dimensions (WxHxD) (extended) | 94x116mm |
| Resolution (extended) | 1920x1080,1280x720,720x576 |
| Illumination range | ca. 30m |
| Remark | NDAA compliance under Section 889 |
| Watch (62px/m) | 18 - 52 m |
| Aperture Range (F) | F1.6 |
| Detect (125px/m) | 8 - 25 m |

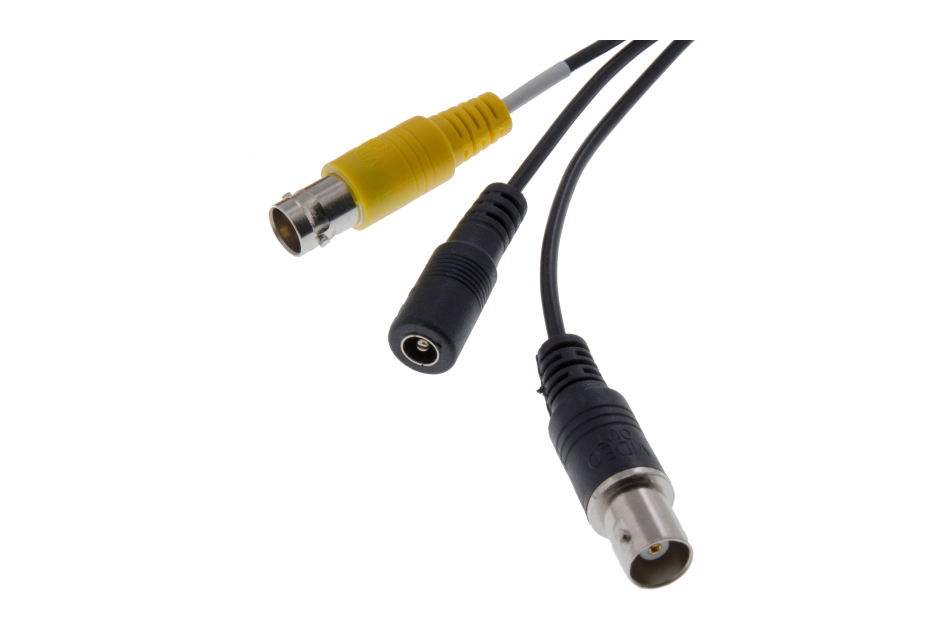

| External connections | voltage input,1x SDI Signal (BNC),1x HD/SD Analog Signal (BNC),connection cable approx.15cm |
| Flickerless function | Yes |
| Weight | 0.26 kg |
| Identify (250px/m) | 4 - 12 m |
| Camera shape | Minsters |
| Scope of delivery | Quick installation guide,drilling template,3x wall plugs with screws,video sub-output cable,flat and |
| Menu languages | German,English,French,Chinese,Japanese,Korean |
| Interface Protocols | UTC (HD Signal Format) |
| Signal-to-noise ratio | 50 dB |
| Signal Format | Composite (FBAS),HD-TVI @ 2MP,AHD @ 2MP |
| Day/night mode | Automatic,Day,Night,extern (Sensor) |
| Text overlay | available |
| Perceiving (25px/m) | 47 - 128 m |
| White balance | Automatic,Preset,Manual,AUTOext |
| Color (Housing) | white |
| Backlight compensation | Yes |
| Housing type | Inside |
| Housing material | Plastic |
| Power consumption | 6 W |
| Photosensitivity | 0.005Lux(Day mode),0.0005Lux(Night mode) |
| Low Speed Shutter | Yes |
| Mounting type | Wall,Ceiling |
| Lens Type | Varifocal (motorized) |
| Series | eneo KX-Serie,eneo Callisto Indoor |
| Control Interfaces | Coaxitron (HD Protocol) |
| Power supply | 12VDC |
| System | True Day&Night |
| Day/night switching | Switchable IR Filter (ICR) |
| Temperature Range (Operating) | -10°C ~ +50°C |
| Video Outputs | AHD,Composite (FBAS), |
| Wide Dynamic Range (WDR) | D-WDR |
| Zoom Factor (Digital) | 0 |
| Zoomfactor (optical) | 4 |
