eneo - NSUI-3008M0A
Delivery Time - look at hints
Gigabit Switch Industrie, Unmanaged, 8x PoE, 2xSFP, max 30W pro Port, -40°C~75°C, 44~57 VDC, ohne Netzteil
read more
€213.66
- Where else cheaper?
-
Ask? we would be happy to advise you!
+49 (0) 371 50 340 270
Product information "eneo - NSUI-3008M0A"
Gigabit Switch Industrie, Unmanaged, 8x PoE, 2xSFP, max 30W pro Port, -40°C~75°C, 44~57 VDC, ohne Netzteil
Manufacturer number: 242370
Main features
- 8 RJ45-Ports mit 10/100/1000 Mbps
- 2 Gigabit-SFP-Ports für Glasfaser-Uplink
- 8 PoE+ Ports, je bis zu 30W Leistung
- Gesamtleistung PoE: bis zu 222 Watt, je nach Anschluss
- Unterstützt IEEE 802.3af/at Standards
- Hoher EMV Schutzgrad
- Plug-and-Play, keine Konfiguration, einfach zu bedienen
- Redundante Spannungsversorgung 44-57VDC
- Robustes IP30 Gehäuse, DIN-RAIL oder Wandmontage
- Betriebstemperaturbereich: -40-75°C
- Netzteil nicht im Lieferumfang enthalten
Spezifications
| Number of PoE ports | 8 |
| Design | DIN Rail Module |

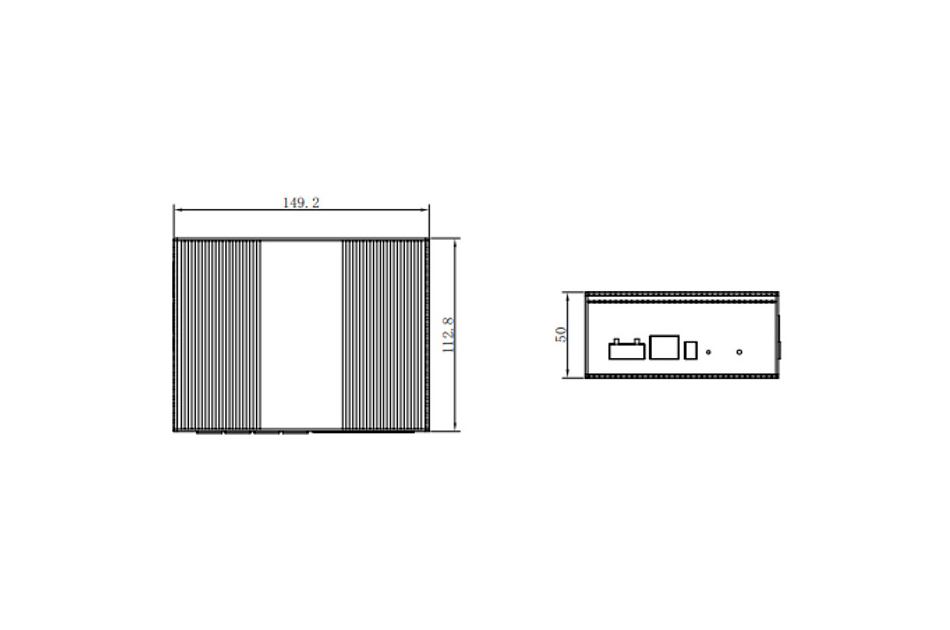

| Dimensions (WxHxD) (extended) | 50x149,2x122mm |
| Remark | No power supply included. A suitable,optionally available power supply must be used to achieve the f |
| ESD protection | IEC61000-4-2,IEC61000-4-5 |
| Weight | 1.168 kg |
| Scope of delivery | manual,1x DIN Rail |
| Eneo _netzwerkstandards | IEEE 802.3 10BaseT,IEEE 802.3u 100BaseTX,IEEE 802.3x Flow Control |
| Internal Switching Capacity (Gbit) | 20 Gbps |
| Internal Switching Capacity (MP per second) | 14.88 Mpps |
| Ethernet interface | 10Base-T,100Base-TX,1000Base-T |
| Type | Unmanaged |
| Power consumption | 18 W |
| Fan | No |
| Mounting type | Wall,DIN Rail |
| PoE Budget (Total) | 222 W |
| Power over Ethernet | IEEE 802.3af,IEEE 802.3at |
| Series | eneo Switch |
| Power supply | 44-57VDC |
| Temperature Range (Operating) | -40°C ~ +75°C,@ Luftfeuchtigkeit 10%-90% (nicht kondensierend) |
Product availability information:
The item is ordered especially for you, so it is not possible for return, withdrawal or cancellation. The following is non-binding and subject to storage and delivery information from our suppliers:
In stock: 94, Expectation: 0, Replacement time: 18 weeks (Last update: 21.09.2026) - subject to prior sale
